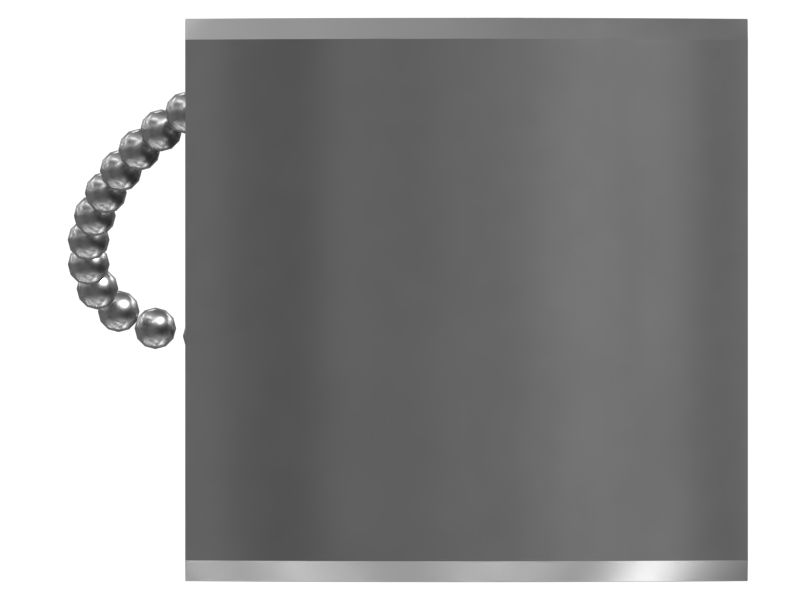

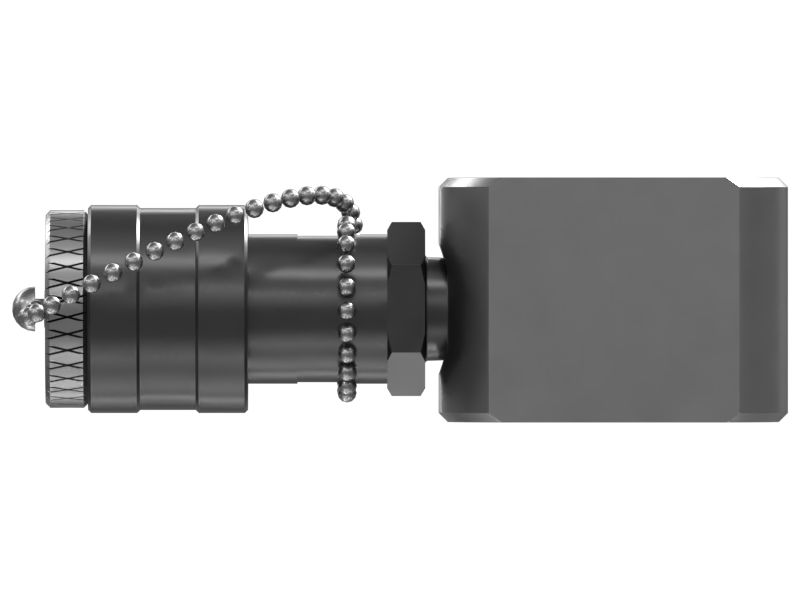

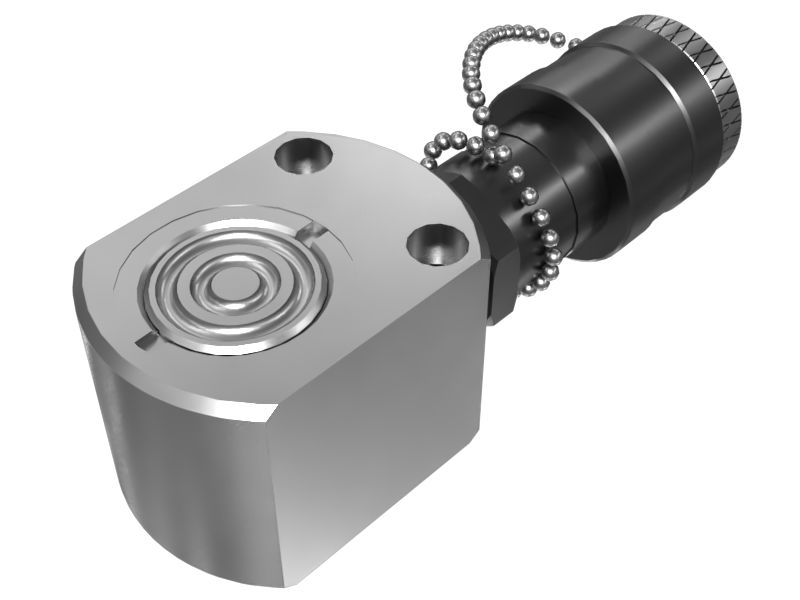

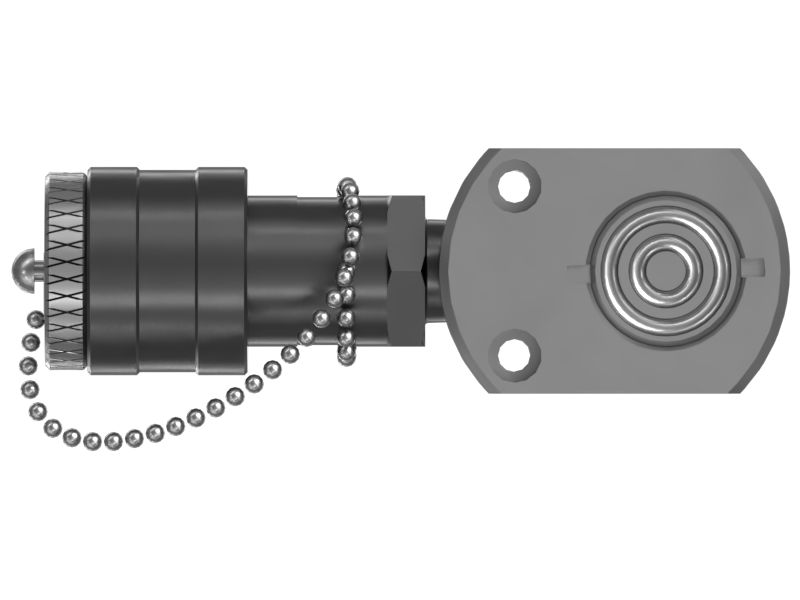

360-6955: Single Acting Hydraulic Pusher Cylinder

The Single Acting Hydraulic Pusher Cylinder is used to provide powerful pushing force in a single direction. This cylinder operates by using hydraulic pressure to extend the piston, which generates a pushing force. The single acting means the cylinder relies on hydraulic pressure for extension, while retraction occurs using a spring. It enhances the operational efficiency of hydraulic systems by delivering consistent force and enabling accurate control over pushing operations.

Attributes:
• Provides high pushing force in one direction.
• Capable of handling loads up to 4.51 metric tons.
• Features a 15.75 millimeters stroke length for accurate movement.

Applications:
The Single Acting Hydraulic Pusher Cylinder is used to apply pushing force in one direction for tasks such as material handling and component positioning.

• Weight (kg): 1

• Weight (lb): 2.205

• Bore Diameter (mm): 28.7

• Bore Diameter (in): 1.13

• Working Pressure (kPa): 68900

• Working Pressure (psi): 9993.1

• Overall Height (mm): 132.33

• Overall Height (in): 5.21

• Overall Width (mm): 41.15

• Overall Width (in): 1.62

• Internal Thread: 3/8"-18 NPTF

• Material: Carbon Steel
