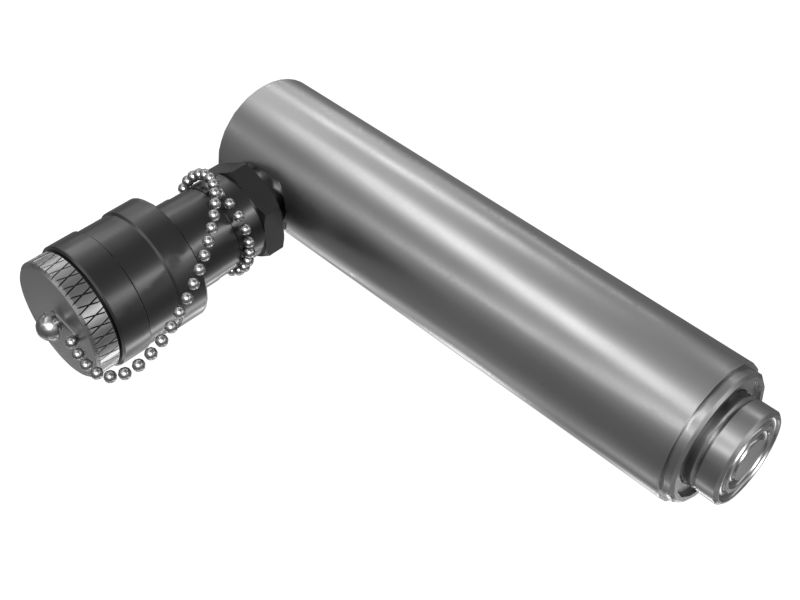

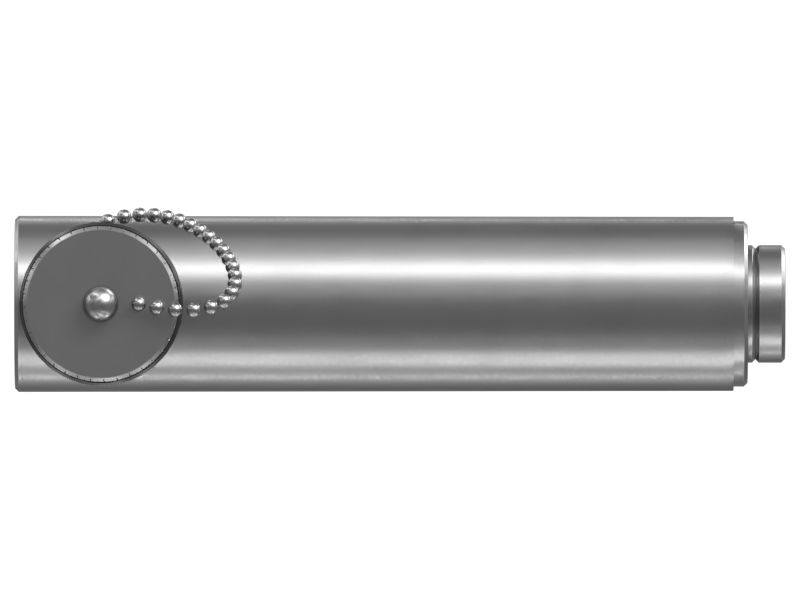

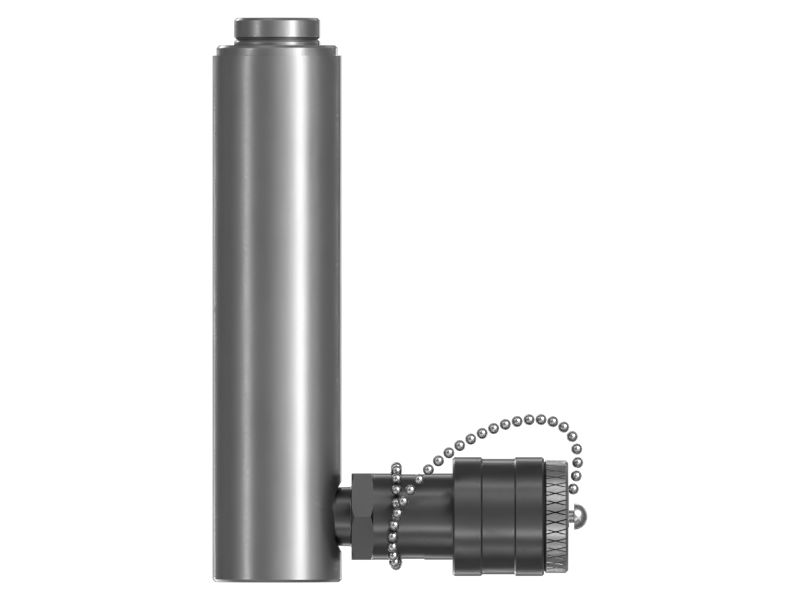

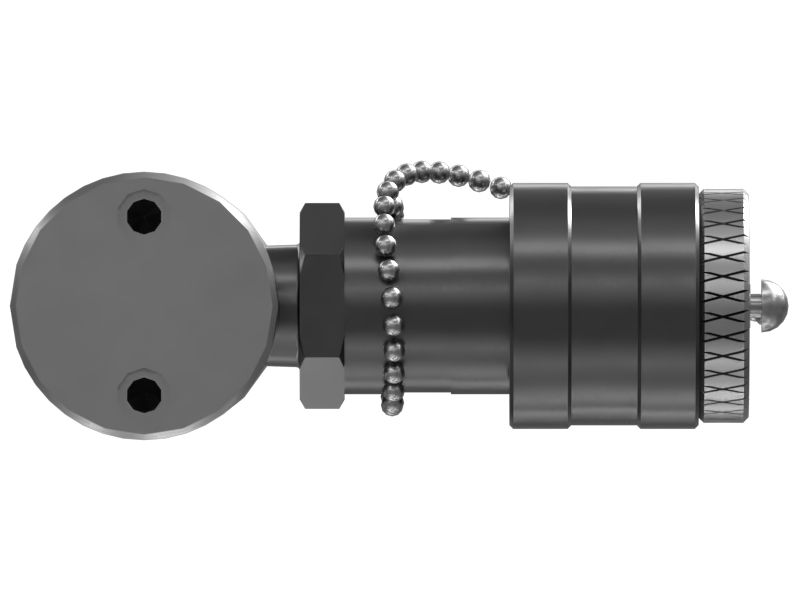

360-6953: 4.51 Metric Ton Lift Hydraulic Cylinder

The Lift Hydraulic Cylinder is an equipment part, used to facilitate the lifting and lowering of substantial loads. As a part of the hydraulic system, it operates by converting hydraulic fluid pressure into linear motion, thereby enabling the vertical movement necessary for lifting tasks.

Attributes:
• Facilitates powerful lifting and lowering operations.
• Withstands high-pressure hydraulic loads.
• Enhances operational safety and stability.

Applications:
The Lift Hydraulic Cylinder is installed in the lifting mechanisms of the equipment for power train oil cooler maintenance. Provides controlled lifting and lowering capabilities, enabling efficient handling of loads.

• Bore Diameter (mm): 28.7

• Bore Diameter (in): 1.13

• Overall Length (mm): 166.88

• Overall Length (in): 6.57

• Overall Height (mm): 112.01

• Overall Height (in): 4.41

• Thread: 3/8"-18 NPTF

• Internal Thread: 1/4"-20, 1-1/2"-16, 3/4"-16

• Color: Medium Gloss Black

• Weight (kg): 1.5

• Weight (lb): 3.31

• Material: Steel,Carbon Steel
