356-0684: КРОНШТЕЙН В СБОРЕ

Description:

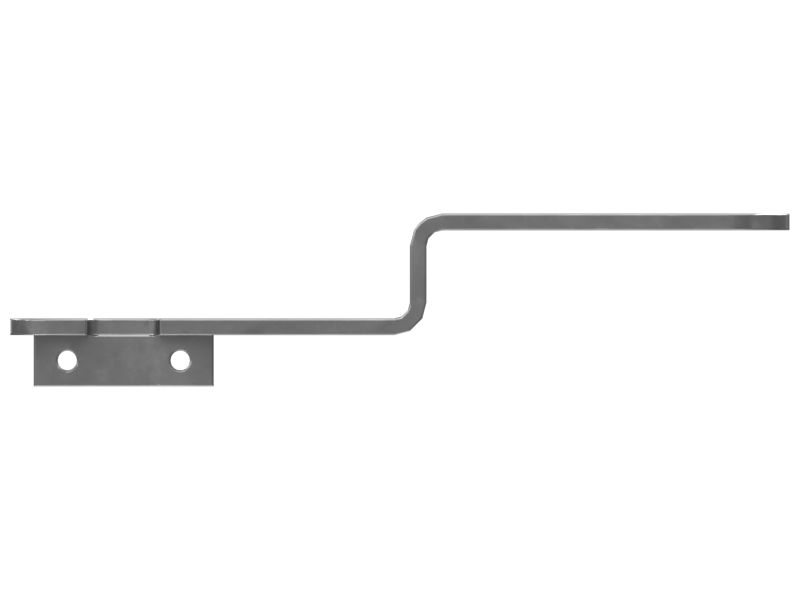

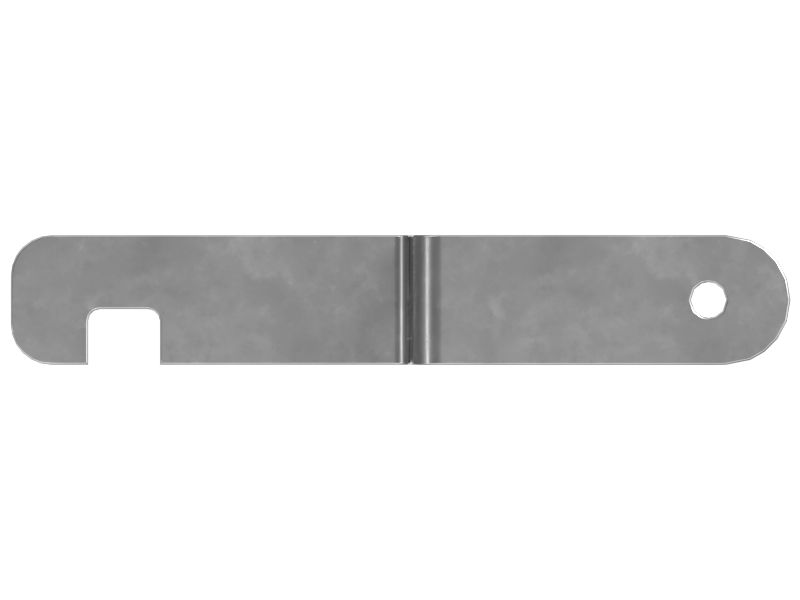

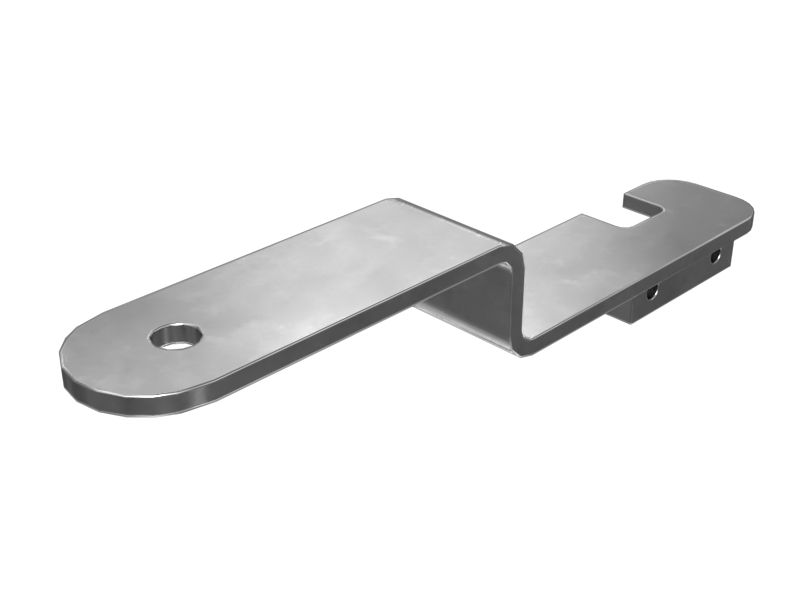

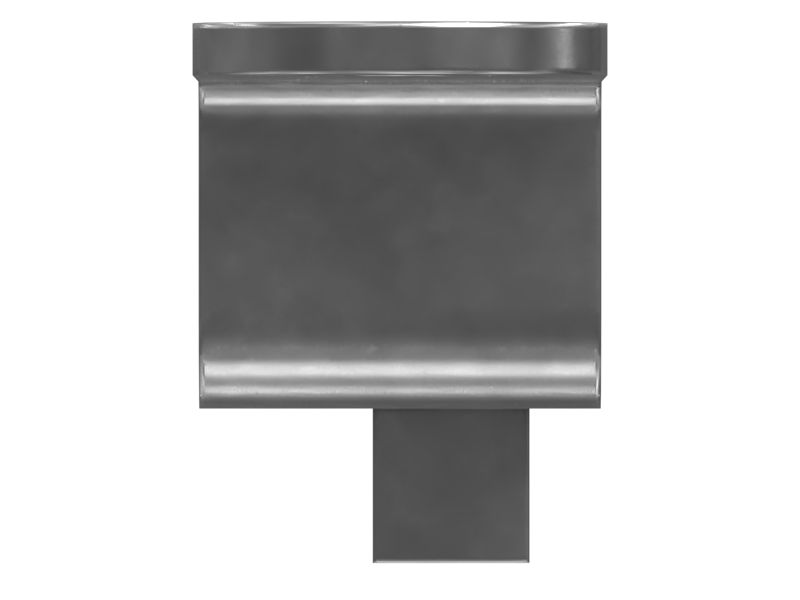

The Tilt Arm Position Sensor Mount Bracket is designed to securely hold and position apart. This Bracket helps to ensure accurate and reliable measurement of Tilt angles or positions by providing a stable and adjustable mounting point for the Sensor. It enables precise monitoring and control of tilting movements in a range of systems and equipment. The assembly consists of parts like blocks and Brackets.

Attributes:
• Designed to provide stability and support to the sensor during Tilting movements
• Allows for secure attachment to the equipment or structure
• Provide mounting holes to fit the fastener of size M8

Applications:
The Tilt Arm Position Sensor Mount Bracket is used to mount the part to make the part take accurate measurements and control of Tilt angles or positions, enabling precise monitoring and reliable operation this is mostly used in Cat 924K, 926, 926M, 930, 930K, 930M, 938, 938K and 938M Wheel Loaders.

• Material: Steel,Carbon Steel,Alloy Steel,Alloy Zinc

• Overall Length (in): 7.6

• Overall Length (mm): 193

• Overall Width (in): 1.26

• Overall Width (mm): 32

• Thickness (in): 0.16

• Thickness (mm): 4

• Weight (kg): 0.25

• Weight (lb): 0.55
