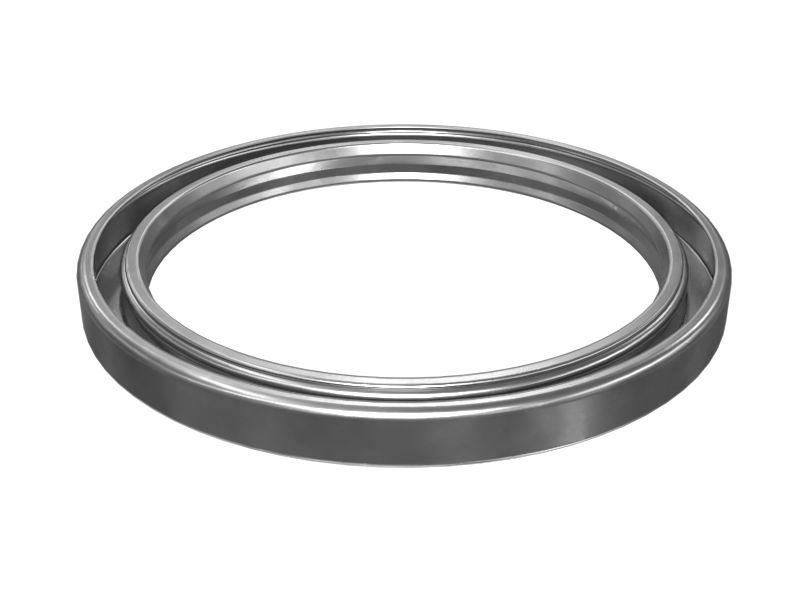

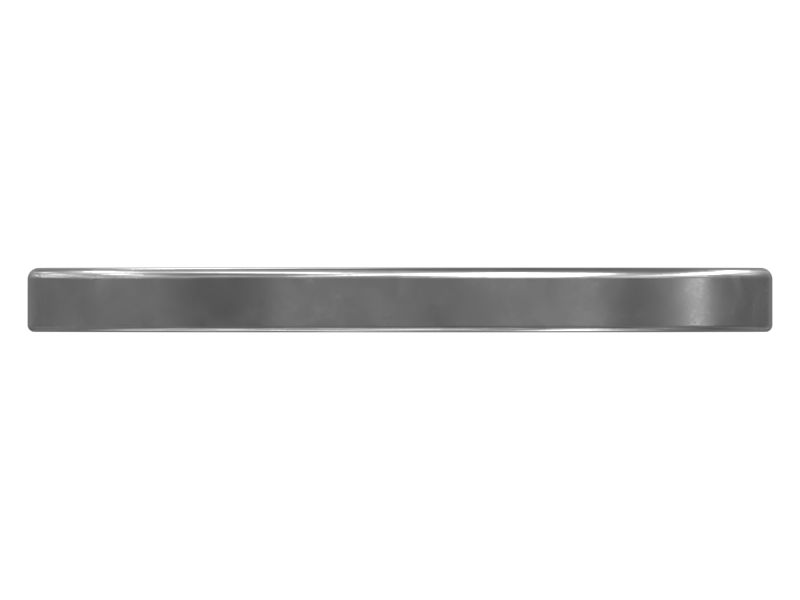

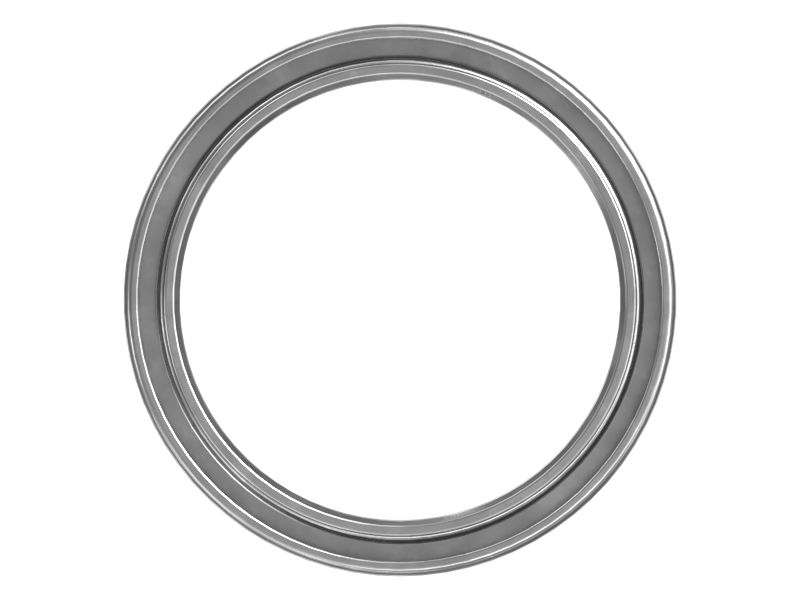

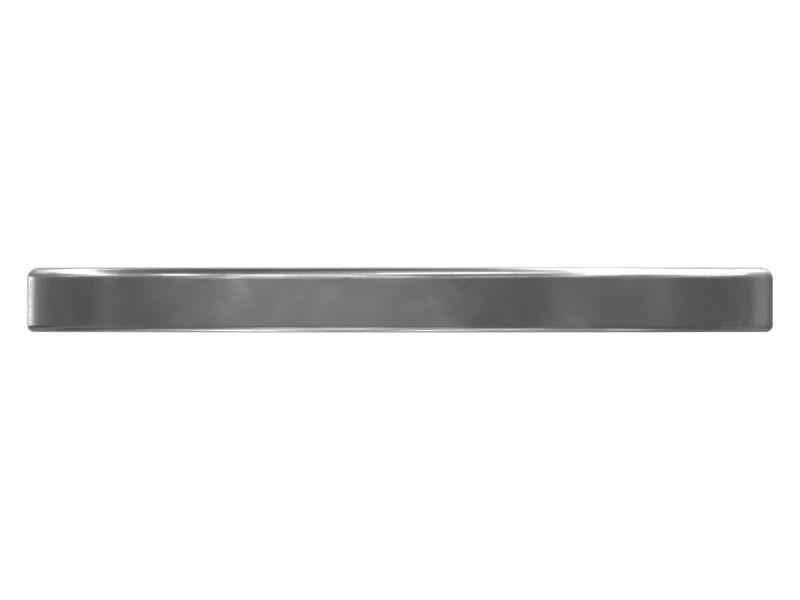

355-7340: МАНЖЕТНОЕ УПЛОТНЕНИЕ

Description:
A Lip-type seal is a sealing component designed to prevent the leakage of fluids, such as oil or hydraulic fluids. It is mounted in a housing or groove that surrounds the articulating joint, creating a barrier between the moving parts of the hitch. It is designed to provide a tight and effective seal when the hitch articulates. As the hitch moves, the lip flexes and conforms to the shape of the joint, maintaining contact with the rotating or sliding surfaces. This flexibility allows the seal to accommodate the movement of the hitch while preventing the escape of fluids.

Attributes:
• Designed to withstand high pressure.
• Designed to withstand high and low temperatures.
• Withstand the abrasive nature of hydraulic fluids and resist wear over time.

Applications:
A Lip-type seal protects the internal components of the hitch from damage and ensures smooth operation and longevity. It is extensively used in Cat 2470C, 2570C, 2570D, 2670C, 2670D, 2764C, 2864C, 553C, 563C, 563D, 573C, 573D, 576C and 586C Tree Harvester, CM260 Underground Mining, CW16 Compactor, PM3, PM310, PM312 and PM313 Paving Equipment.

• Inner Diameter (in): 3.5

• Inner Diameter (mm): 88.9

• Material: Rubber,Nitrile / NBR / HNBR / XNBR Rubber,Plastic

• Outer Diameter (in): 4.38

• Outer Diameter (mm): 111.28

• Weight (kg): 0.07

• Weight (lb): 0.15

• Width (in): 0.37

• Width (mm): 9.5
