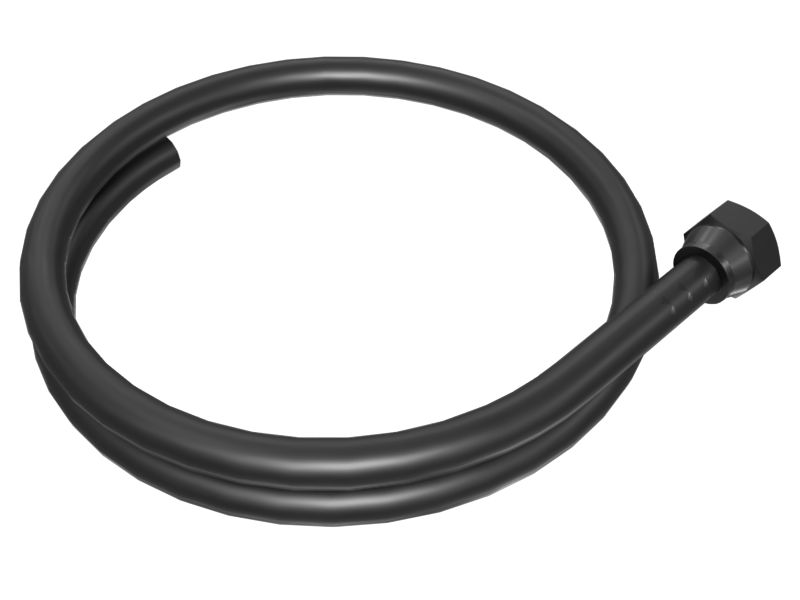

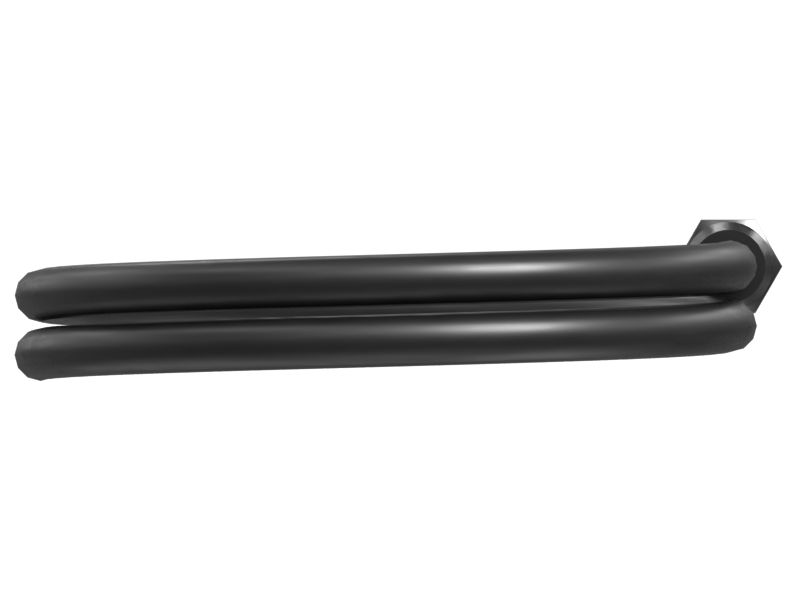

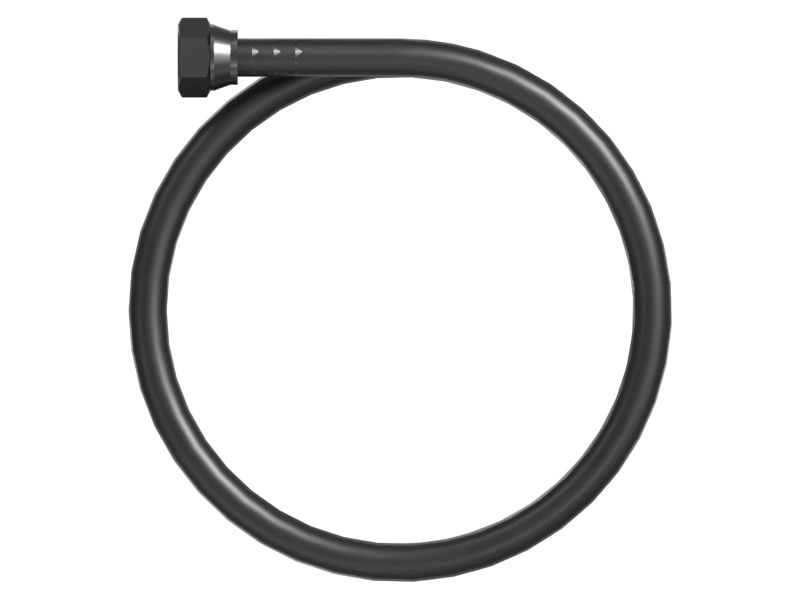

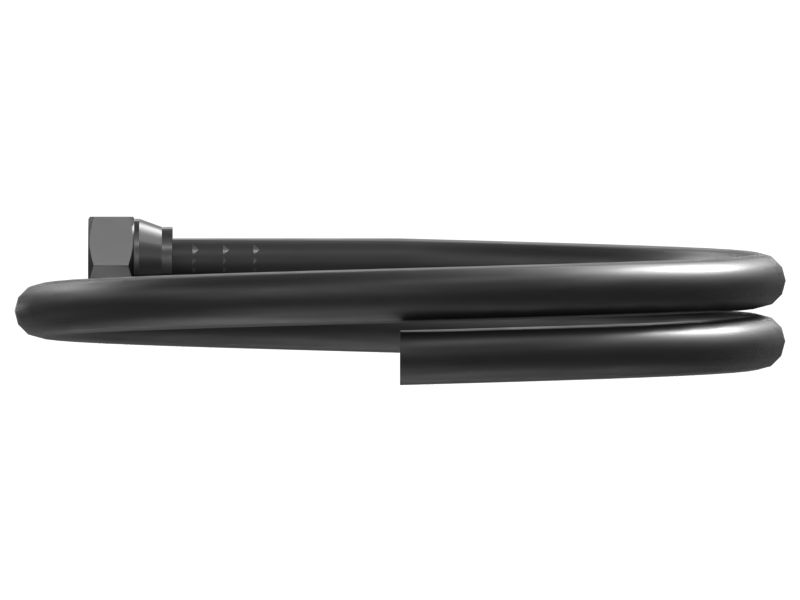

354-8301: Pump Drain Hose

The Pump Drain Hose manages and measures fluid flow in fuel systems, particularly in engine maintenance and diagnostics. It is used to connect to the cylinder head fuel return line fitting, directing the fluid and fuel from the pump to a graduated cylinder for accurate measurement. The graduated cylinder provides a clear and accurate measurement of the volume of fluid being returned for assessing pump performance, fuel system efficiency, and diagnosing potential issues.

Attributes:
• Capable of handling the pressure generated by the pump.
• Provides a tight, leak-proof connection to the return line fitting.
• Smooth inner surface to reduce resistance and ensure efficient fluid flow.
• Ensures consistent flow rates for accurate measurement and analysis.

Applications:
The Pump Drain Hose connects the pump to a graduated cylinder, allowing them to measure the volume of fluid returned from the cylinder head fuel return line fitting helps in evaluating pump efficiency, diagnosing fuel system issues, and ensuring proper fluid management.

• Weight (kg): 0.113

• Weight (lb): 0.249

• Length (mm): 609.6

• Length (in): 24

• Inner Diameter (mm): 9.53

• Inner Diameter (in): 0.375

• Outer Diameter (mm): 16

• Outer Diameter (in): 0.63

• Material: High Pressure Hose
