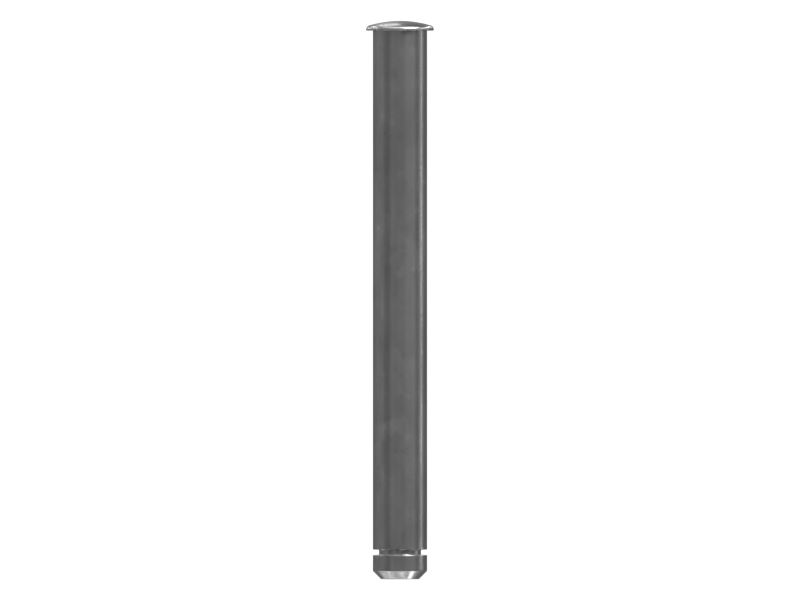

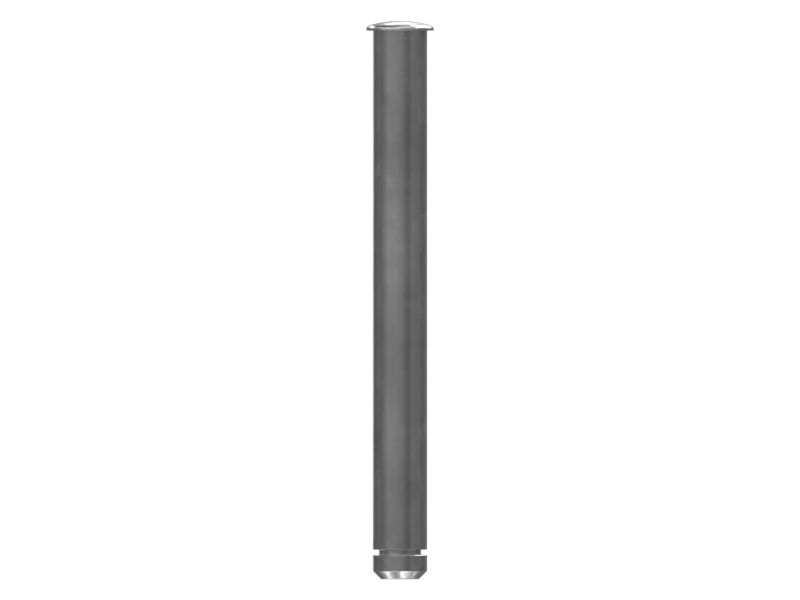

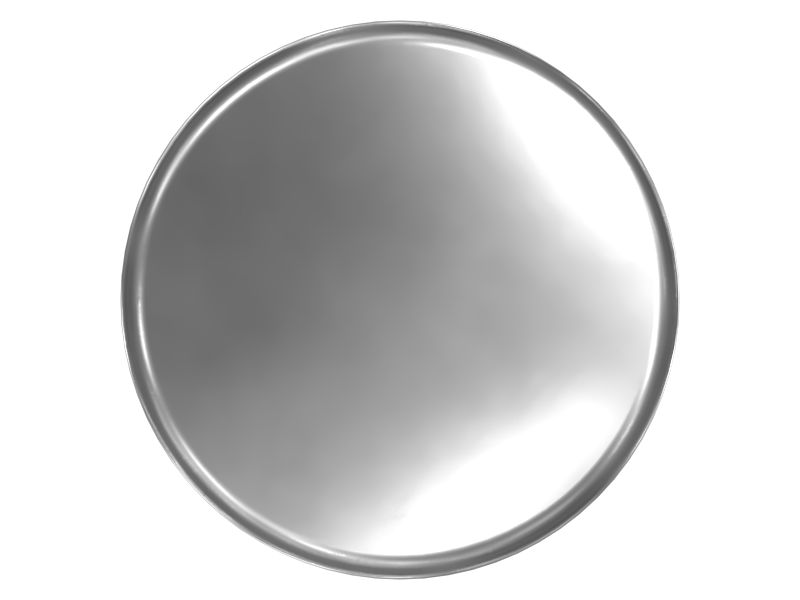

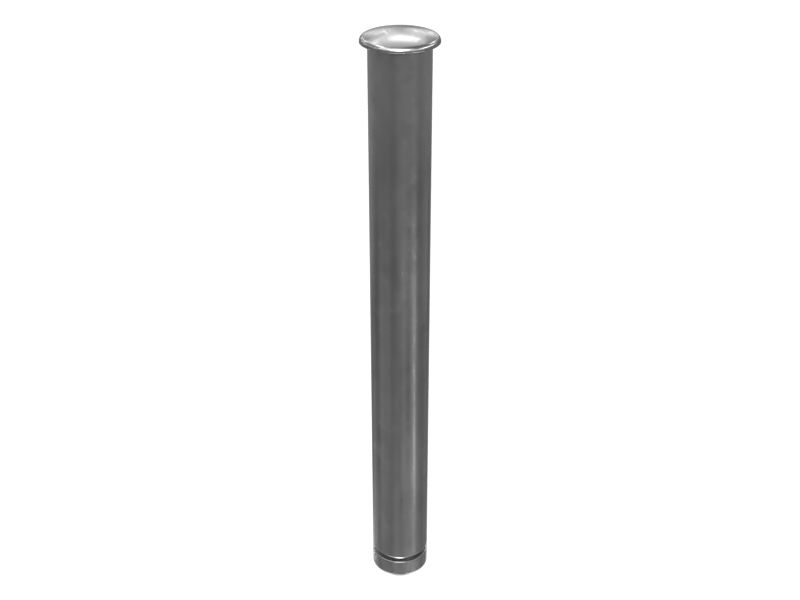

354-6358: ПАЛЕЦ ШАРНИРА

Description:
A Hinge Pin is a cylindrical metal rod or pin that serves as a pivot point in a hinge mechanism. It is used to connect two objects, such as a door and its frame, allowing them to rotate or swing relative to each other. The hinge pin consists of a smooth and straight rod with a uniform diameter. It is inserted through the hinge knuckles or brackets attached to the objects being hinged. The pin provides a stable and controlled axis of rotation, allowing the objects to open and close smoothly.

Attributes:
• Designed to withstand the forces and stresses.
• Designed with security features to prevent unauthorized removal or tampering.
• Provide support and bear the weight or load of the connected objects.

Application:
A Hinge Pin provides the axis of rotation, allowing the cabin vent window to open and close smoothly while maintaining a secure connection between the window frame and the window itself. They are mainly used in Cat CCS7, CCS9, CP11, CP12, CP13, CP14, CP16, CP17, CP44B, CP54B, CP56B, CP68B, CP7, CP74B, CP76B, CS10, CS11, CS12, CS13, CS14, CS16, CS17, CS19, CS20, CS44B, CS54B, CS56B, CS64B, CS66B, CS68B, CS7, CS74B, CS76B, CS78B, CS79B and CW34 Compactor, RM400, RM600, and RM800 Paving Equipment.

• Diameter (in): 0.49

• Diameter (mm): 12.5

• Material: Stainless Steel

• Overall Length (in): 4.08

• Overall Length (mm): 103.7

• Weight (kg): 0.06

• Weight (lb): 0.14
