353-5064: КРОНШТЕЙН В СБОРЕ

Description:

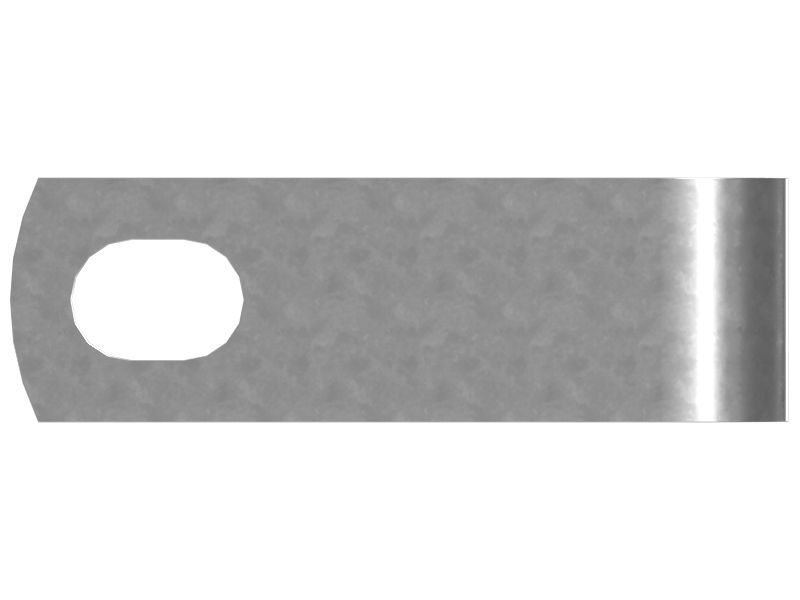

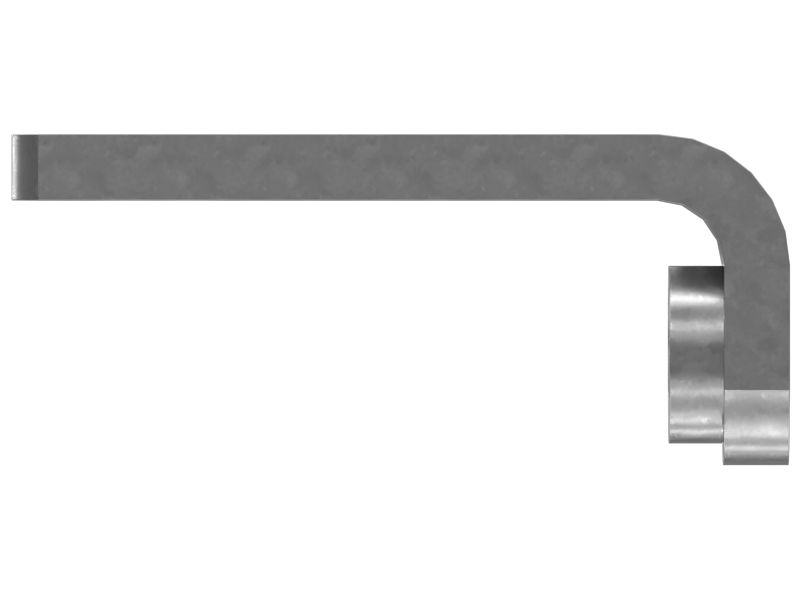

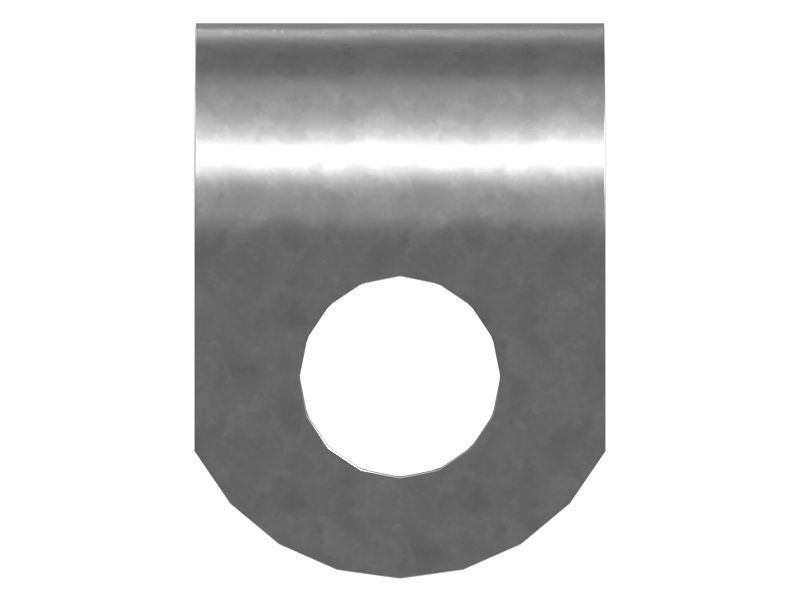

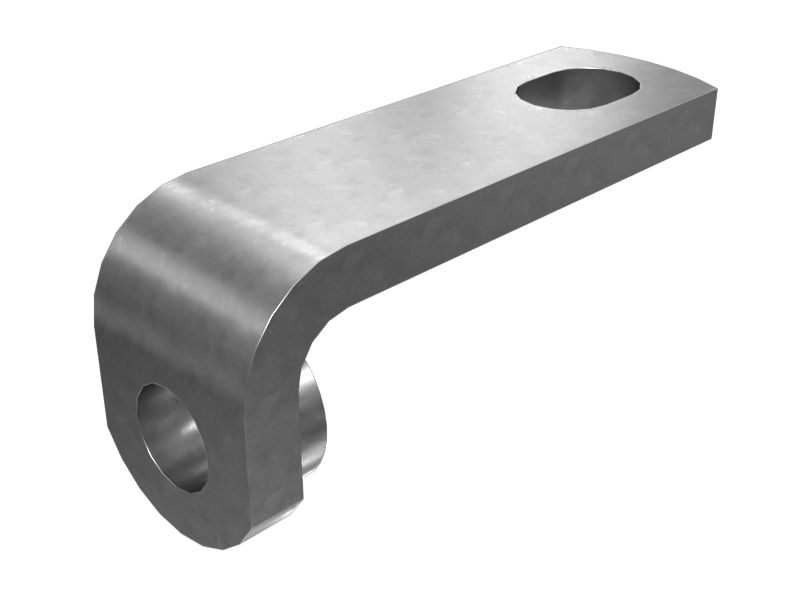

An Angled Bracket is designed to provide structural support and secure mounting for the Engine Oil Cooler unit. The L-shaped bracket is specifically designed to fit the dimensions and requirements of the Engine Oil Cooler. The Bracket is designed to provide stability and minimize the effects of engine vibrations and external disturbances. The assembly consists of parts like Boss and Clip

Attributes:
• Provide mounting holes of diameter 3/8"
• Allows for proper attachment and positioning of the part
• Manufactured to precise specifications and are built for durability and reliability

Applications:
An Angled Bracket is used in the Water Lines to mount the Oil Cooler between the Lines, this is mostly used in Cat 657 Wheel Tractor Scrapers, 986, 986K, and 988 Wheel Loader, C15 Engine (Piston), C15 Engine-General Platform, D8 and D8T Track Type Tractor, PL72, PL83 and PL87 Pipelayer.

• Material: Steel,Alloy Steel,Carbon Steel

• Overall Height (in): 0.88

• Overall Height (mm): 22.4

• Overall Length (in): 2.81

• Overall Length (mm): 71.5

• Overall Width (in): 1.2

• Overall Width (mm): 30.4

• Thickness (in): 0.24

• Thickness (mm): 6

• Weight (kg): 0.08

• Weight (lb): 0.18
