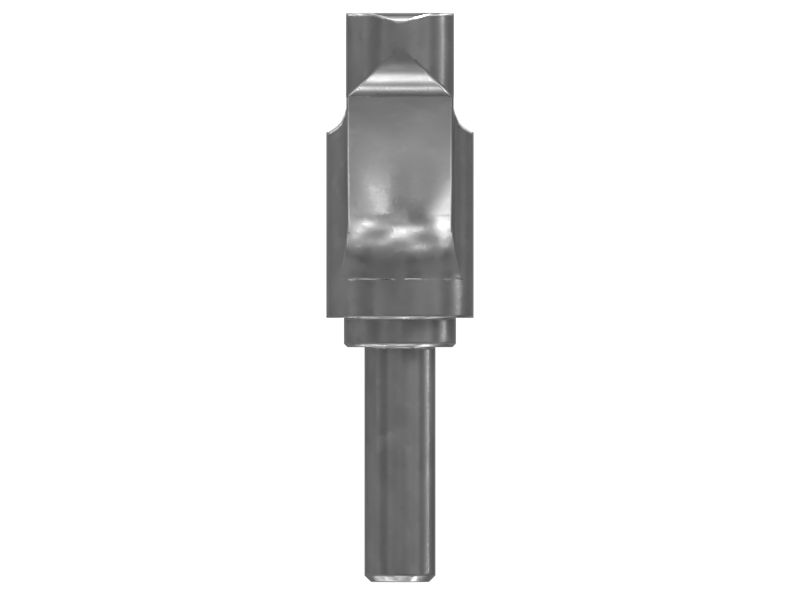

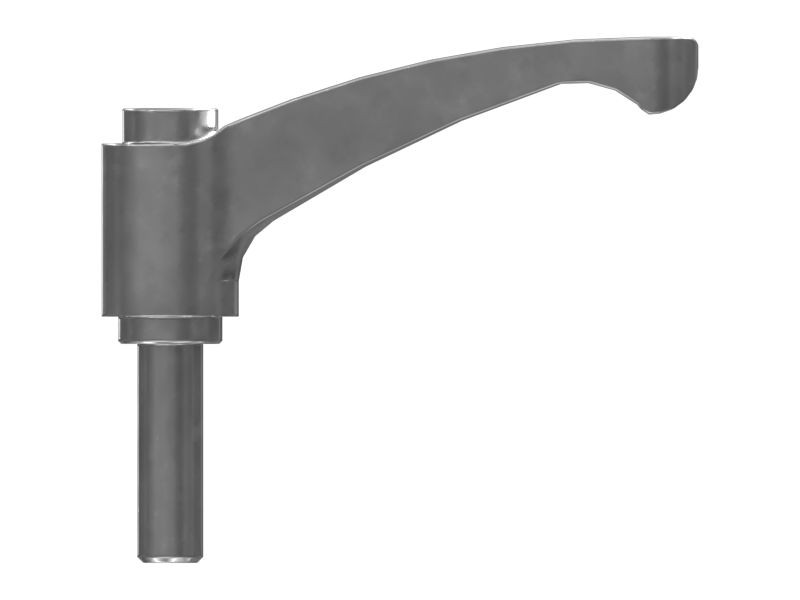

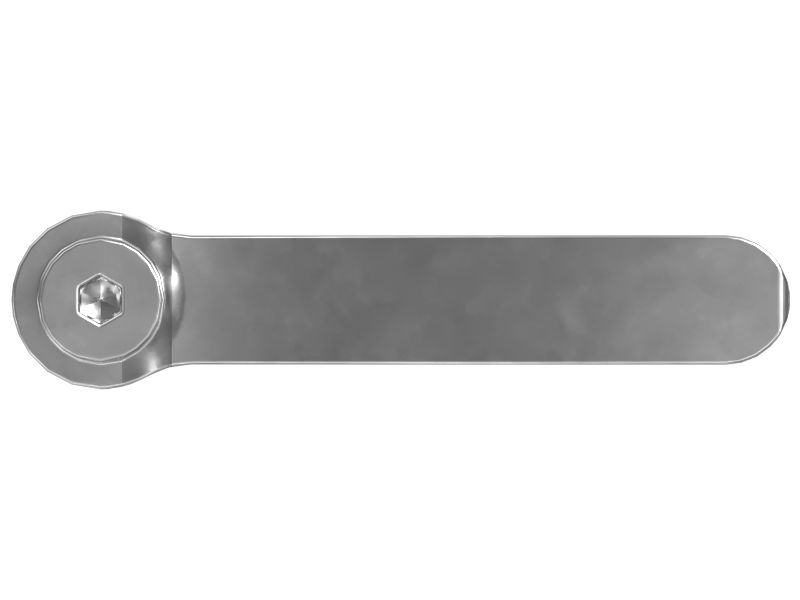

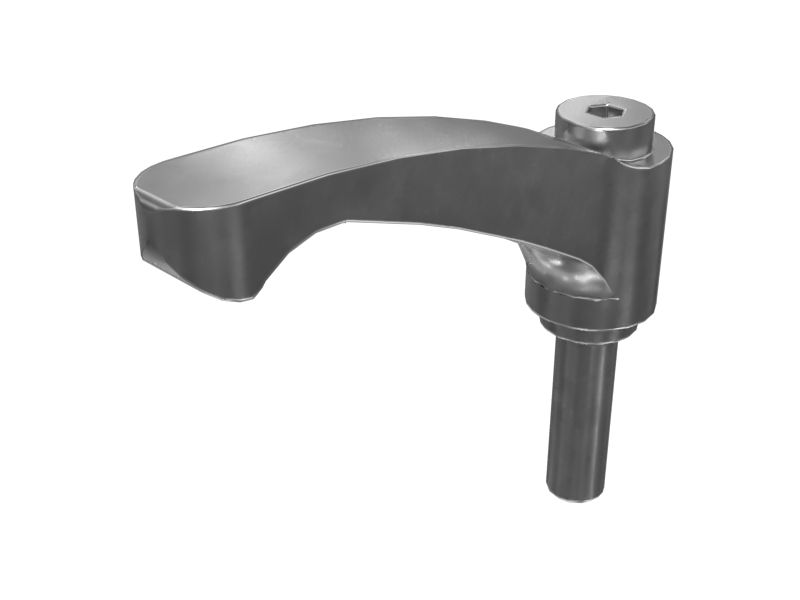

349-3200: РЫЧАГ ЗАЖИМНОЙ

The Lever Clamp consists of a lever mechanism combined with a clamping mechanism. The adjustable handle lever allows you to lift and position the screen guard onto the screen accurately. This can include a threaded screw or a quick-release mechanism that allows for precise adjustment of the desired clamping pressure. The threaded insert is connected to the lever via the serration and can be released by pulling. By pulling the lever, the serrations are disengaged. The handle can be turned in any direction and the threaded insert can be screwed in or out by turning the locking screw. When the lever is released, the serration re-engages automatically because of the spring tension.

Attributes:
• Designed to withstand the forces exerted during clamping without bending, breaking
• Lever clamp is designed for a comfortable grip and easy operation
• Designed for repetitive fixing or clamping
• Thread size Metric 12 with 1.75 Pitch

Application:
The Lever Clamp is located in the protection screen providing a mechanism to release the latch or bolt that keeps the door closed.

• Material: Carbon Steel,Alloy Zinc
