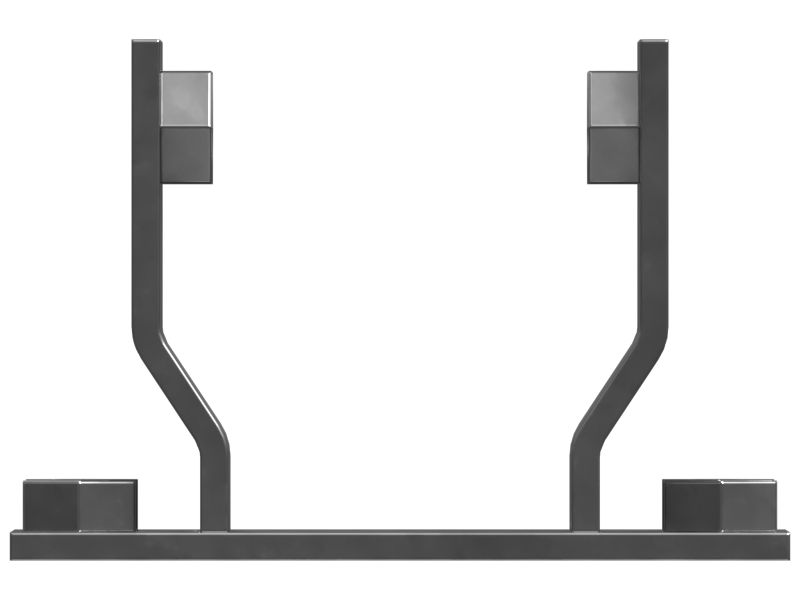

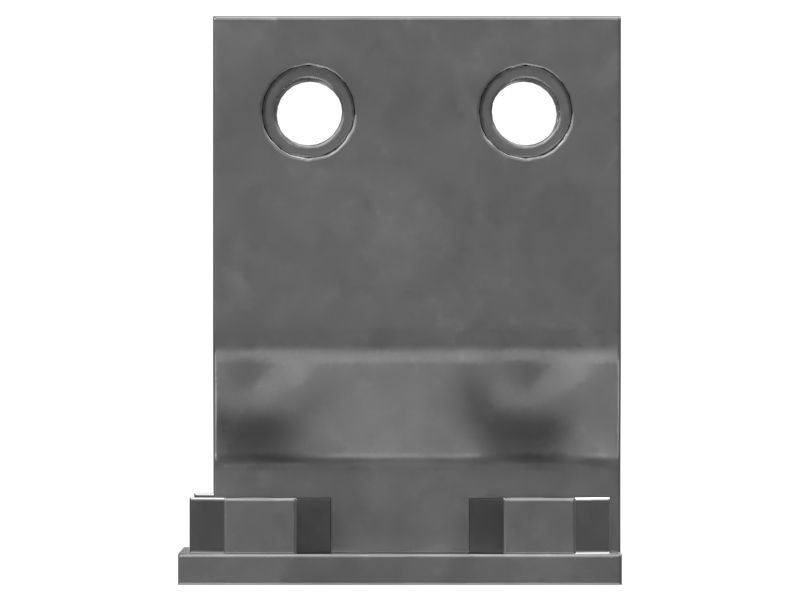

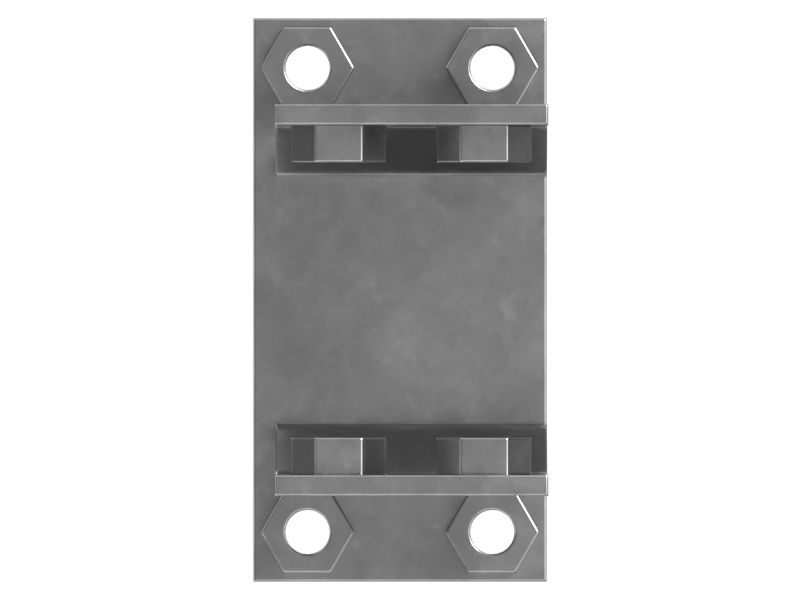

346-9742: КРОНШТЕЙН В СБОРЕ

Description:
The Supporting Bracket is designed to hold and support Hoses or Lines that are responsible for fluid or gas transfer from the Angle and Tilt Cylinder. The Bracket is designed to provide stability, flexibility, and reliable mounting options for maintaining the integrity of the Hose or Line connections. It has holes, or slots, that align with corresponding attachment points, allowing for secure fastening using screws, bolts, or other appropriate hardware.

Attributes:
• Provide mounting holes of diameter 13.8mm
• Allow for proper positioning and minimizing stress or strain

Applications:
The Supporting Bracket is used for securing the Angle and Tilt part Lines and maintaining hose stability, proper positioning, and protection during operations, this is mostly used in Cat D1, D2, D3, D3K, D3K2, D4K, D4K2, D5K, and D5K2 Track Type Tractors.

• Overall Height (in): 3.28

• Overall Height (mm): 83.5

• Overall Length (in): 4.92

• Overall Length (mm): 125

• Overall Width (in): 2.56

• Overall Width (mm): 65

• Thickness (in): 0.18

• Thickness (mm): 4.5

• Weight (kg): 0.71

• Weight (lb): 1.57

• Material: Alloy Mixed
