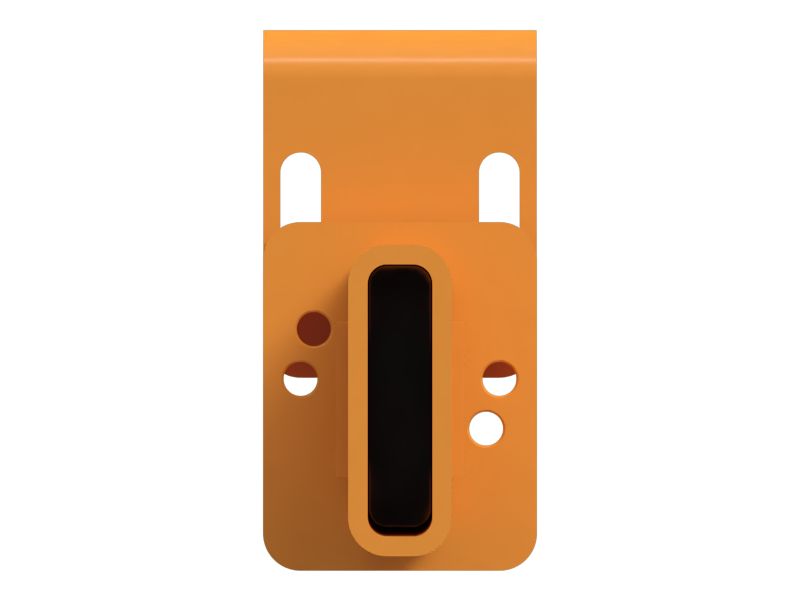

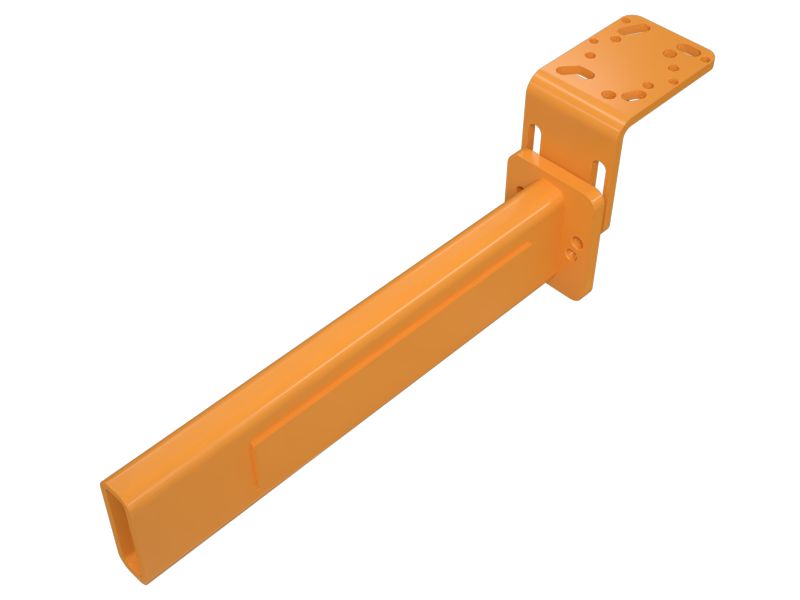

346-6598: 12mm Thickness Hydraulic Piston Pump Adapter

The Hydraulic Piston Pump Adapter streamlines the process of removing and installing hydraulic piston pumps. This component provides a secure and stable connection between the pump and lifting equipment, allowing for accurate maneuvering, and positioning. By using the lift bracket adapter, operators efficiently handle the pump during maintenance procedures, reducing the risk of damage to both the pump and surrounding components.

Attributes:
• Ensures a stable and firm connection between the pump and lift bracket.
• Supports the weight of piston pumps without compromising stability.
• Holds the pump firmly in place during the lifting process to prevent slippage.

Applications:
The Hydraulic Piston Pump Adapter is used to connect the pump to a lifting mechanism, enabling the safe and controlled removal and installation of the pump to facilitate easier access to the pump for maintenance tasks.

• Height (mm): 177.8

• Height (in): 7

• Length (mm): 203.2

• Length (in): 8

• Width (mm): 139.7

• Width (in): 5.5

• Thickness (mm): 12

• Thickness (in): 0.472

• Hole Size (mm): 12, 14, 21

• Hole Size (in): 0.472, 0.551, 0.827

• Weight (kg): 29.19

• Weight (lb): 64.353

• Material: Alloy Steel,Structural Steel,Carbon Steel
