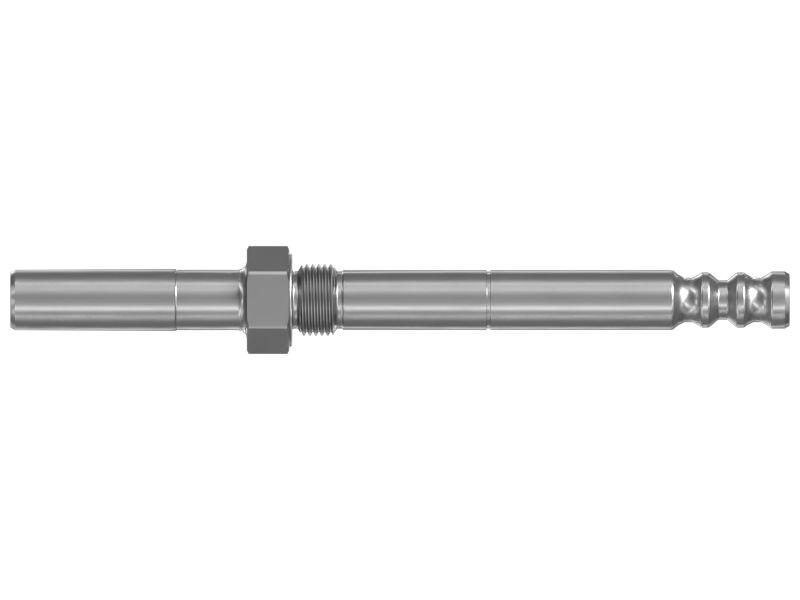

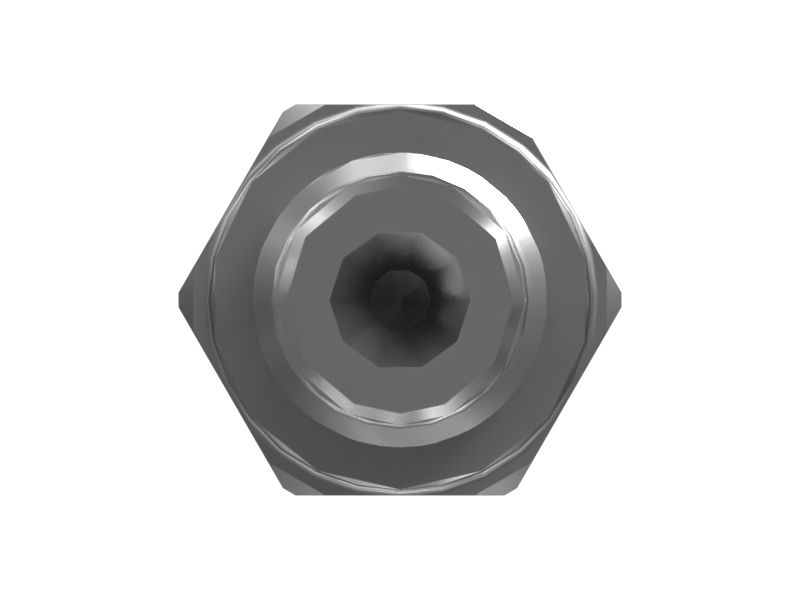

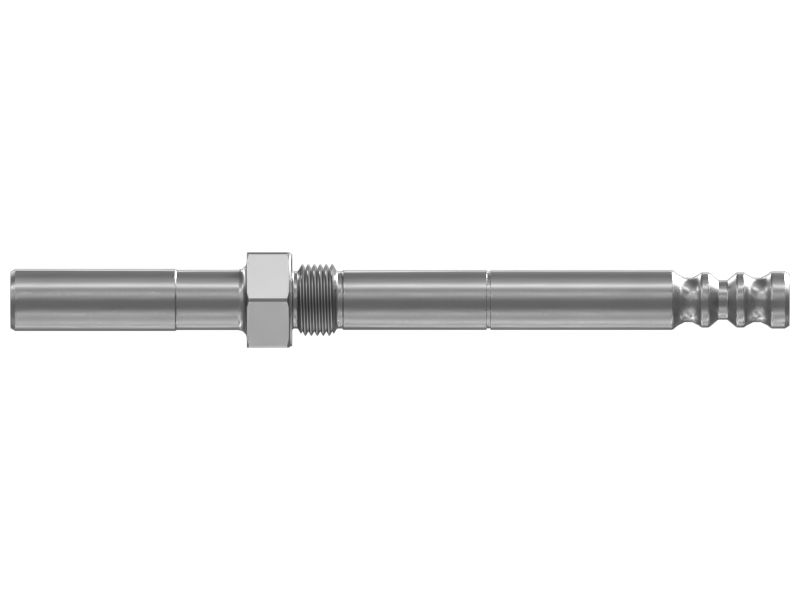

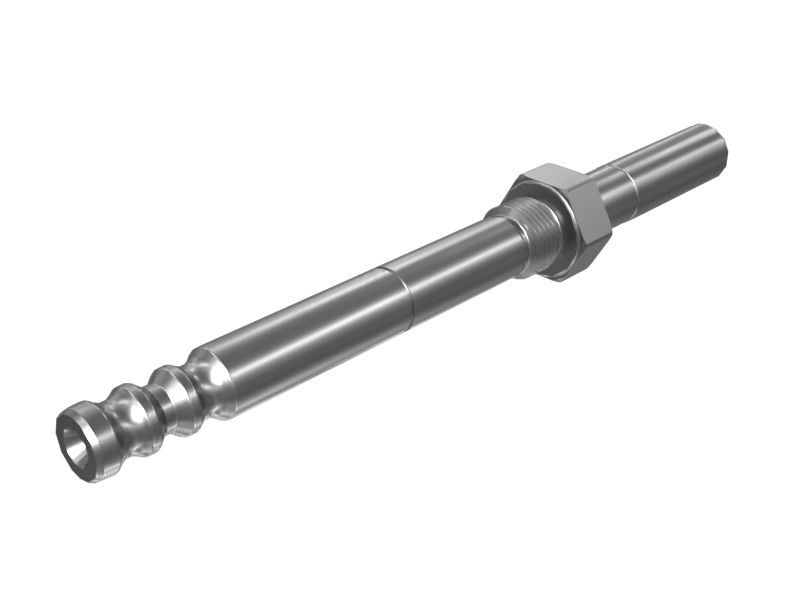

346-6292: РЕЙКА ВАЛА

The Shaft Rail for a Synchronizer Fork is a component used in transmission systems. It plays a crucial role in the smooth and precise operation of gear shifting. The rail shaft is a long, slender metal shaft with precise dimensions and a smooth surface finish. It usually has a cylindrical or slightly rectangular shape. The primary purpose of the rail shaft is to guide the synchronizer fork's movement accurately. As the fork shifts gears, the fork slides on the rail shaft, which helps to align the gear with the corresponding shaft.

Attributes:
• Brinell hardness 3.1-3.3
• Guides movement of the synchronizer fork
• Facilitates smooth gear shifting
• Proper lubrication for smooth operation

Applications:
The Shaft Rail is mounted on the synchronizer fork to facilitate smooth and precise gear shifting in a transmission.

• Material Description: Steel

• Diameter (mm): 20 (Ref)

• Hex Size (mm): 31.75

• Length (mm): 260.6

• Diameter (in): 0.787 (Ref)

• Hex Size (in): 1.250

• Length (in): 10.259

• Material: Low Alloy Steel
