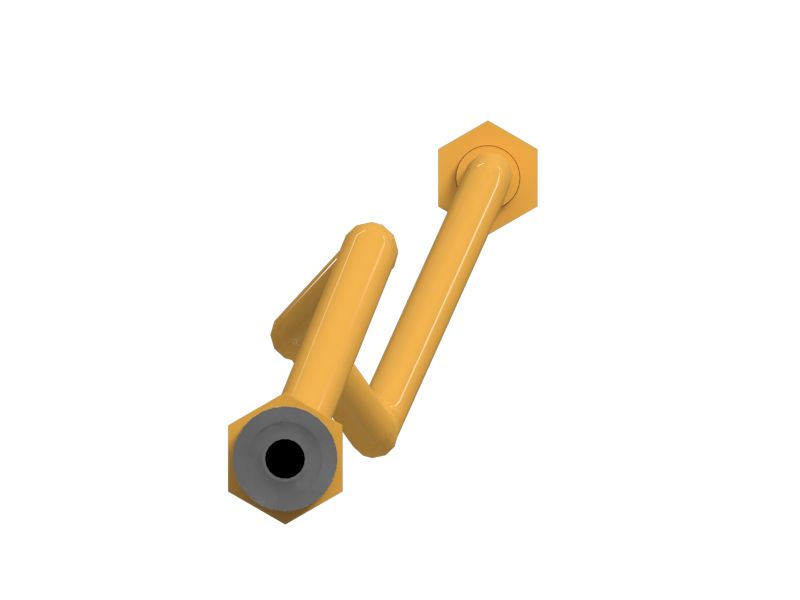

345-8514: ТРУБКА В СБОРЕ

The Apron Hooper Hydraulic Lines Tube Assembly consists of a tubing assembly with an O Ring Face Seal Nut and Sleeve Connector. The assembly facilitates the controlled flow of hydraulic fluid, allowing for precise movement and control of the apron hopper system in asphalt pavers. The hydraulic lines enable the transfer of hydraulic pressure, which controls the raising, lowering, and material flow of the apron hopper.

Attributes:
• Withstands relief pressure of 14000 kPa
• Helps to minimize the risk of hydraulic fluid leakage, which can lead to decreased system efficiency and safety hazards

Applications:
The Apron Hooper Hydraulic Lines Tube Assembly provides a conduit for hydraulic fluid in the asphalt paver's apron hopper system. It enables the precise control of the apron system, allowing for the adjustable and regulated distribution of asphalt material onto the surface.

• Outer Diameter (mm): 10

• Outer Diameter (in): 0.37

• Approximate Overall Length (mm): 1378

• Material: STEEL,Carbon Steel,Alloy Mixed
