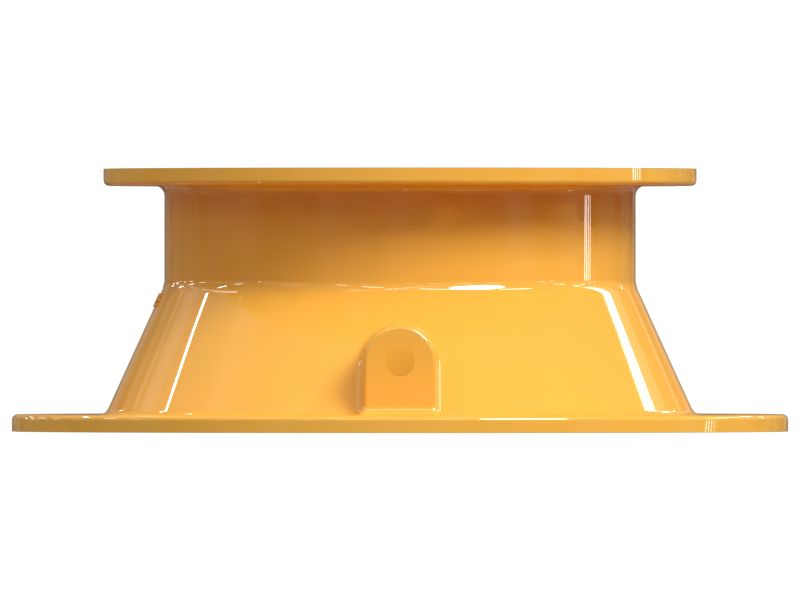

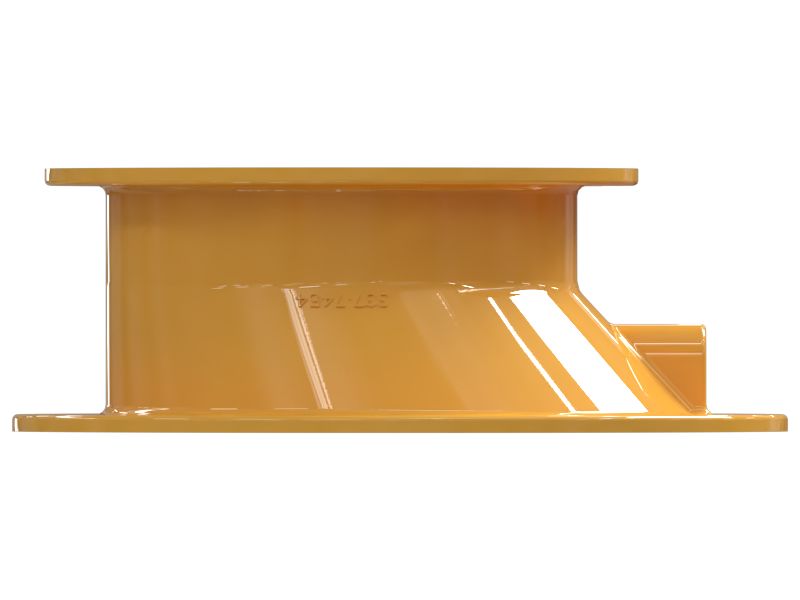

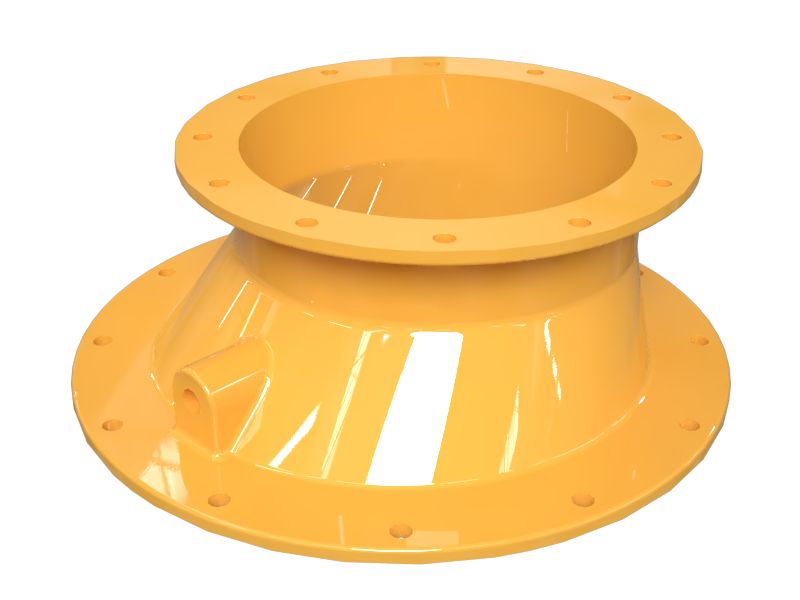

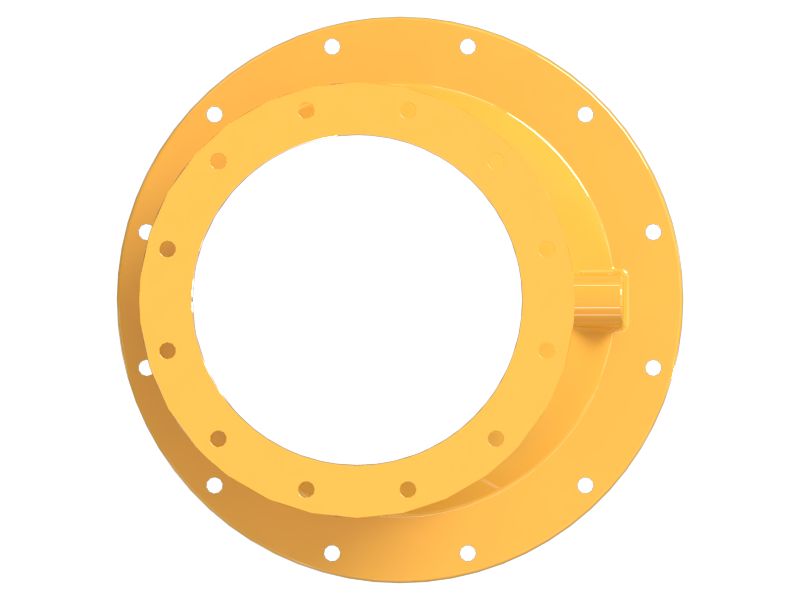

337-7454: ПЕРЕХОДНИК

The raised-face flanged elbow adapter is a type of elbow adapter that has a flange on one or both ends. The flange is a flat, circular piece of material with holes around the circumference that allows it to be bolted to another flanged component in the piping or tubing system. The flanged elbow adapter is used to connect two pipes or tubes at an angle while providing a secure and leak-proof connection. The flange provides a large surface area for the bolts to attach to, ensuring that the joint is strong and stable. The most common flange types are raised face (RF) and flat face (FF). The RF flange has a small ridge around the perimeter that allows for a seal to be placed between the flanges. The FF flange is flat and does not require a seal.

Attributes:
• Pressure rating of the flange determines the height of the raised face.
• RF flange concentrates more pressure on a smaller gasket area and thereby increases the pressure containment capability of the joint.

Applications:
The raised face flanged elbow adapter is commonly used in high-pressure or high-temperature applications where a secure connection is critical.

• Material: Gray (Flake) Iron
