335-0934: ПЛАСТИНА

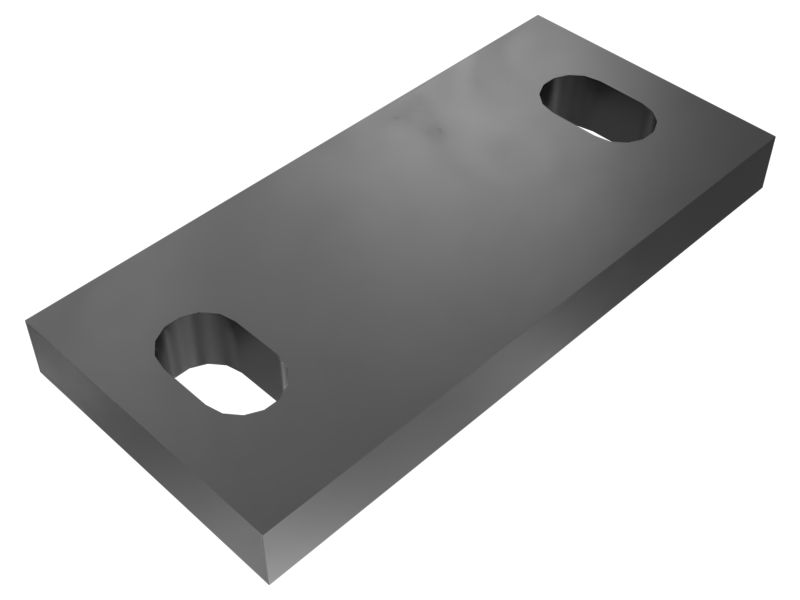

A Bottom Guard Hinge Supporting Plate is used as a retainer for the hinges of the bottom guard assembly that requires hinged movement. It provides additional support and proper alignment for the hinge, ensuring smooth operation and stability. It is provided with holes that align with the mounting holes of the hinge assembly. It is a flat steel plate that is fitted with the hinge assembly, supporting the mounting of the bottom guards on the machine frame.

Attributes:
• Ensures that the guard opens and closes smoothly without unnecessary friction or misalignment
• Withstands the operating conditions and forces encountered in the bottom guard, providing reliable retention of the fasteners

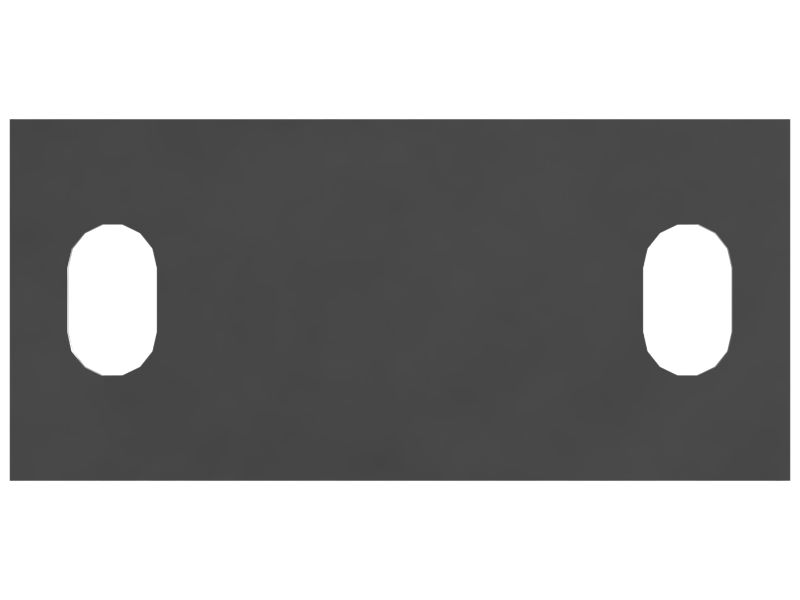

• Provided with 2 mounting slots to fit the fastener of size M12

Applications:
A Bottom Guard Hinge Supporting Plate is used to provide proper alignment and stability for the bottom guard's hinges. It ensures that the hinge is positioned correctly and provides a secure connection between the fixed guard and the moveable guard, preventing misalignment, binding, or excessive stress on the hinge.

• Material: Structural Steel
