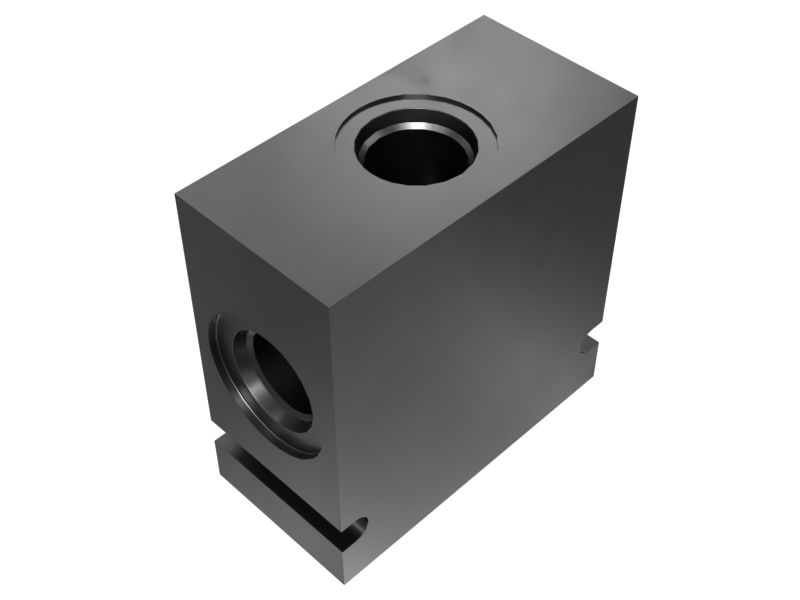

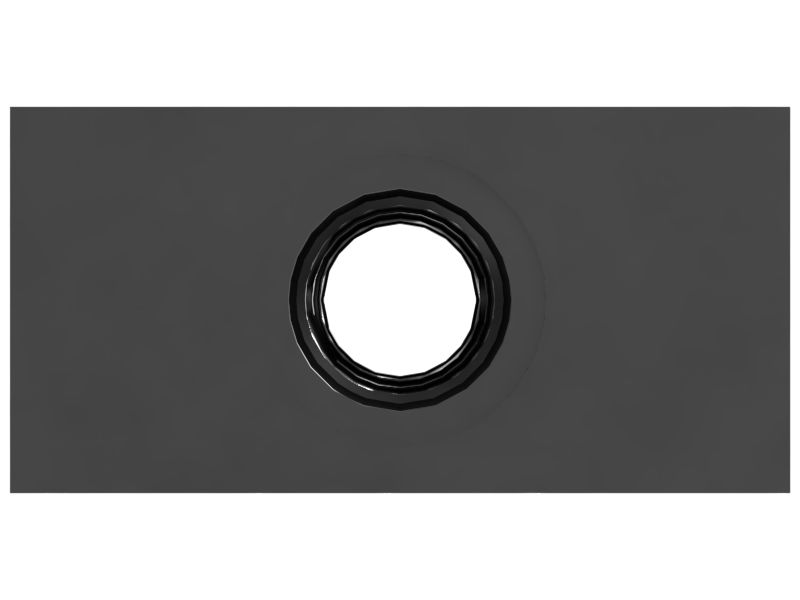

334-8104: Line Relief Valve Test Manifold

The Line Relief Valve Test Manifold is used for accurately testing relief valves in equipment. This manifold enables the controlled application of pressure to the relief valve, ensuring it withstands and properly releases fluid under designated pressure levels. By accurately simulating operational conditions, the manifold allows for a thorough assessment of valve performance, detecting any potential failures or inefficiencies before they affect the equipment's operation. It features multiple ports for fluid inlet and outlet, enabling seamless connection to the valve being tested.

Attributes:
• Supports high-pressure environments for accurate testing conditions.
• Ensures accurate pressure control during testing procedures.
• Enables real-time monitoring of valve response and performance.
• Enhances safety by verifying relief valve functionality before installation.

Applications:
The Line Relief Valve Test Manifold is used to test relief valves in hydraulic systems of equipment and is connected between the hydraulic pump and the relief valve.

• Weight (kg): 3.482

• Weight (lb): 7.676

• Height (mm): 101.6

• Height (in): 4

• Length (mm): 101.6

• Length (in): 4

• Width (mm): 50.3

• Width (in): 1.98

• Internal Thread: 1-1/16"-12-2B , 9/16"-18-2B

• Material: Steel,Coating Mixed
