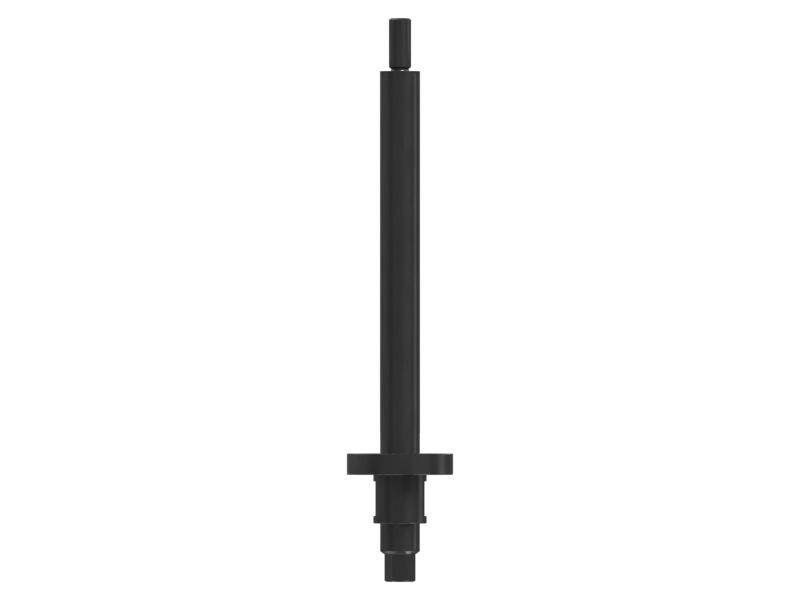

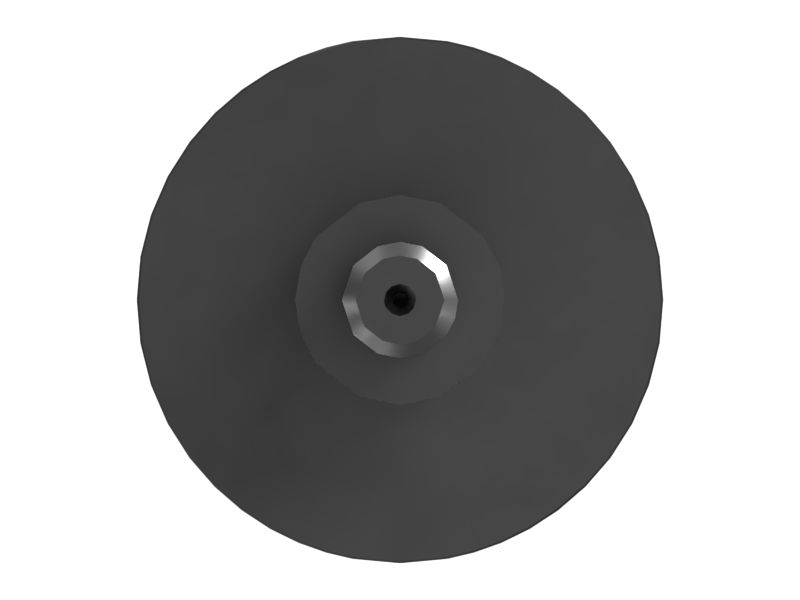

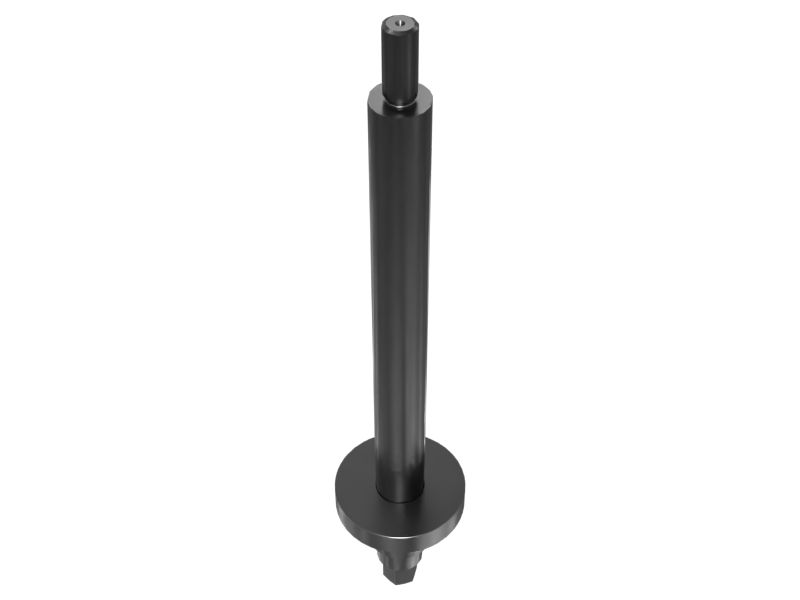

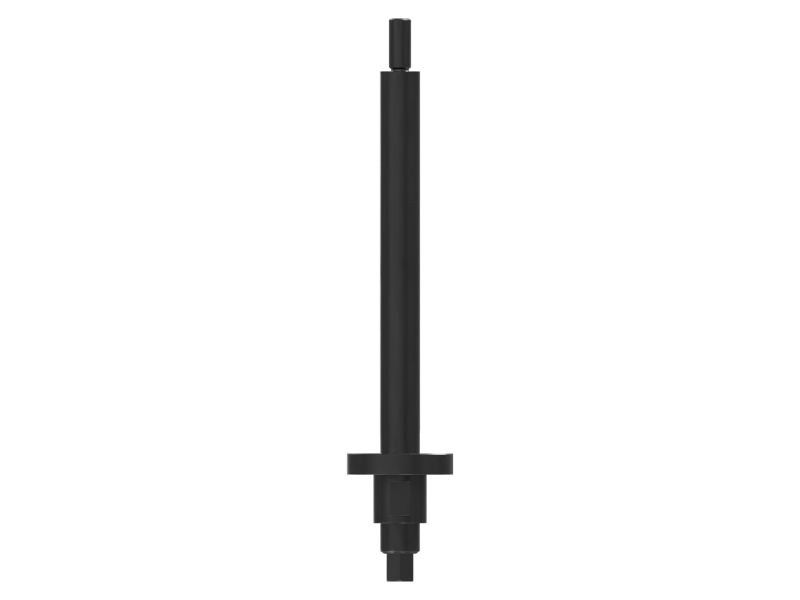

334-0114: Aftercooler Mounting Bar

An Aftercooler Mounting Bar plays a necessary role in assembling and maintaining aftercoolers, where it serves to accurately position and preload the plates. Securing the plates in place ensures that they remain evenly spaced and firmly aligned during operation, enhancing the efficiency of heat exchange. During assembly, the mounting bar applies the necessary force to preload the plates, which helps in managing the thermal expansion of the components during operation. When servicing aftercoolers, the mounting bar aids in realignment, ensuring that plates retain their correct positioning after disassembly.

Attributes:
• Ensures accurate alignment of aftercooler plates during assembly.
• Provides consistent preload force for accurate plate spacing.

Applications:
An Aftercooler Mounting Bar is positioned within the aftercooler assembly and applied during both initial assembly and service procedures to ensure accurate plate alignment.

• Outer Diameter (mm): 76.2

• Outer Diameter (in): 3

• Length (mm): 405.1

• Length (in): 15.949

• Thread: 5/8"-11-2A

• Weight (kg): 2.481

• Weight (lb): 5.47

• Material: Carbon Steel,Coating Mixed
