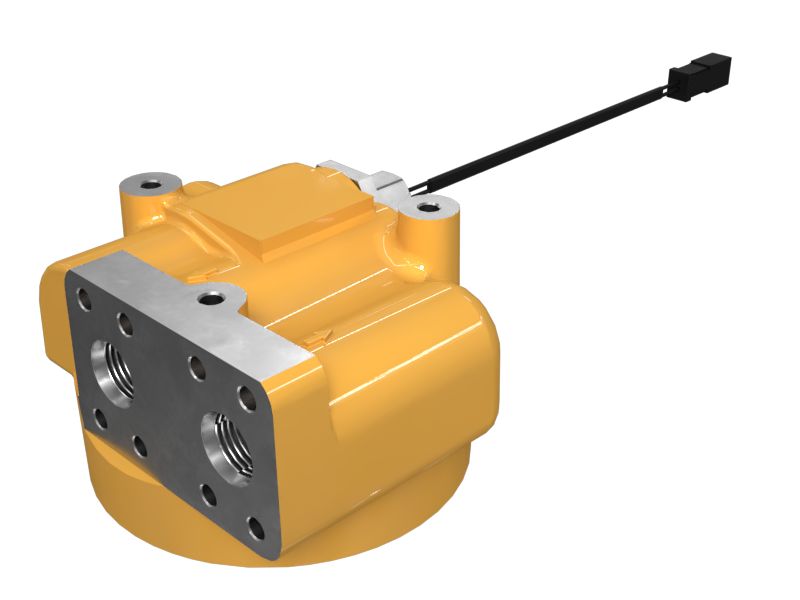

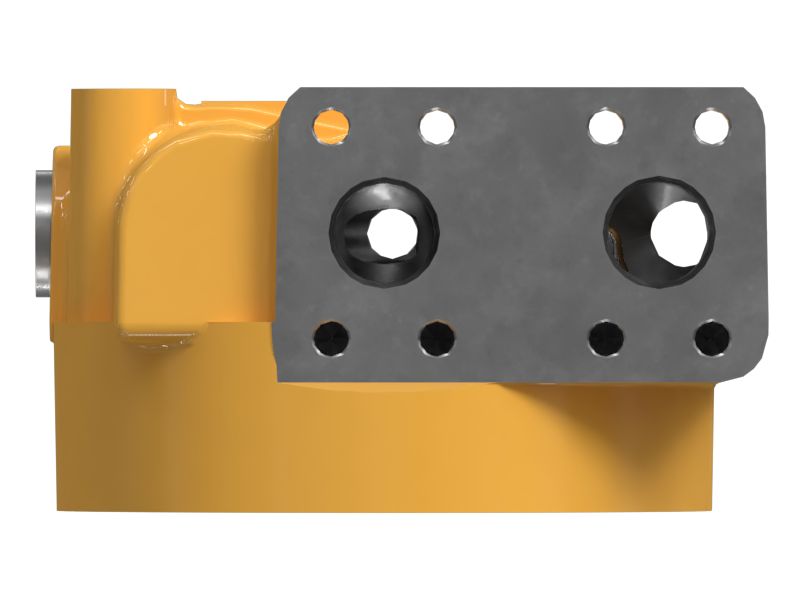

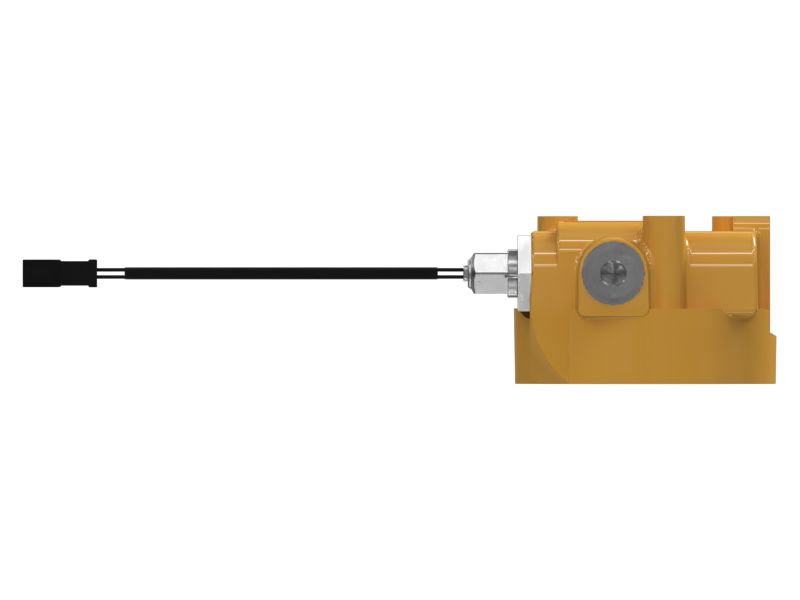

333-9309: ОСНОВАНИЕ ФИЛЬТРА В СБОРЕ

Description:
The Power Train Oil Filter Base is to provide effective Filtration of engine Oil, ensuring the removal of contaminants and impurities that could lead to premature engine wear and damage. It is made from high-quality aluminum material. The Bypass unit diverts a small portion of the pressurized Oil flow from the main oil gallery to the Bypass Filter. It allows for more thorough Filtration of the Oil as it can use a finer Filter medium compared to the primary Filter.

Attributes:
• Equipped with an O-ring seal to ensure a tight and leak-free connection between the base and the filter element housing
• Provided with a bypass pressure setting of 520 kPa indicates that when the pressure differential across the filter

Applications:
The Power Train Oil Filter Base is to house and support the Oil Filter element within the engine lubrication unit. This Power Train Oil Filter Base is mostly used in Cat 938H, 966, 966H, 972H, 980H, IT38H, SEM680D, and SEM688F Wheel Loaders, D8T Track Type Tractor.

• Material: Aluminum,Alloy Aluminum

• Overall Height (in): 4.14

• Overall Height (mm): 105.18

• Overall Length (in): 18.63

• Overall Length (mm): 473.27

• Overall Width (in): 7.17

• Overall Width (mm): 182.23

• Weight (kg): 4.23

• Weight (lb): 9.33
