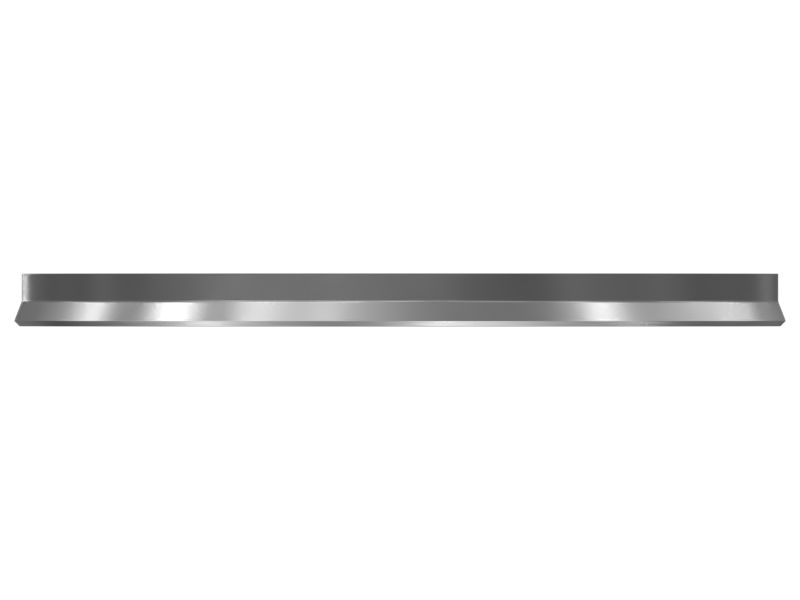

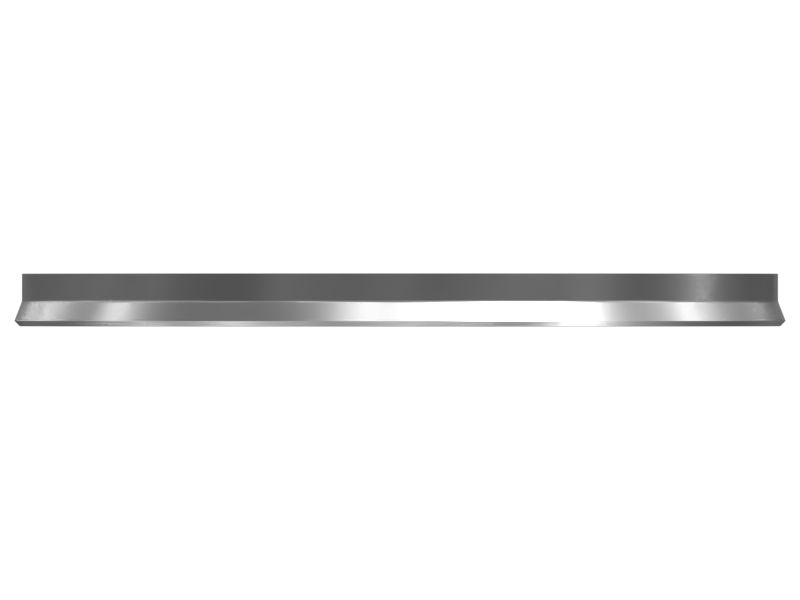

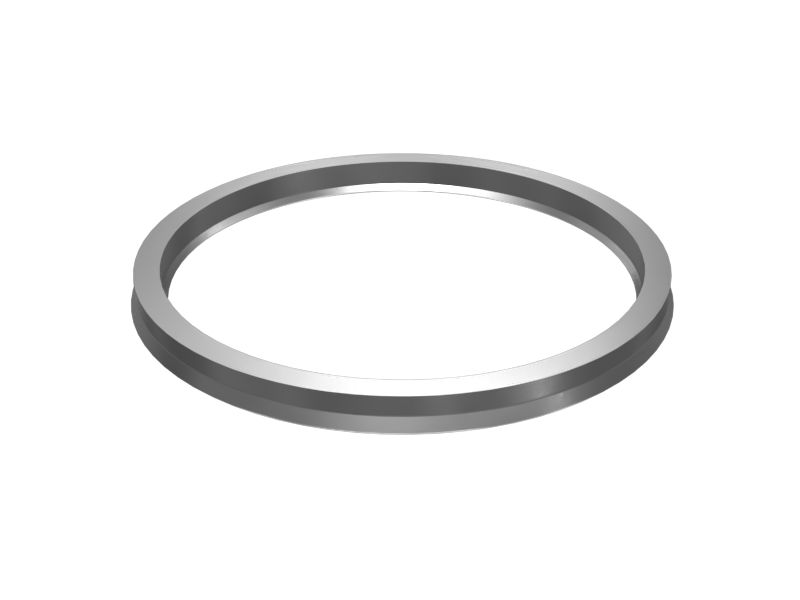

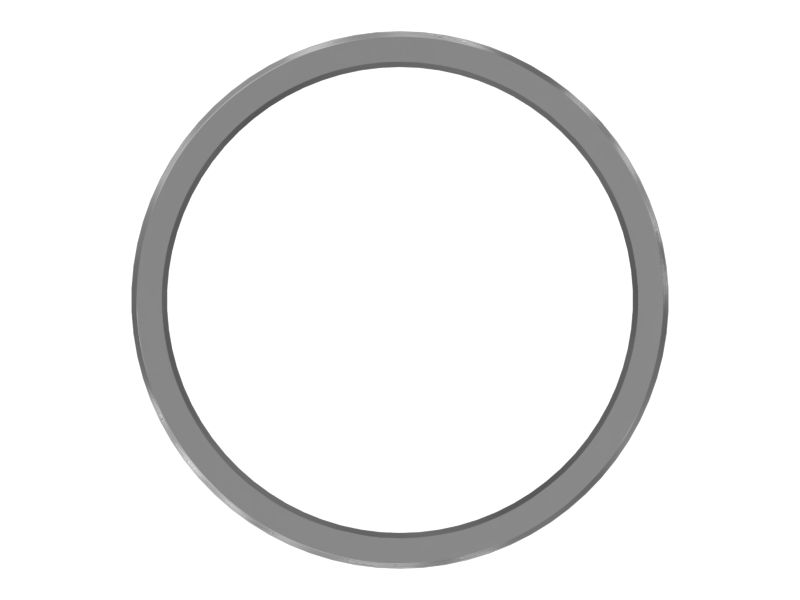

333-8673: УПЛОТНЕНИЕ П-ОБРАЗНОГО СЕЧЕНИЯ

Description:
A U-Cup seal, also known as a U-ring seal designed to provide effective sealing for hydraulic cylinders. It is designed to fit into a groove or recess in the cylinder bore or piston. When the cylinder is pressurized, the seal is forced against the cylinder wall or piston, creating a tight and effective seal. It prevents leakage of hydraulic fluid pressure from the cylinder, ensuring smooth and efficient operation.

Attributes:
• Designed to withstand high-pressure levels.
• Designed to withstand high and low temperatures.
• Withstand the abrasive nature of hydraulic fluids and resist wear over time.

Applications:
A U-Cup seal provides sealing in hydraulic cylinders for functions like lifting and tilting implements, ensuring reliable operation. It is extensively used in Cat 320C, 320D, 330C, 330D, 336D, 336E, 340, 340F, 345B, 345C, 345D, 349, 349D, 349E, 349F, 350, 352, 352F, 355, 365B, 365C, 365D, 374D, 374E, 374F and 385C Excavators, 345, 345C, 345D, 365, 365C, 374D and 775 Oem Applications, 365C, 385C, MH3275 and MH3295 Material Handler, R1700 and R2900 Wheel Loader, R1700 Underground Mining.

• Inner Diameter (in): 5.06

• Inner Diameter (mm): 128.4

• Material: Rubber,Nitrile / NBR / HNBR / XNBR Rubber

• Outer Diameter (in): 5.71

• Outer Diameter (mm): 145

• Weight (kg): 0.04

• Weight (lb): 0.08

• Width (in): 0.39

• Width (mm): 10
