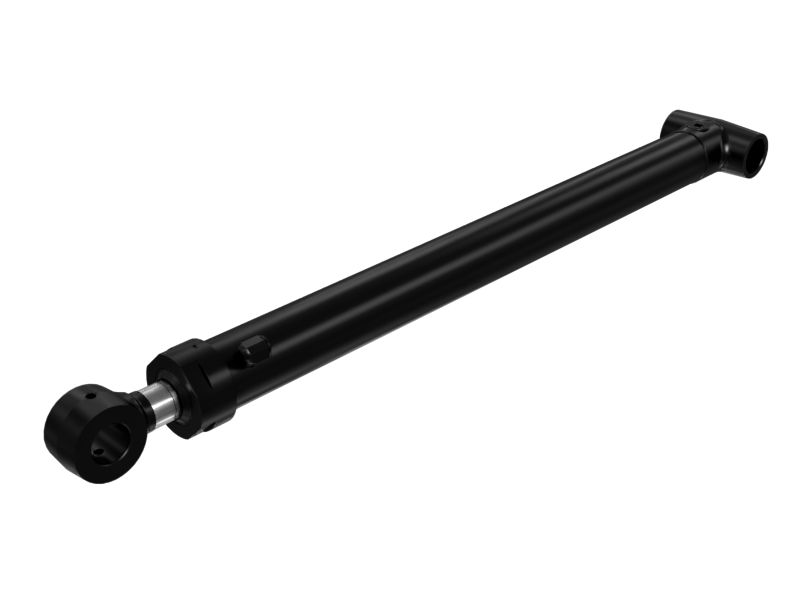

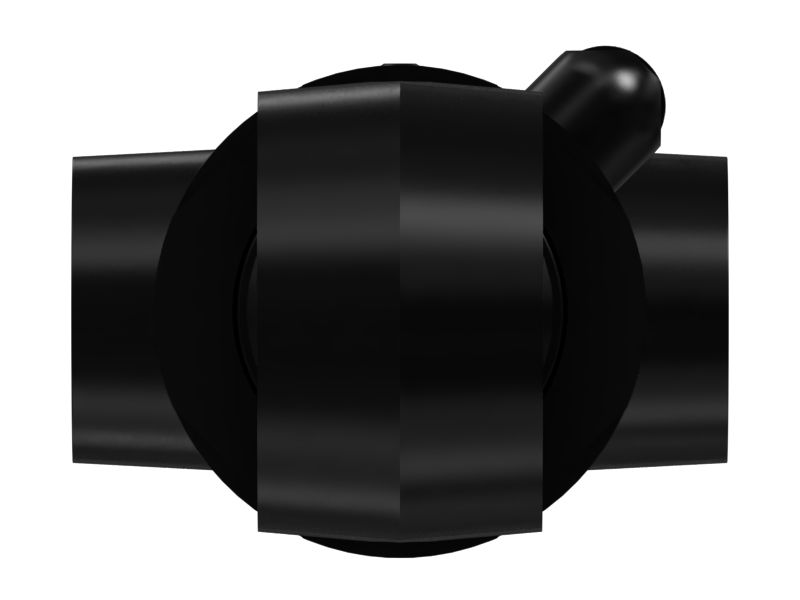

324-6560: Cylinder Group

Description:
Cat® Cylinder Groups are used to service hydraulic systems of heavy-duty equipment. Quality for your rugged work environment. Cat® Cylinders are manufactured with thick tube walls that enable more service lives. This feature, when combined with exclusive Cat® Oversize Seals, can extend cylinder life in many applications.
Closed : 1122 mm (44.173 in)
Open : 1882 mm (74.094 in)
Test Pressure : 31500 kpa (4568.688 psi)
Stroke : 760 mm (29.92 in)

Application:
Cat® Hydraulic cylinder arrangements are designed for specific machine applications. Used to actuate heavy-duty implements in hydraulic systems. Consult your owner's manual or contact your local Cat Dealer for more information.

• Length (mm): 1211

• Length (in): 47.68

• Width (mm): 97

• Width (in): 3.82

• Height (mm): 150

• Height (in): 5.91

• Bore Diameter (mm): 70

• Bore Diameter (in): 2.76

• Rod Diameter (mm): 45

• Rod Diameter (in): 1.77

• Thread Size (dia x pitch) (mm): M12x1.75

• Working Pressure (kPa): 21000

• Working Pressure (psi): 3045.79

• Material: Steel,Carbon Steel

• Weight (kg): 32

• Weight (lb): 70.55
