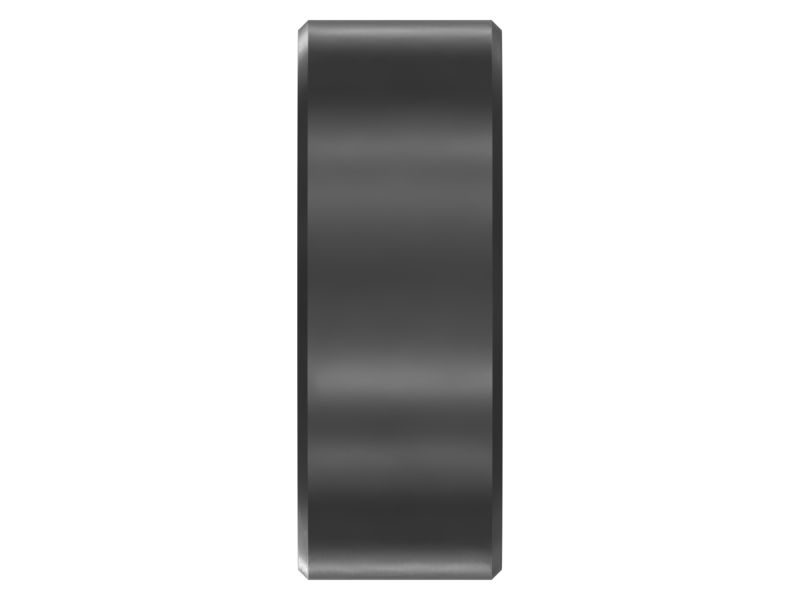

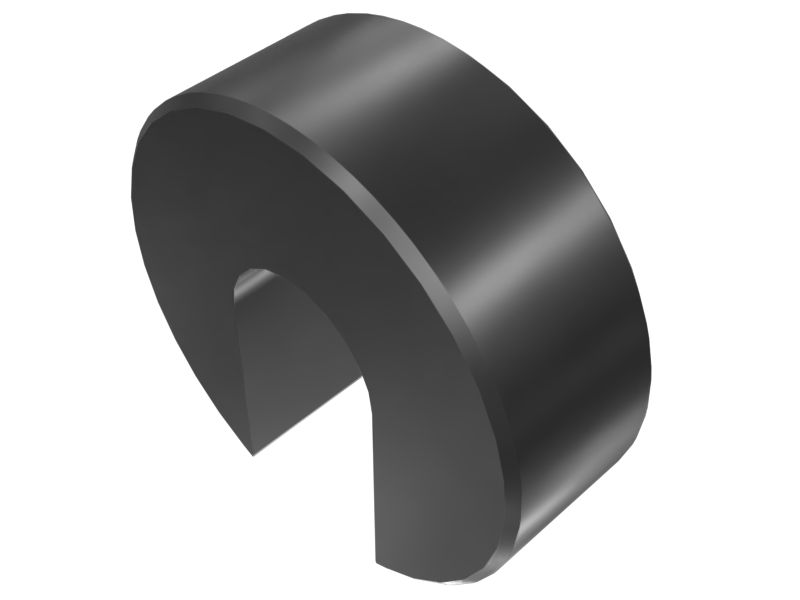

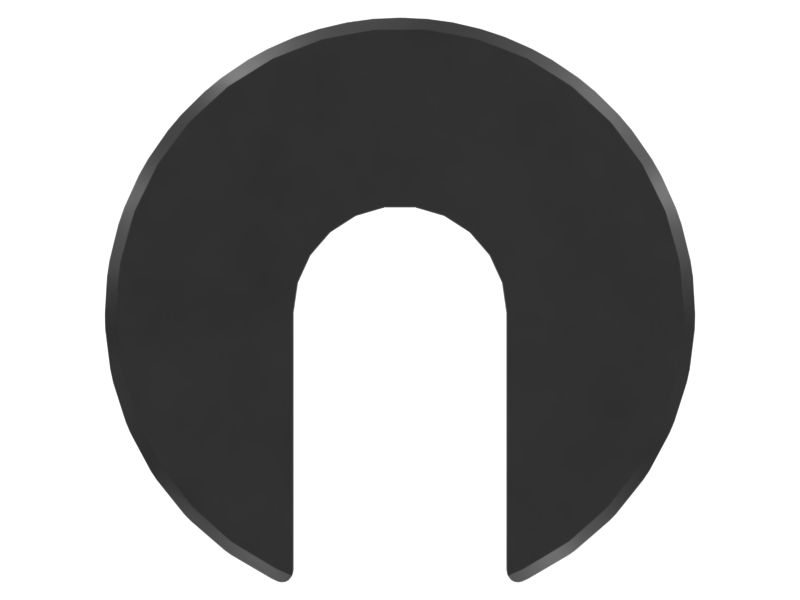

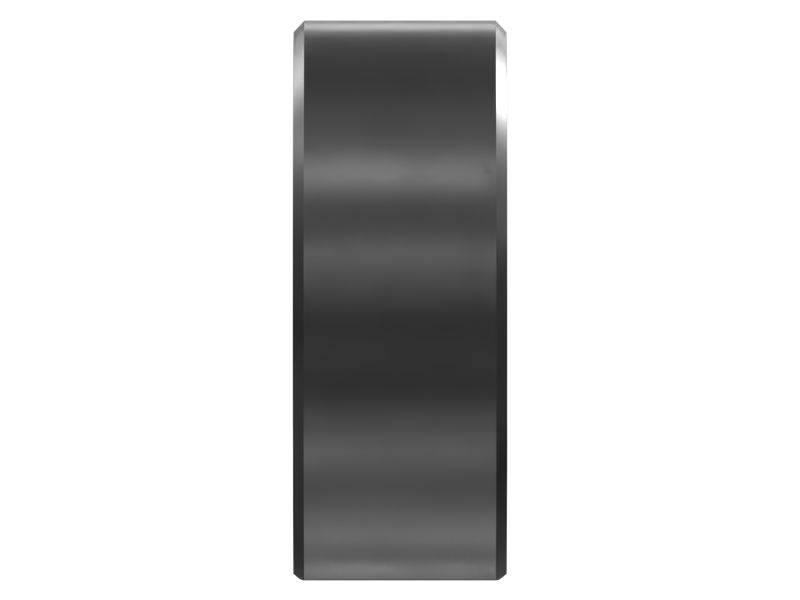

320-9700: 110mm Outer Diameter Spacer Plate

The Spacer Plate is a necessary component in the process of removing linkage pins from equipment. This tool facilitates the efficient and safe removal of pins by ensuring that the applied force is evenly distributed across the surface area, reducing the risk of damage to surrounding components. It works by fitting between the linkage and the pushing mechanism, providing a stable base that aligns the pushing force directly onto the pin. This alignment is necessary for preventing misalignment and ensuring a smooth, controlled extraction process.

Attributes:
• Provides accurate alignment of the pushing mechanism.
• Reduces the risk of damage to surrounding components.
• Enhances the safety of the pin removal process.
• Facilitates controlled and smooth pin extraction.

Applications:
The Spacer Plate is used in the linkage systems of equipment for accurate and safe removal of linkage pins from their housing. The plate is positioned between the linkage and the pushing tool to ensure controlled force application.

• Weight (kg): 2.098

• Weight (lb): 4.625

• Width (mm): 40

• Width (in): 1.575

• Outer Diameter (mm): 110

• Outer Diameter (in): 4.331

• Material: Steel,Structural Steel,Low Alloy Steel,Coating Mi
