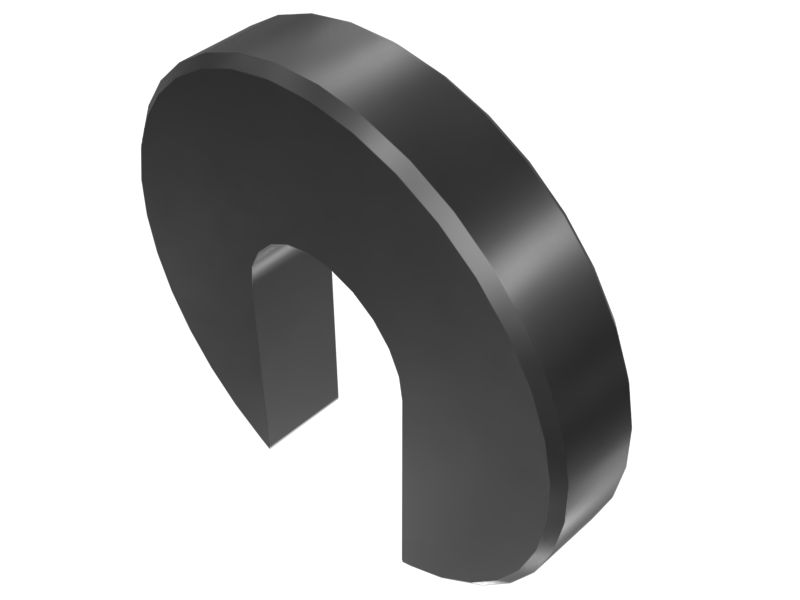

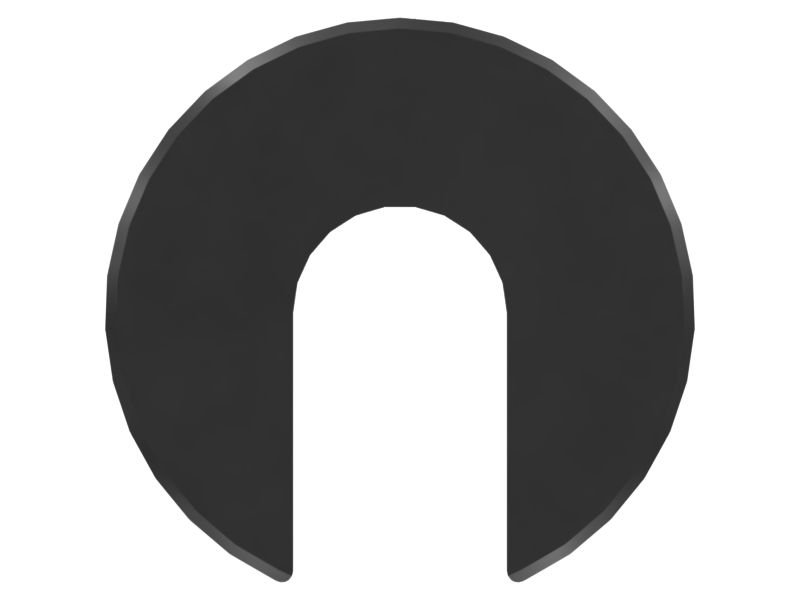

320-9699: Linkage Pin Removal Tool Spacer Plate

The Linkage Pin Removal Tool Spacer Plate is used to assist in the removal of linkage pins in equipment. It is used to create the necessary clearance and alignment for effective pin extraction. This spacer plate helps in positioning and stabilizing the pin during the removal process, which is necessary for ensuring that the pins are extracted without causing damage to surrounding components.

Attributes:
• Provides proper clearance for linkage pin removal and installation.
• Resistance to bending under load.
• Brinell hardness number ranges from 3.5 to 3.7.

Applications:
The Linkage Pin Removal Tool Spacer Plate is located in the area where linkage pins are fitted. It ensures proper alignment and clearance during the pin removal process.

• Weight (kg): 1.046

• Weight (lb): 2.306

• Outer Diameter (mm): 110

• Outer Diameter (in): 4.331

• Thickness (mm): 20

• Thickness (in): 0.787

• Material: Steel,Low Alloy Steel,Coating Mixed
