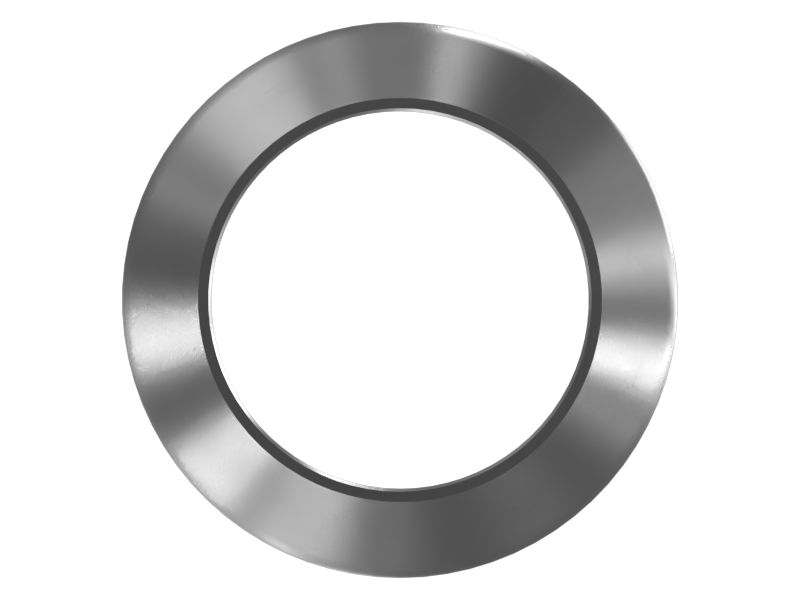

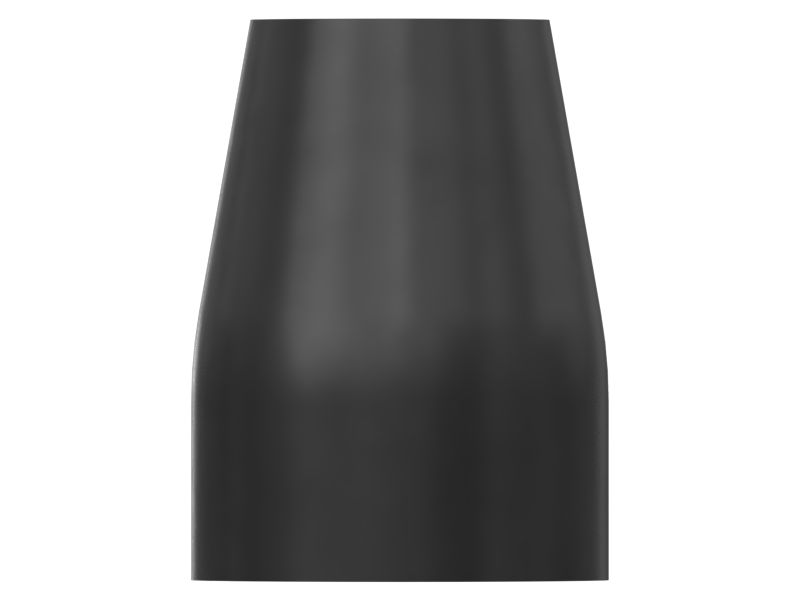

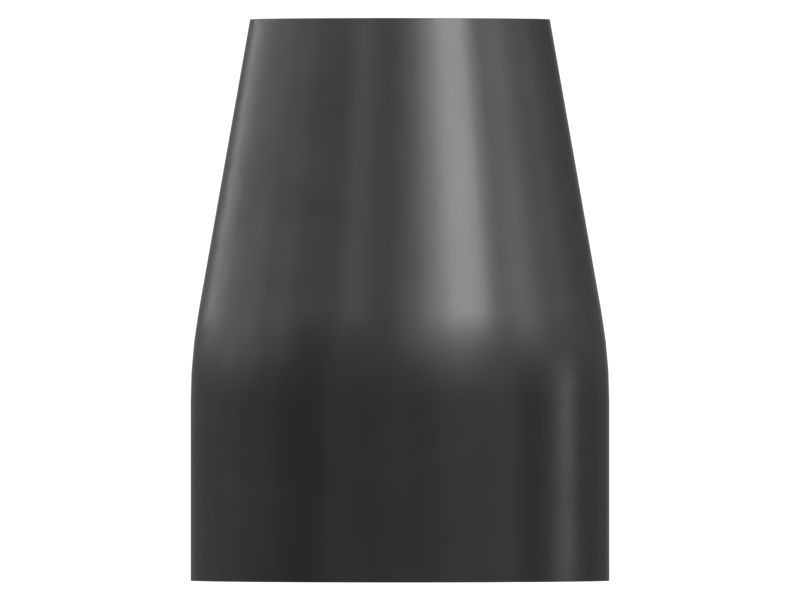

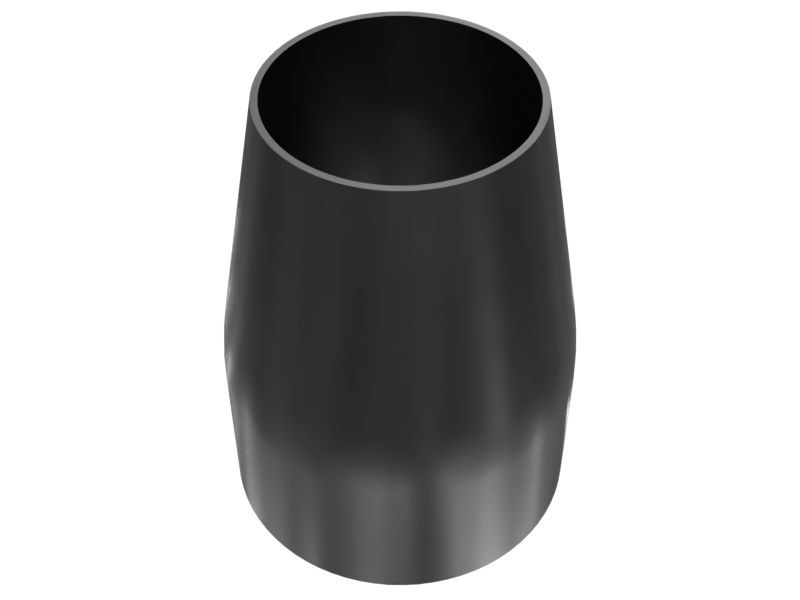

318-2976: 55.7mm Inner Diameter Seal Guide Tapered Mandrel

The Seal Guide Tapered Mandrel is used for the installation of hydraulic cylinder piston seals. It consists of a tapered mandrel and a sealing ring pusher. The tapered mandrel stretches the seal over the piston, ensuring the seal is evenly expanded without damage. Once the seal is stretched, the sealing ring pusher uniformly guides the seal over the mandrel and into the piston groove. This tool is for maintaining the integrity of the seal and ensuring a proper fit, thereby enhancing the performance and longevity of the hydraulic system.

Attributes:
• Ensures proper alignment of seals within the hydraulic cylinder piston groove.
• Assists in maintaining the hydraulic system’s pressure integrity by guiding the seal accurately.
• Provides accurate seal positioning during operation.
• Ensures an accurate fit of seals within the hydraulic cylinder piston groove for optimal sealing.

Applications:
The Seal Installer Guide Tapered Mandrel is used to facilitate the efficient and damage-free installation of hydraulic cylinder piston seals in maintenance operations.

• Outer Diameter (mm): 82

• Outer Diameter (in): 3.228

• Inner Diameter (mm): 55.7

• Inner Diameter (in): 2.193

• Length (mm): 110

• Length (in): 4.331

• Material: Steel,Structural Steel,Coating Mixed

• Weight (kg): 0.926

• Weight (lb): 2.041
