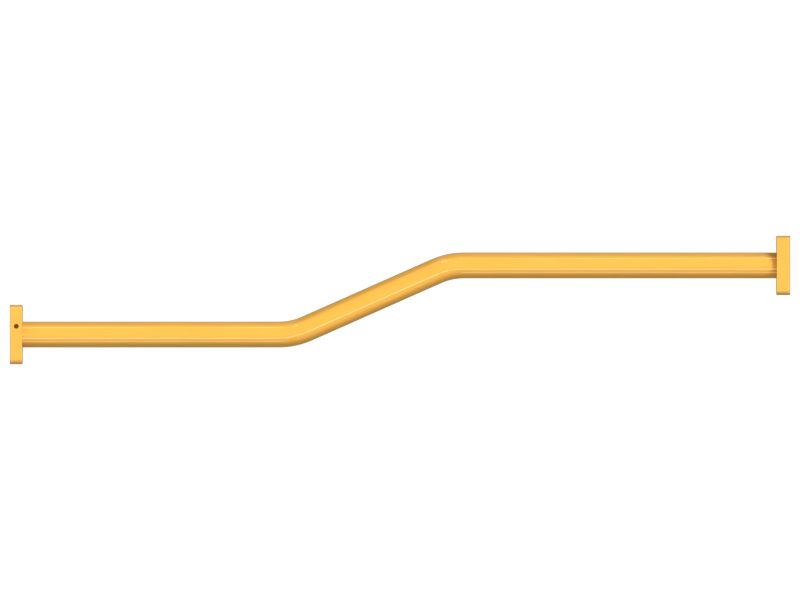

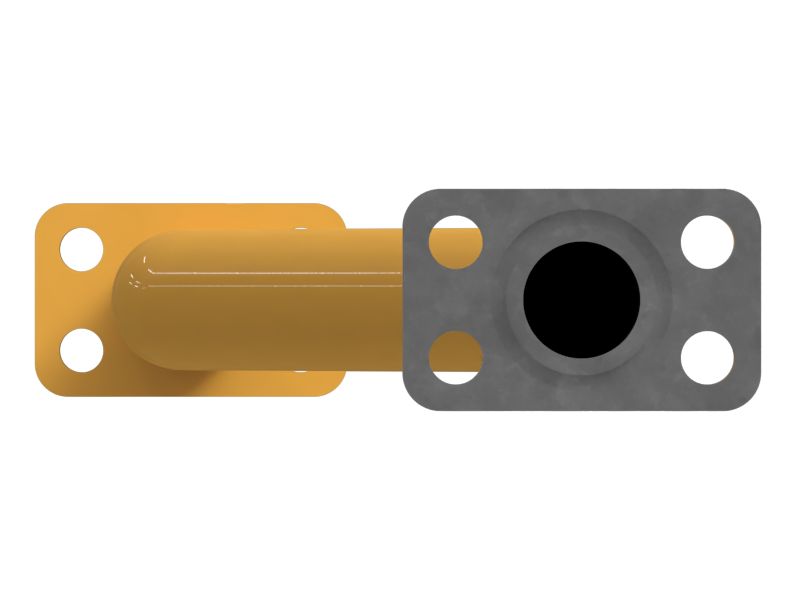

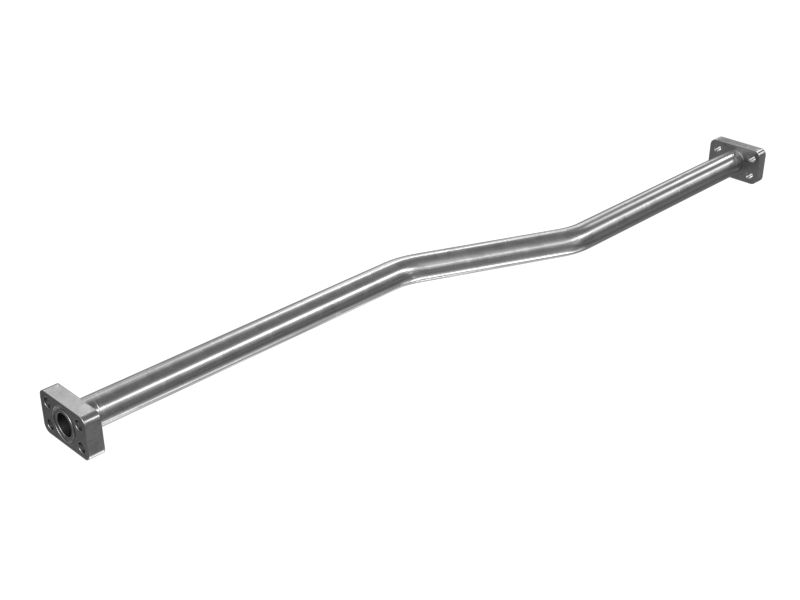

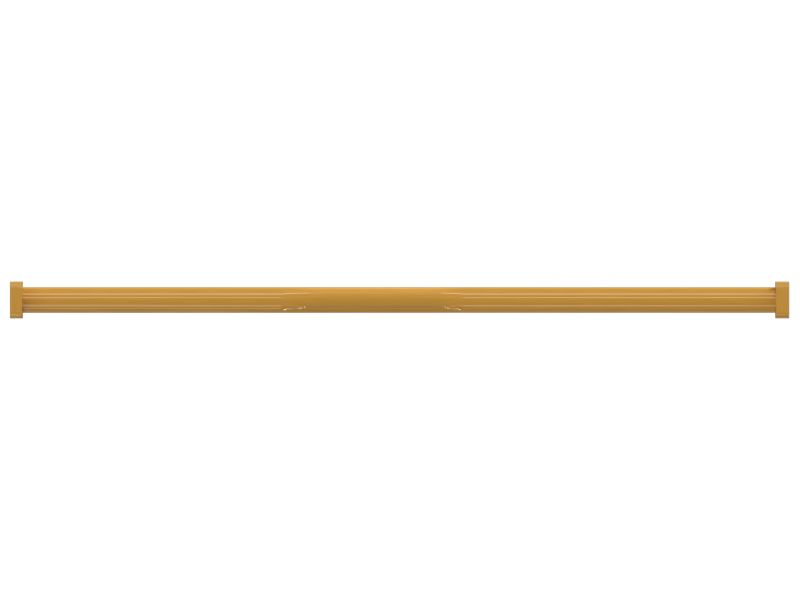

317-4805: ТРУБКА В СБОРЕ

The Hydraulic Boom Coupler Lines Tube Assembly is responsible for channeling the hydraulic fluid to and from the hydraulic coupler. The tube is carefully routed and secured to prevent damage from vibration and impact over the boom structure. The inner surface of the tube is made smooth to minimize back pressure and reduce turbulence. By manipulating the hydraulic controls, the operator can extend or retract the boom as needed to access different areas or depths during excavation tasks.

Attributes:
• Withstands 34300 kPa relief valve pressure, ensuring consistent cylinder actuation and response
• Preventing leaks and ensuring a reliable transfer of hydraulic fluid

Applications:
The Hydraulic Boom Coupler Lines Tube Assembly is used to facilitate the flow of hydraulic fluid to and from the valve to actuate the coupler cylinder over the boom structure. It is ensuring controlled extension and retraction of the boom.

• Outer Diameter (mm): 49

• Outer Diameter (in): 1.91

• Approximate Overall Length (mm): 1527
