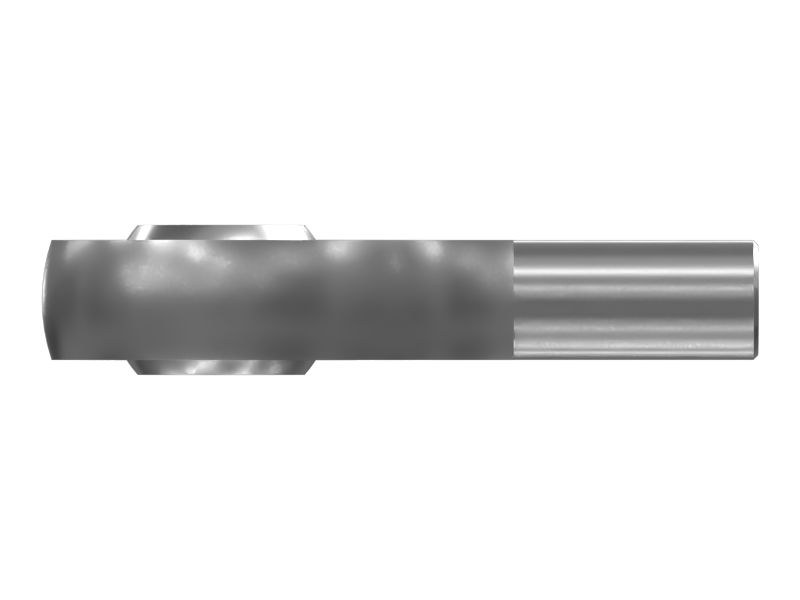

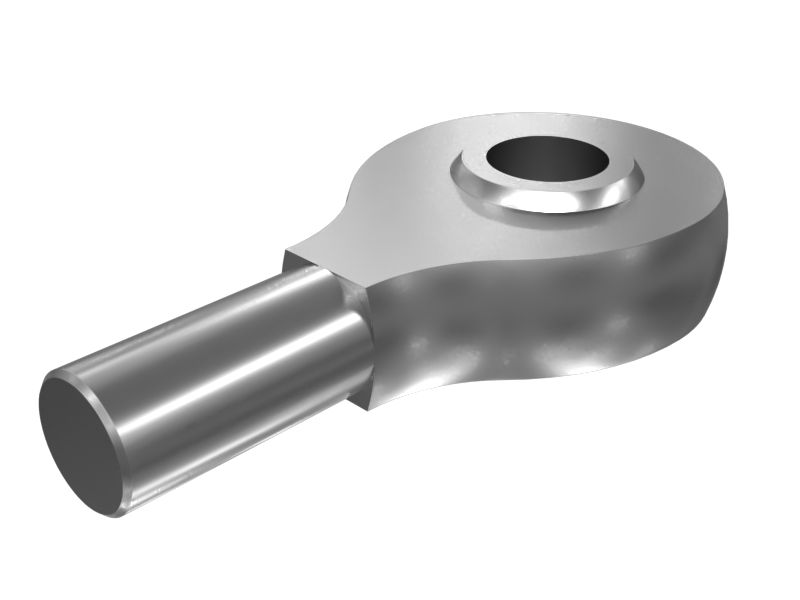

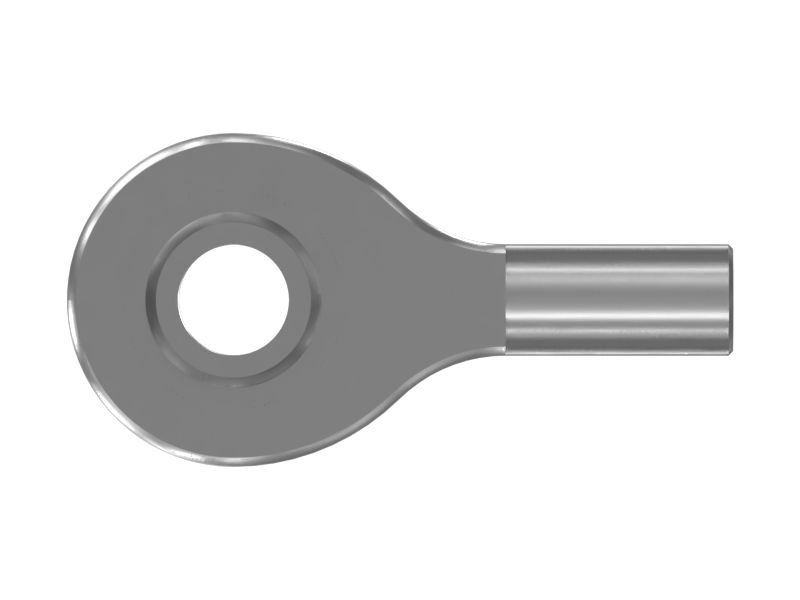

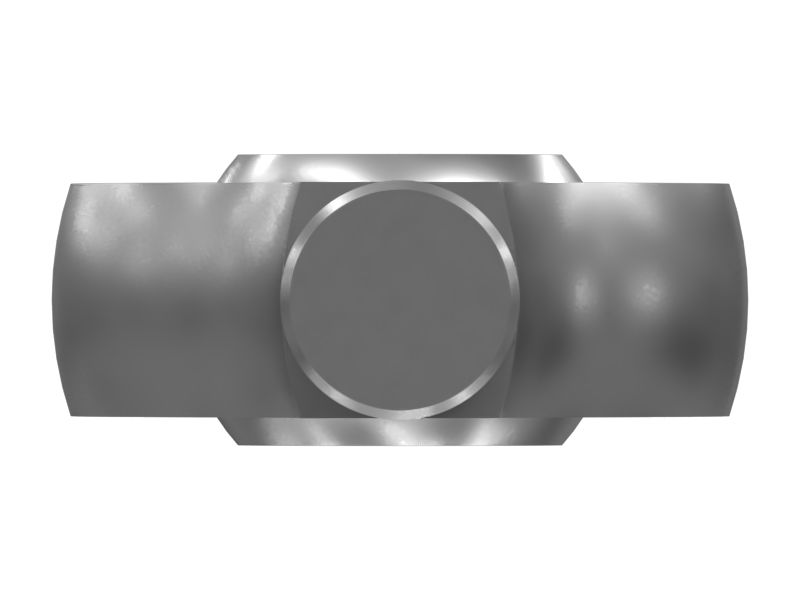

308-2071: ГОЛОВКА ШАТУНА

Description:
Cat® spherical rod ends are manufactured for long service life, minimal maintenance, and high operational reliability. Spherical rod ends provide a mechanical articulating joint that accommodates oscillation during slow rotation. These joints also accommodate misalignment between the rod end and the attached shaft. Spherical rod ends consist of an eye-shaped head with an integral shank that forms the housing for a spherical bearing. Bearings reduce friction and provide protection between mating parts. They are specifically designed for low to medium speed, high load applications with little to medium side thrust.

Attributes:
• Length: 57 mm (2.244 in)
• Material: Steel
• Thread Size: 1/2-20 UNF
• Thread Length: 28.45 mm (1.120 in)
• Pivot Angle: 24°
• Large load capacity
• Easy mounting and dismounting
• Suitable for heavy static or alternate loads, and shock loads

Application:
Cat spherical rod ends are typically used in rod and linkage assemblies and control groups where strength and flexibility are crucial.

• Material Description: Steel

• Height - C (mm): 16

• Length to Pin Hole - A (mm): 57

• Rod End Diameter - B (mm): 38.1

• Rod End Type: Spherical

• Height - C (in): 0.629

• Length to Pin Hole - A (in): 2.244

• Rod End Diameter - B (in): 1.500

• Thread Size (in): 1/2-20
