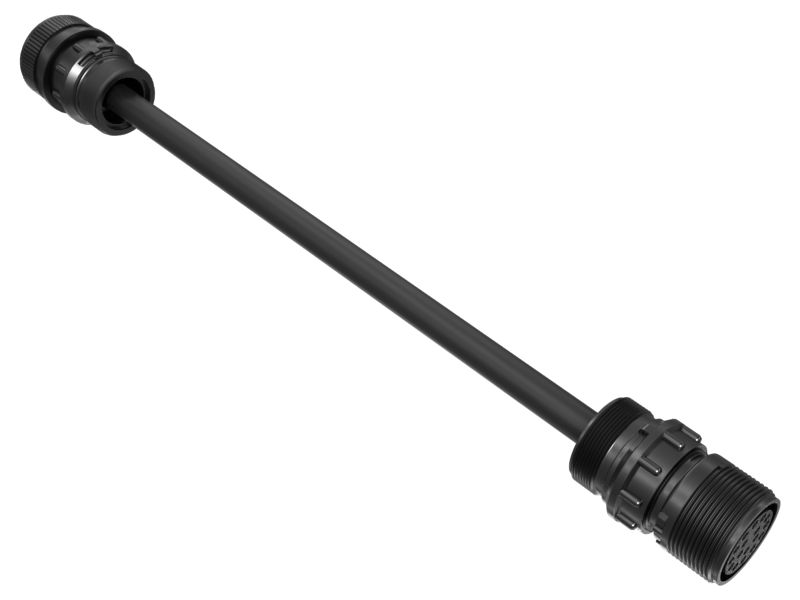

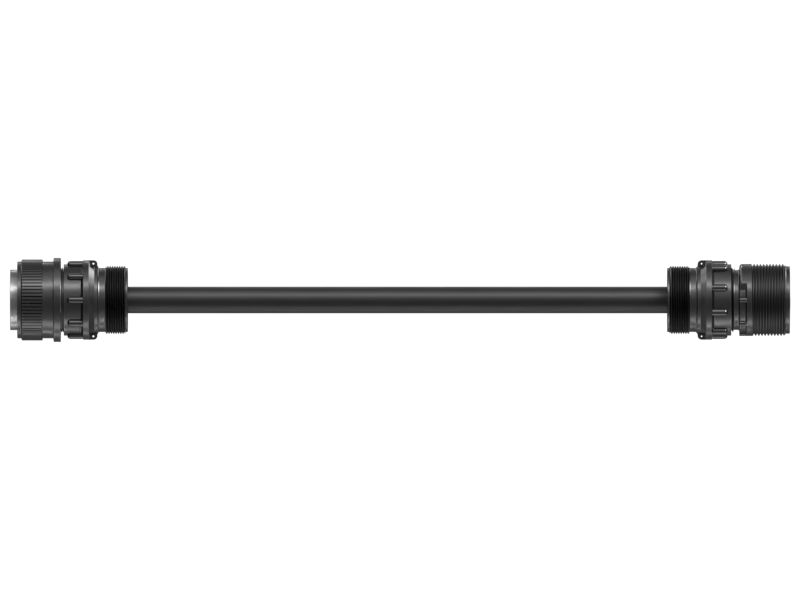

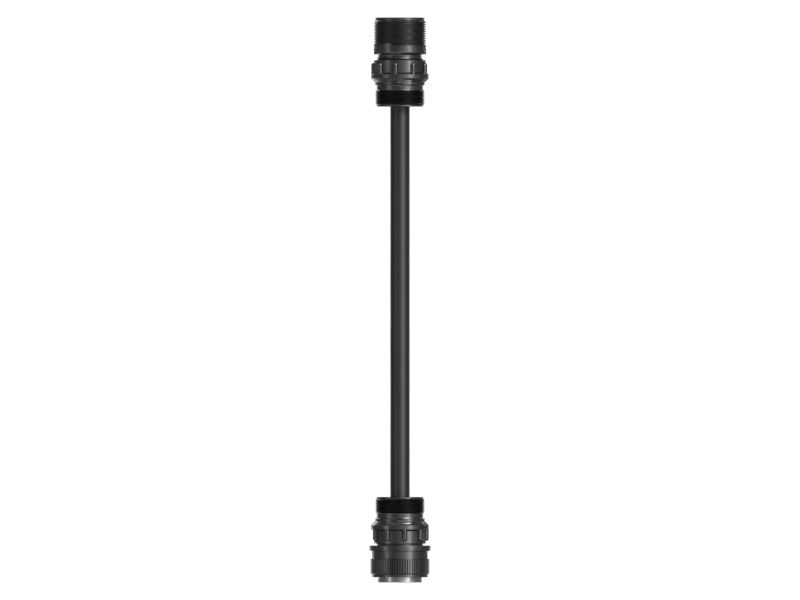

307-3542: Transmission Analyzer Adapter Cable

The Transmission Analyzer Adapter Cable is a tool for diagnosing and adjusting different components within the equipment transmissions. This cable connects the transmission and hydraulic pump to a dealer-supplied computer, enabling electronic testing and fine-tuning of components such as solenoids, shift levers, and proportional valves. It facilitates both automatic and manual tests to identify issues like shorted and open solenoid coils, ensuring accurate transmission functionality. The cable is compatible with Powershift planetary, countershaft, Individual clutch modulation, challenger, and electronic clutch pressure control transmissions.

Attributes:
• Facilitates electronic testing of transmission and pump components.
• Allows connection between solenoids and computer for testing.
• Supports the activation of solenoids with a timeline sequence.

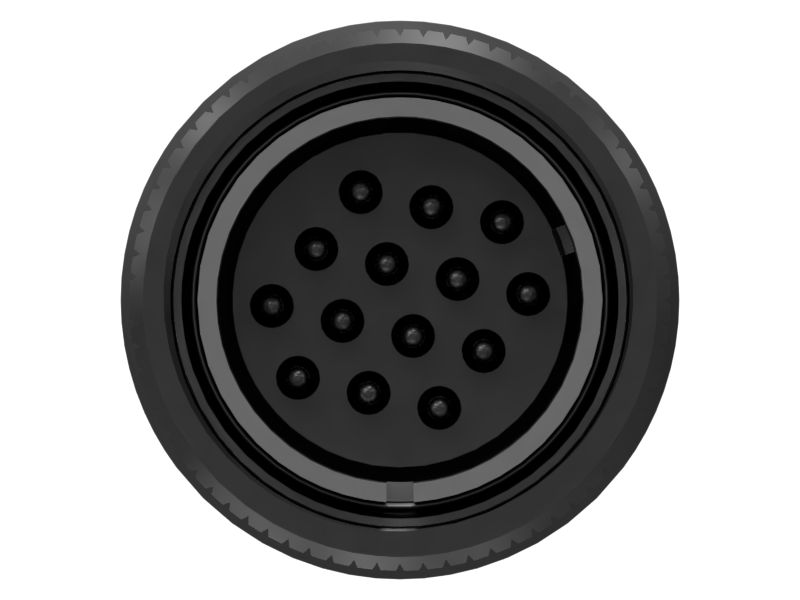

• Adapts 17-pin connector on speed sensor cable to 14-pin connector on transmission.
• Ensures accurate adjustments of proportional valves.

Applications:
The Transmission Analyzer Adapter Cable is utilized to connect transmissions or pumps to a dealer-supplied computer for diagnostic testing, within the equipment that uses Powershift planetary, and other advanced transmission systems.

• Wire Gauge: 18

• Weight (kg): 0.181

• Weight (lb): 0.399
