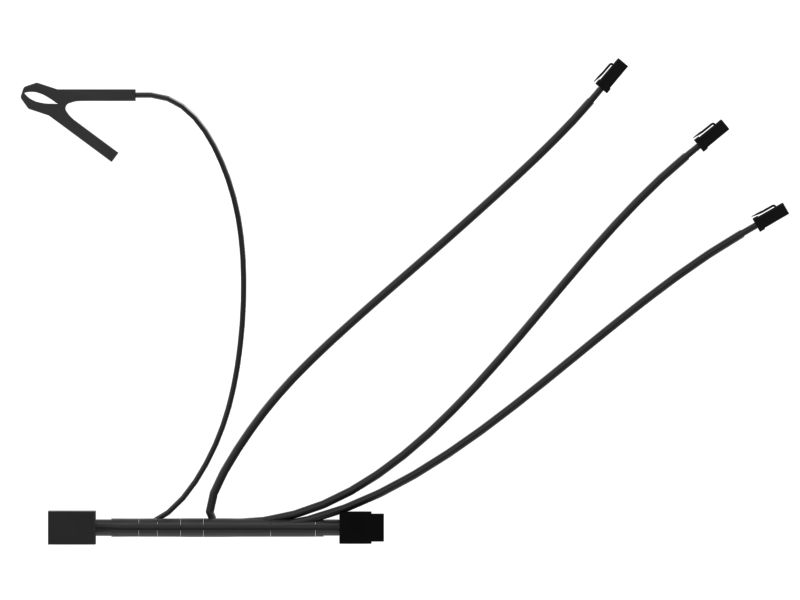

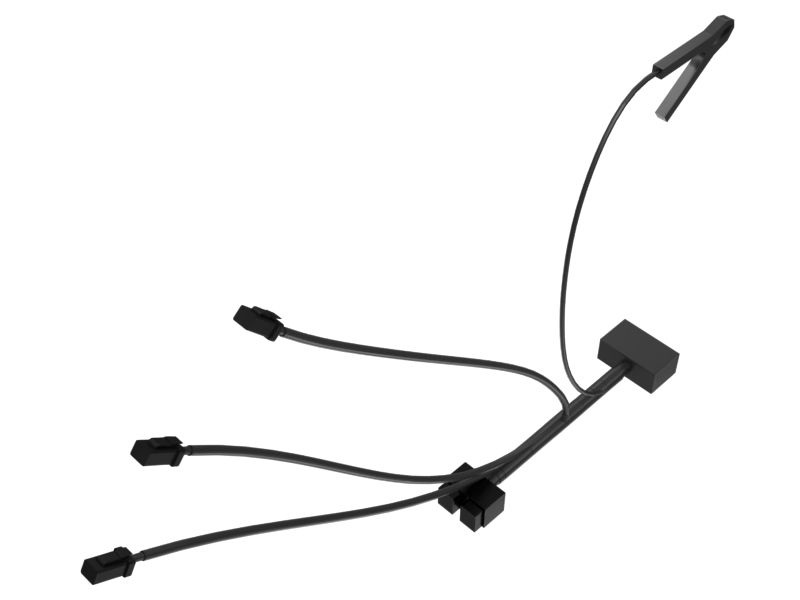

305-7401: Transmission Analyzer Adapter Cable

The Transmission Analyzer Adapter Cable is used during the diagnostic and testing process of equipment transmissions. This cable functions as the link between the transmission bulkhead connector and the extension cable, facilitating accurate measurement of speed sensor outputs during bench tests. By connecting these components, the adapter cable enables operators to monitor and analyze the performance of the transmission’s speed sensors to ensure optimal operation and detect any faults.

Attributes:
• Enables accurate measurement of speed sensor outputs during bench tests.
• Speed sensor breakouts allow multimeter readouts.
• Ground clamp connects to ground point on transmission.

Applications:
The Transmission Analyzer Adapter Cable is used in the bench testing setup, connecting the transmission bulkhead connector to the extension cable for speed sensor diagnostics in the equipment.

• Weight (kg): 0.419

• Weight (lb): 0.924
