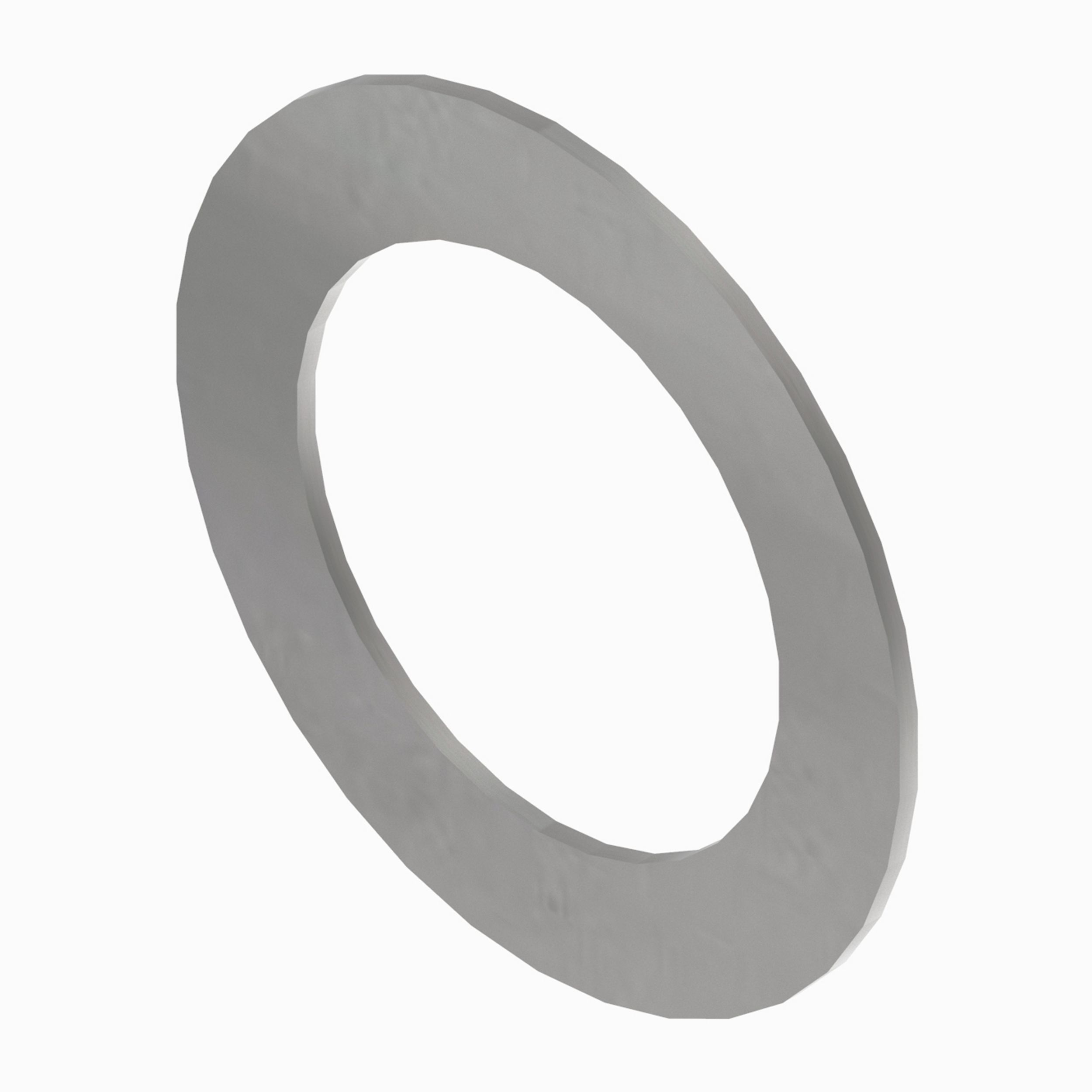

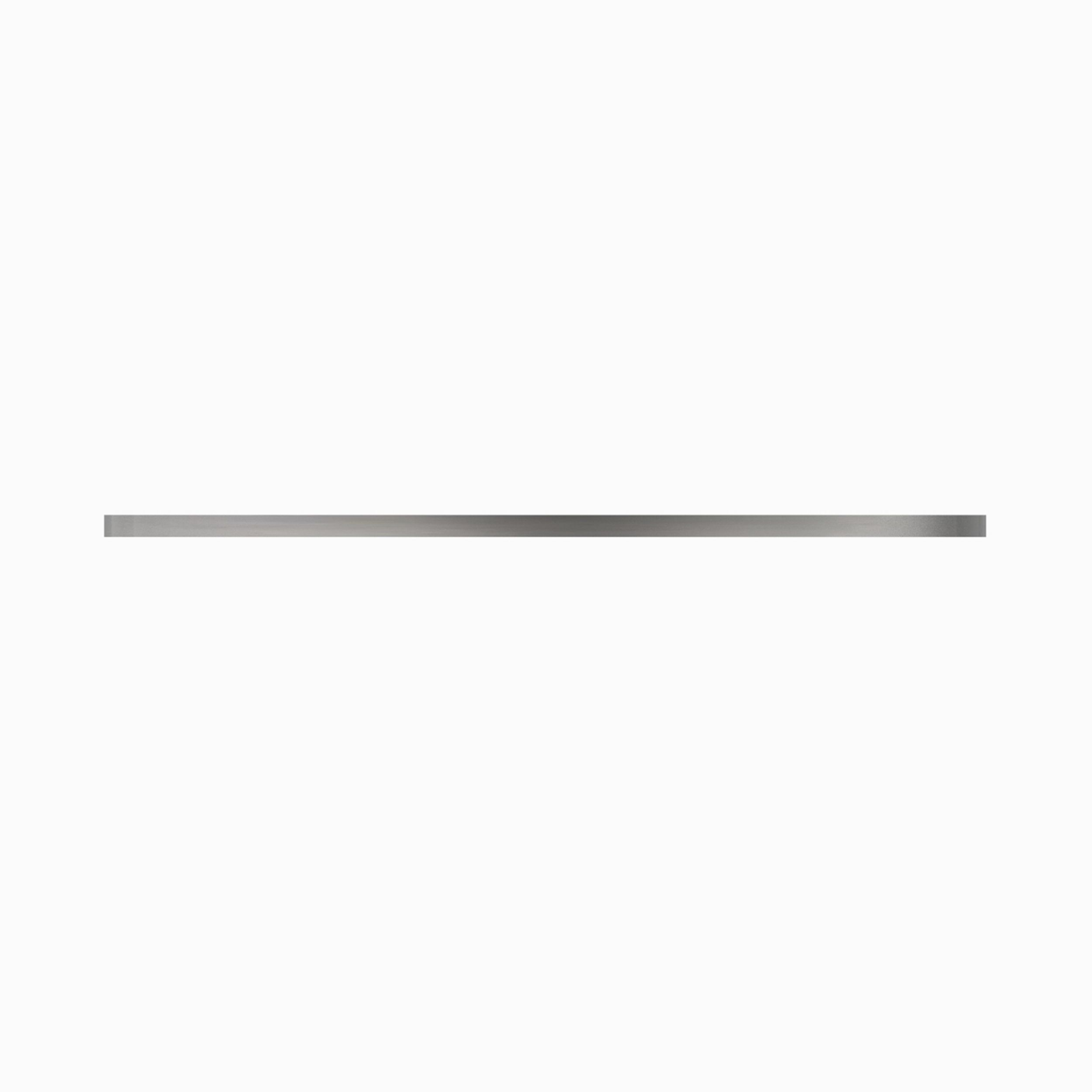

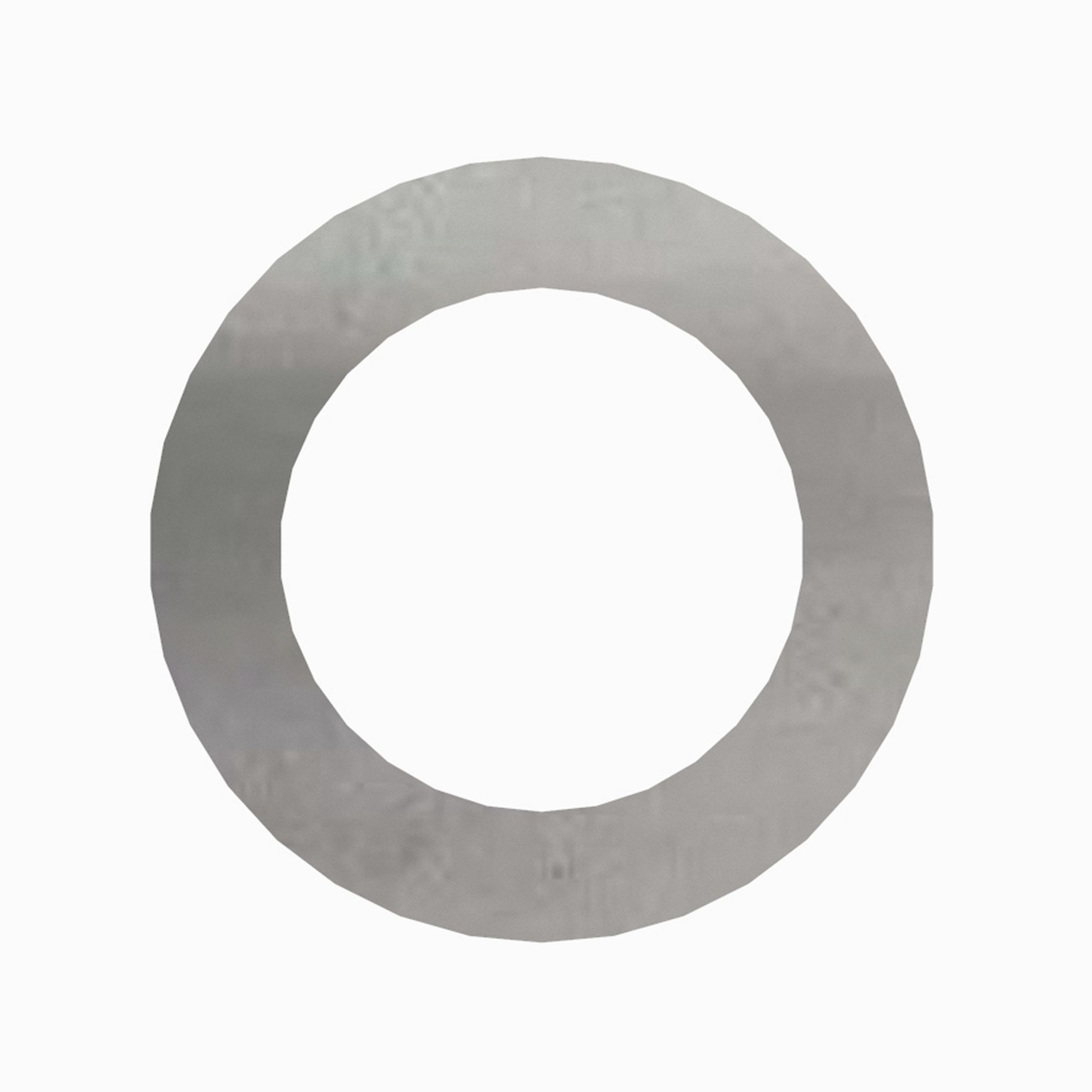

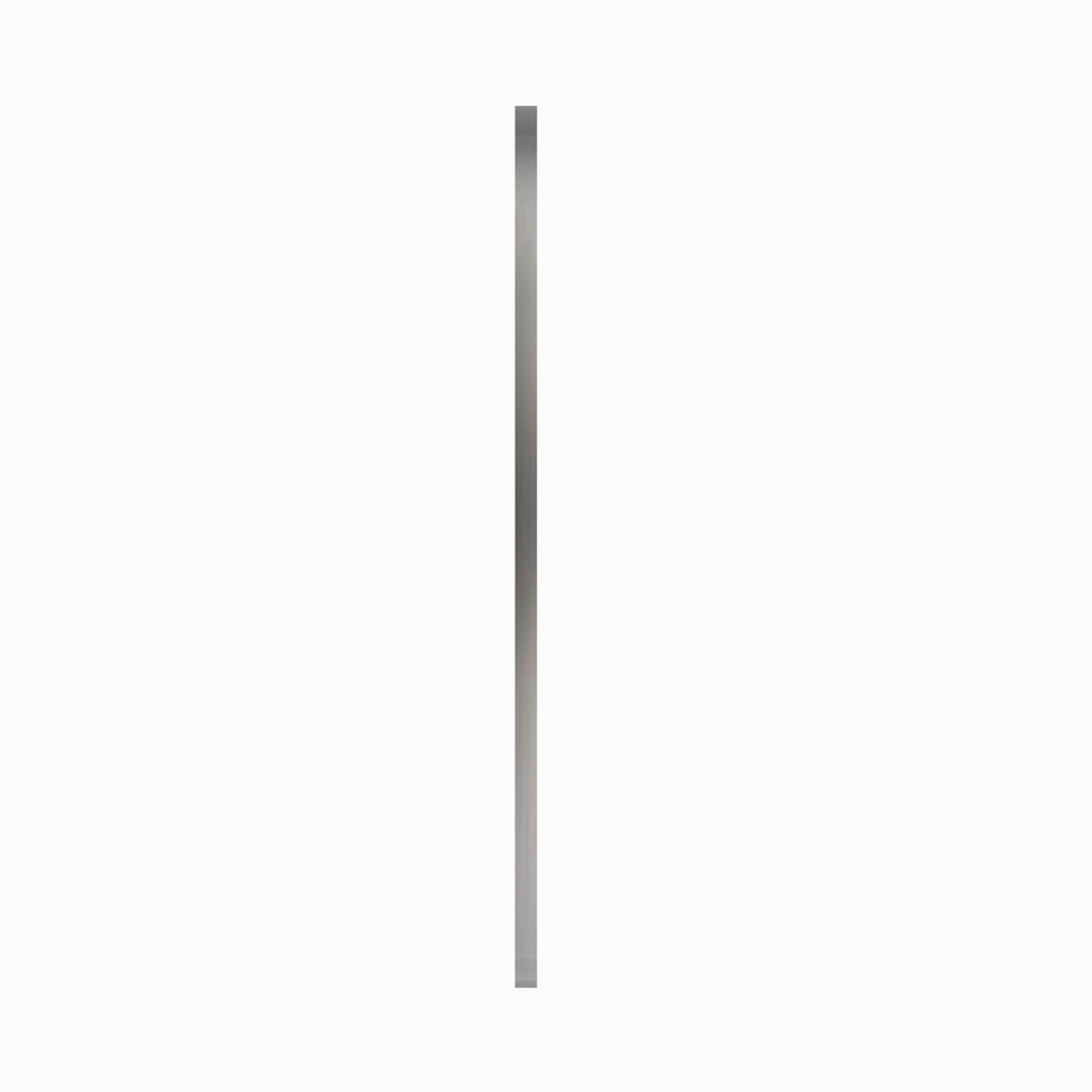

304-5673: УПОРНАЯ ШАЙБА

Description:
Thrust washers are flat washers that are located between a rotating surface and a stationary component. They support the axial load or side-to-side motion on a shaft and prevent movement along that shaft. The thrust washer provides a surface on which a bearing is supported. They are made to be used in high-wear applications.

Attributes:
• Manufactured to precise specifications and are built for durability, reliability, and productivity.
• Designed for better wear resistance.
• Hardness 40.5 - 47 HRC

Application:
Thrust Washers help distribute load and prevent the screw head from digging into the joint material and is extensively used in Cat 424B Backhoe Loader, 902, 906, and 908 Wheel Loader, CCS7, CP34, CP44, CP44B, CP5, CP7, CS34, CS44, CS44B, CS5, and CS7 Compactor, CP-323C, CP-433E, CS-323C, CS-423E, and CS-433E Paving Equipment.

• Washer Type: Flat

• Inside Diameter (in): 1.57

• Outside Diameter (mm): 26.92

• Outside Diameter (in): 2.36

• Inside Diameter (mm): 16

• Thickness (mm): 1.5

• Thickness (in): 0.06
