304-5341: ПАЛЕЦ

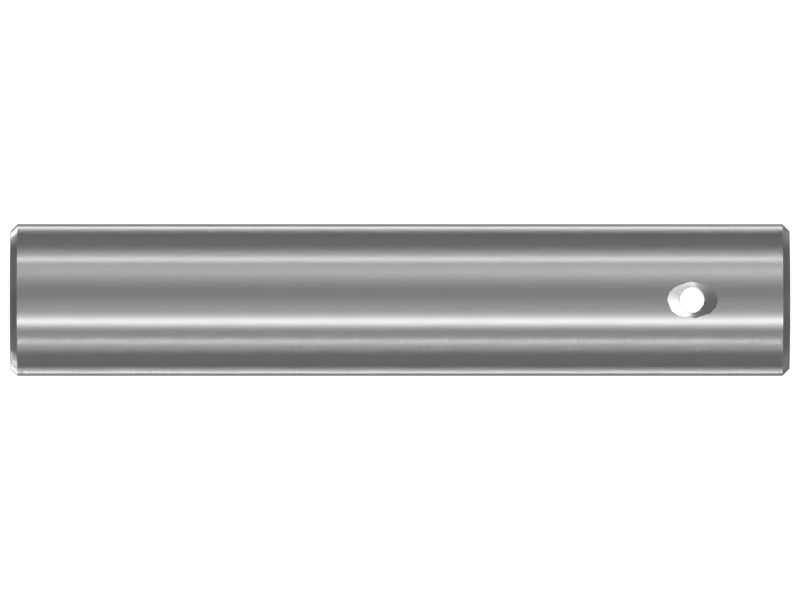

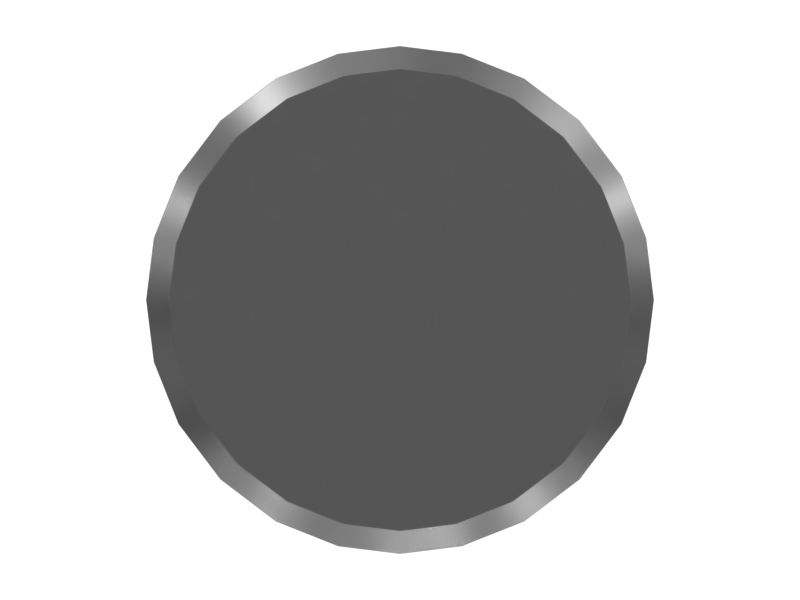

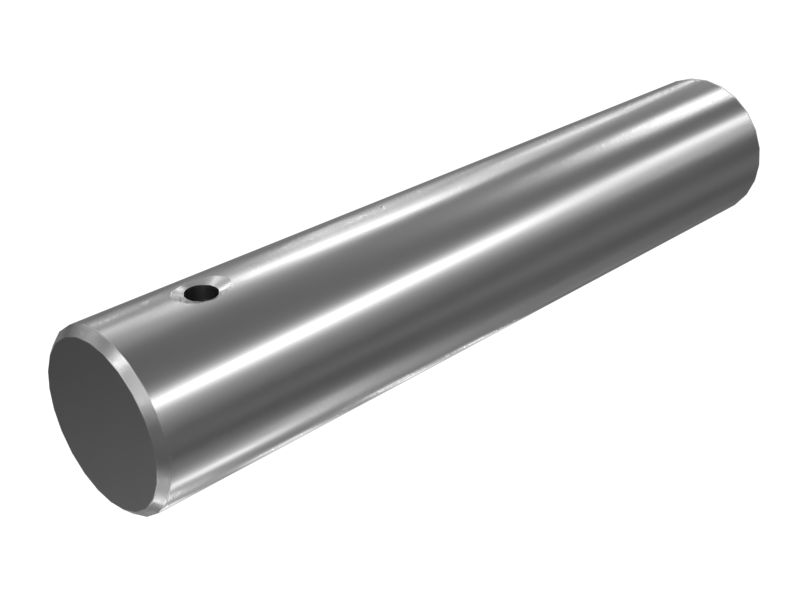

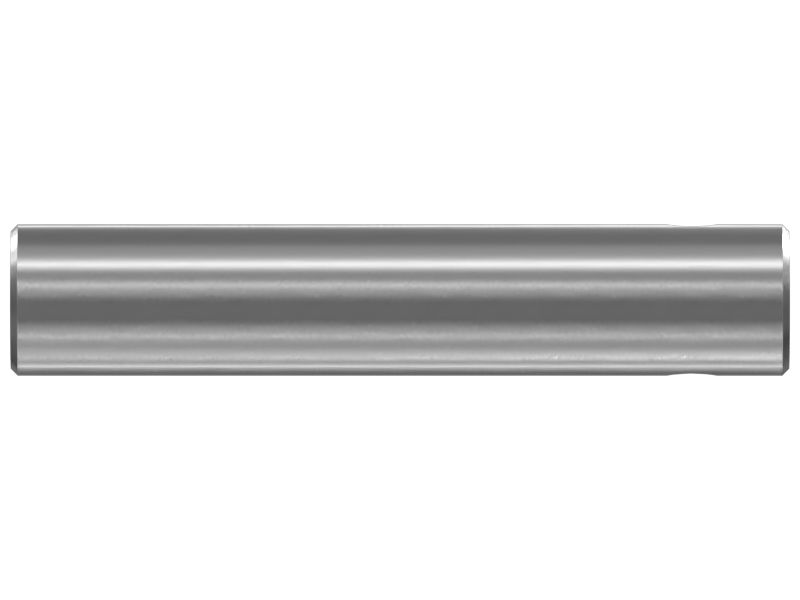

A Straight Solid Dowel Pin is used in connecting the primary hook in the quick coupler attachments. It is used to securely fasten the rocker arm linkage enabling efficient and safer attachment changes during operations. It is made from high-strength steel to withstand high temperatures and pressure and has a uniform diameter along its entire length, resulting in a consistent fit within mating parts. It is provided with a cross hole in its end to facilitate a locking mechanism that helps secure the Pin in its intended position.

Attributes:
• Provided with a chamfer angle of 45 degrees to reduce the risk of snagging on the edge of the hole
• Hardened to a Rockwell hardness scale value of C57, indicating its resistance to deformation

Applications:
A Straight Solid Dowel Pin is used to provide a secure connection between the primary hook and the rocker's arm in the quick coupler, enabling the operator to swiftly connect or disconnect attachments during operation.

• Pin Type: Straight Pin

• Material: STEEL,Low Alloy Steel,Alloy Chromium,Carbon Steel

• Plating: Hard Chrome Plated

• Pin Diameter (mm): 45

• Pin Diameter (in): 1.77

• Length (mm): 229

• Length (in): 9.02

• Removal Aid / Feature: No Puller Hole
