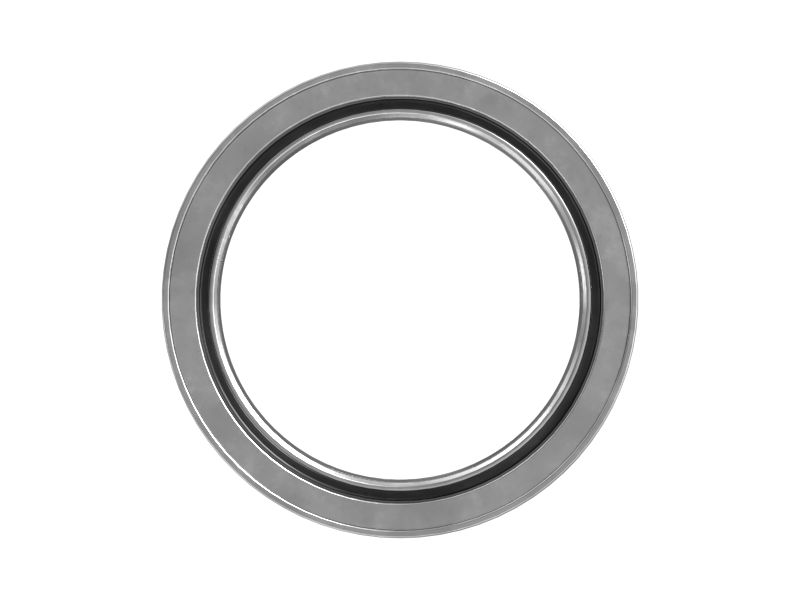

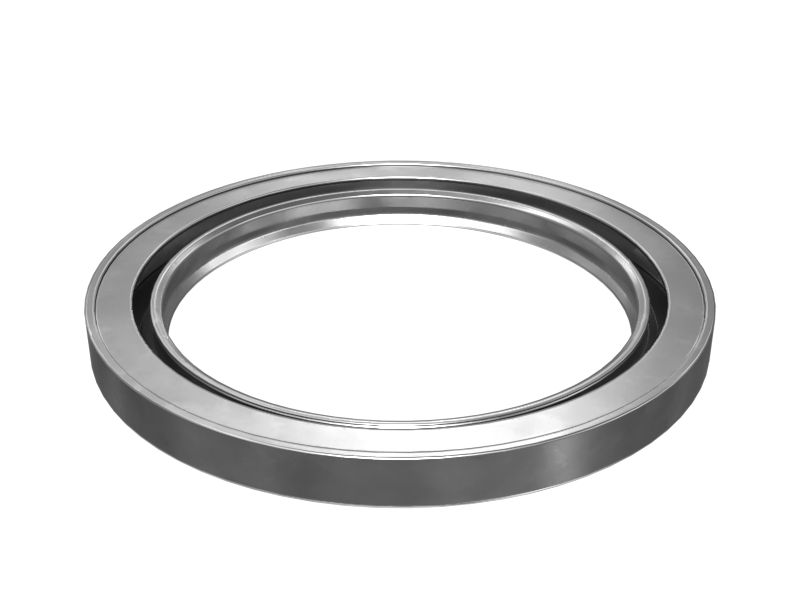

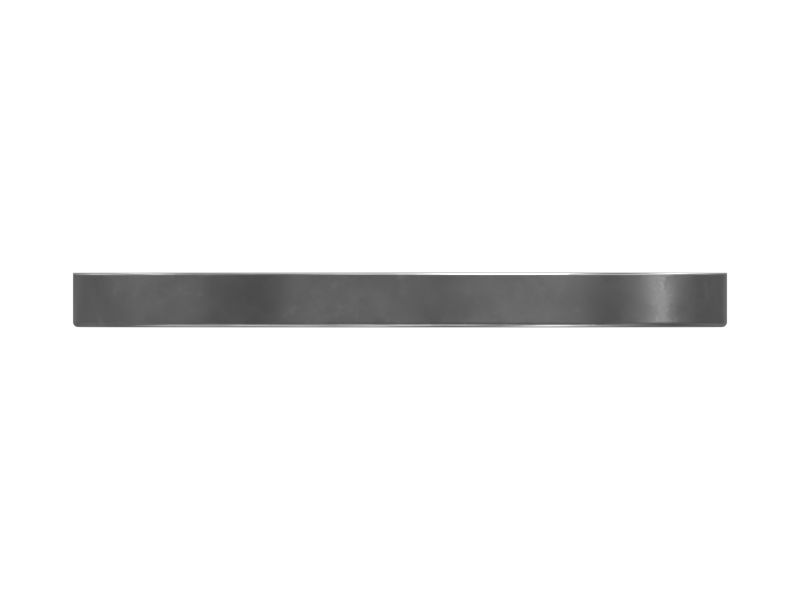

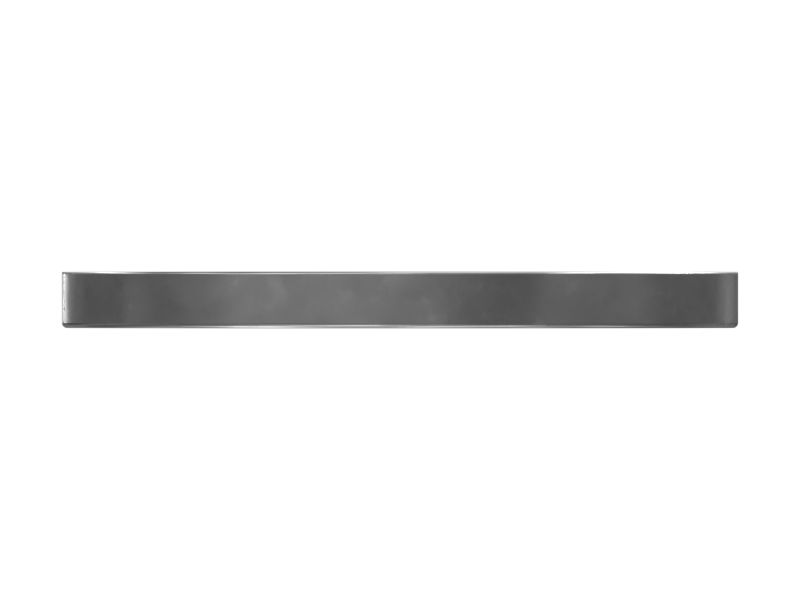

301-7497: УПЛОТНЕНИЕ

A Lip-Type Seal consists of a Double Metal Case made up of steel with the metal ring as the inner skeleton which provides structural stability to the oil Seal. It is designed to provide a tight seal against the Vibratory Support and cone-bearing. The spring on the lip of the oil seal provides support to the lip and prevents the lubricant from leaking outside and also prevents contaminants from entering. the dust lip works to protect the sealing lip while blocking dust and dirt from entering the bearing support.

Attributes:
Provide flexibility and resistance to heat and wear.
Has high tensile strength and abrasion resistance.

Applications:
A Lip-Type Seal is used to prevent the ingress of contaminants from the cone-bearing and Vibratory Support, mostly used in Cat® 325C Excavators, CP-533C, CP-563C, CS-431C, CS-433E, CS-531C, CS-531D, CS-533C, CS-563C, CS-563E, CS-573C, CS-573D, CS-573E, CS-583C, CS-583D and CS-583E Paving Equipment, CP-573E, CP-583E, CP16, CP17, CP64, CP74, CP74B, CP76B, CS16, CS64, CS74, CS74B, and CS76B Compactor.

• Inner Diameter (in): 4.25

• Inner Diameter (mm): 107.95

• Outer Diameter (in): 5.26

• Outer Diameter (mm): 133.5

• Thickness (in): 0.43

• Thickness (mm): 11

• Weight (kg): 0.12

• Weight (lb): 0.27
