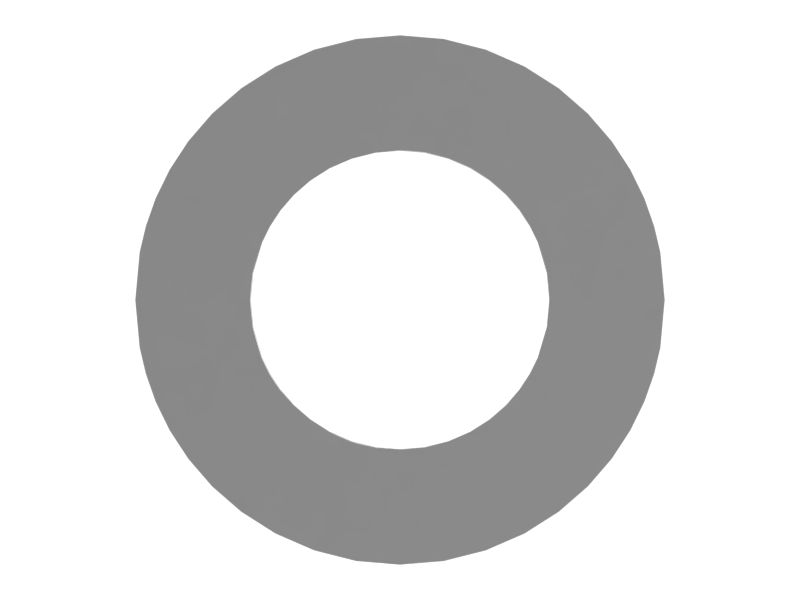

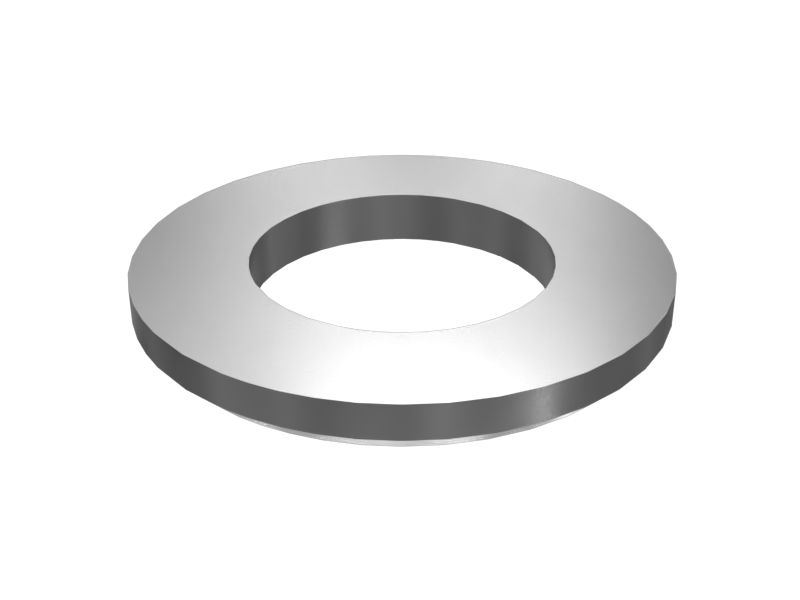

301-7370: ШАЙБА

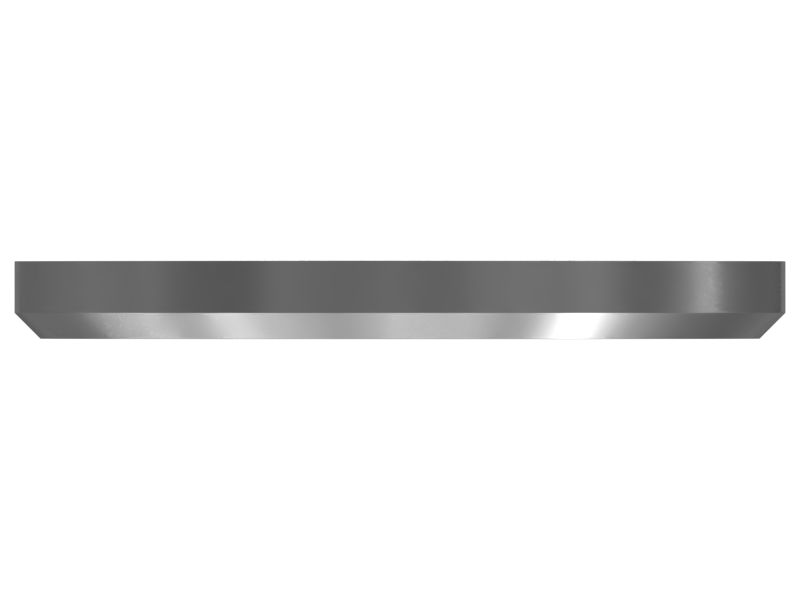

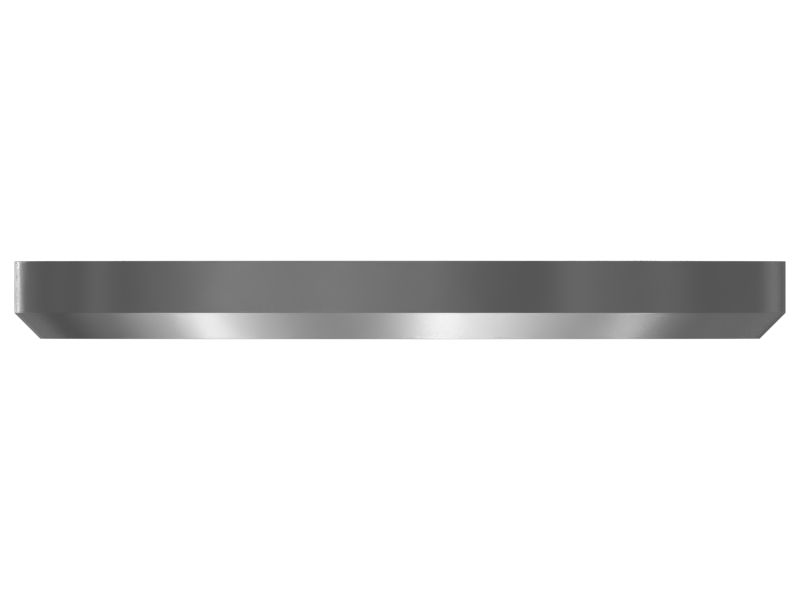

A bevel washer is having a sloping edge that tapers to a thin edge. This shape allows the washer to compensate for angular misalignments between two parts by tilting to one side or the other. By distributing the load over a larger surface area, the washer helps to prevent the fastener from digging into the surface or causing it to deform. The Bevel thickness of a washer can also vary, with thinner washers often used in applications where space is limited.

Attributes:
Provide a larger surface area to spread the load and prevent damage to the surface
Compensate for angular misalignments between two parts by tilting to one side or the other
Manufactured to precise specifications and are built for durability and reliability

Applications:
A washer is used to distribute the load of the fastener over a larger area, which helps to prevent damage to the surface being fastened and used in pumps and used in engines, hydraulic couplings, and generator couplings, mostly used in Cat® 3516E, G3516C, G3520B, G3520C and G3520E Generator Set, 6020B, 6030, 6040, 6050, 6060, 6060X and 6090 Excavators.

• Washer Type: Flat

• Coating: None

• Weight (kg): 0.01

• Weight (lb): 0.02
