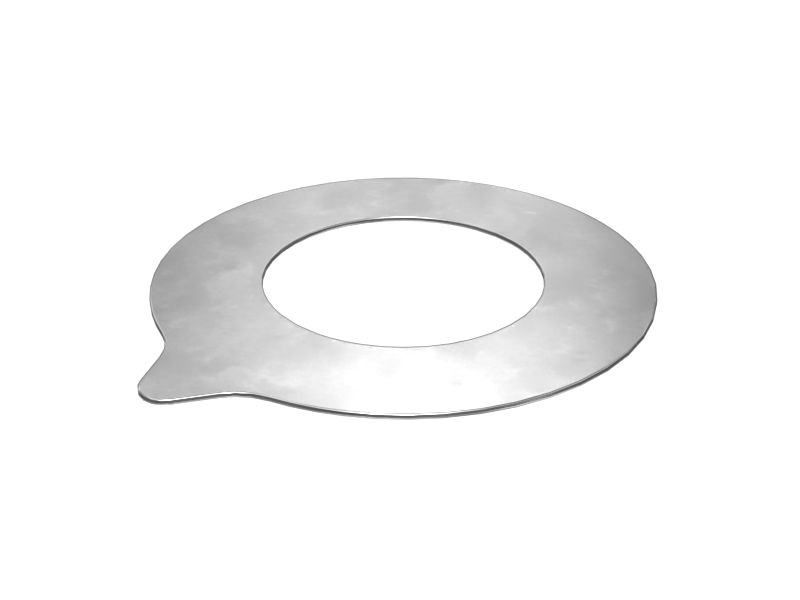

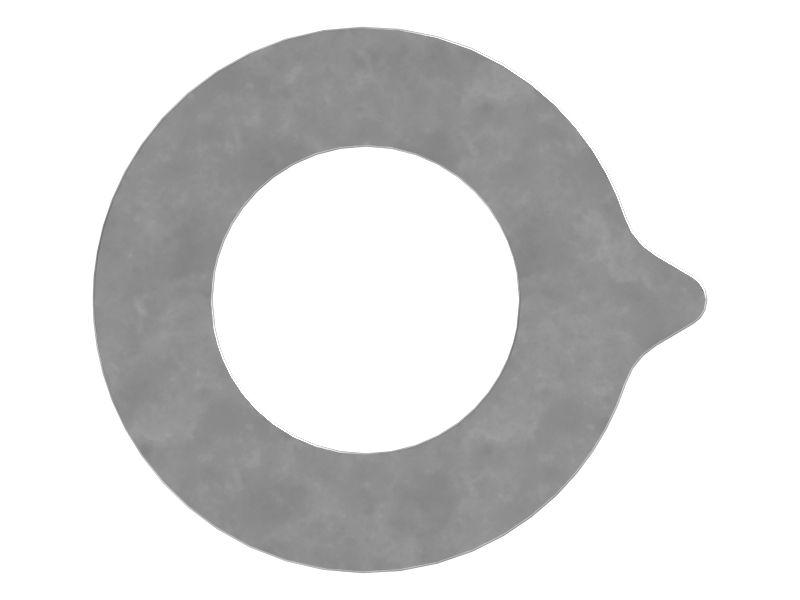

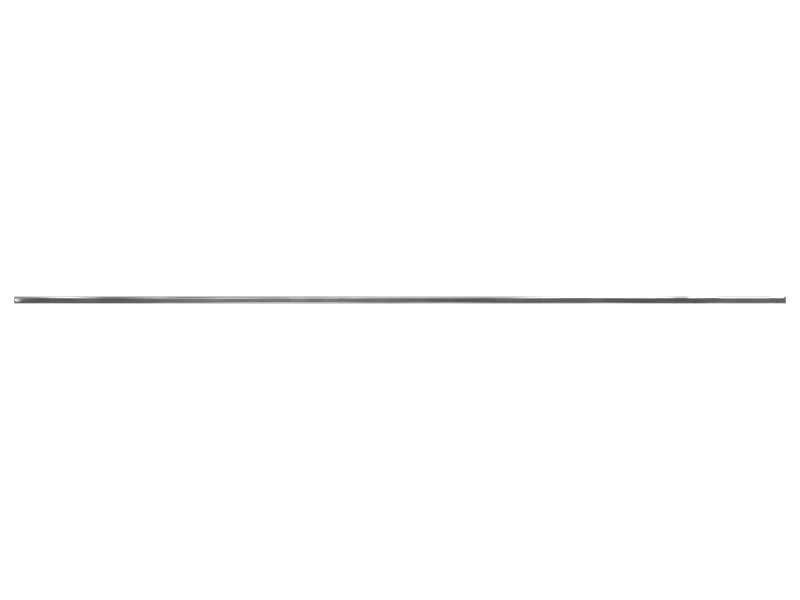

300-9136: ШАЙБА

A Bucket Pin Washer is a component used in Bucket Control to fix the Bucket Hand with the Body of the vehicle using the Pin. A Washer is a thin, flat, circular piece of metal or plastic with a hole in the center that is used to distribute the load of a fastener, such as a bolt or a screw. A Washer can also be used as a spacer to adjust the distance between two objects or surfaces.

Attributes:
Provided with Rockwell Hardness C48 - 58 with good wear resistance
Prevent excess movement of the components
Protect against damage by distributing the load uniformly and reducing the tension on the fastener
Provide high strength and wear resistance

Applications:
A Bucket Pin Washer is used in the Bucket Control with other fasteners, mostly used in Cat® 963, 963D, 963K, 973, 973D, and 973K Track Loader, C13 Engine.

• Inside Diameter (in): 3.54

• Inside Diameter (mm): 90

• Material: Steel,Carbon Steel

• Outside Diameter (in): 6.3

• Outside Diameter (mm): 160

• Thickness (in): 0.06

• Thickness (mm): 1.5

• Weight (kg): 0.17

• Weight (lb): 0.37
