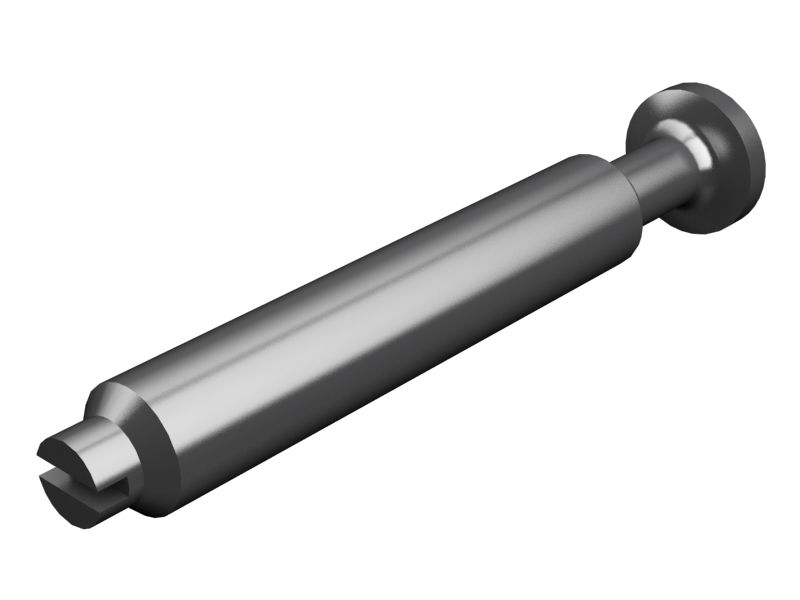

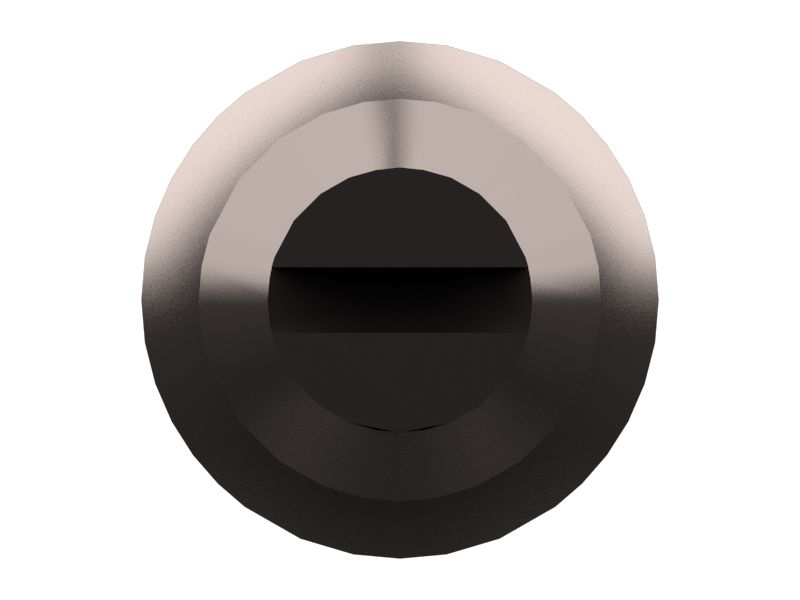

2W-9996: ВИНТ

Description:
The Low idle stop screw is a component responsible for regulating the engine speed and maintaining a consistent and controlled idle speed. The low idle stop screw is one of the adjustment screws on the governor that controls the minimum idle speed of the engine. It is to limit the movement of the throttle lever or linkage at idle, preventing the engine from running too fast or too slow.

Attributes:
• Withstand the engine's operating conditions.
• Designed to increase or decrease the idle speed.
• Provide proper adjustment.

Applications:
The Low idle stop screw allows the engine to run smoothly and at a consistent speed when the machine is moving at low speeds. It is extensively used in Cat 120, 120B, 120B, 120G, 120K, 12E, 12G, 12H, 12K, 130G, 140G, 140H, 140K, 143H, 14G, 160G, 160H, 160K, 163H, 16G and 16H Motor Grader, 245, 245B, 245D, 304.5, 330, 375 and 5080 Excavators, 3304, 3304B, 3306, 3306B, 3406, 3406B, 3406C, 3406C, 3408, 3408B, 3408C and 3412, 3412C Generator Set, 3306, 3306B, 3406, 3406B, 3406B, 3406C, 3406C, 3408E and D333C, 3306 Engine (Piston), 578 and 587R Pipelayer, 621, 621B, 621E, 621F, 621S, 623B, 623E, 623F, 627B, 627E and 627F Wheel Tractor Scrapers, 621B, 621E, 623E and 627E Scraper, 814B and 824C Wheel Type Tractor, 825C and 826C Compactor, 916, 926, 926E, 936, 936E, 936F, 966C, 966D, 966E, 980C, 980F, 980G, 980S, G916, G926, G936, IT18, IT18B, IT28 and IT28B Wheel Loader, C15 Engine-General Platform (C15), D35-HP, D350E, D400, D400D, D400E and D40D Articulated Truck, D5H Skidder, D5H, D8N and D8R Track Type Tractor, PM-465, RM-250C, RM-350, RM-350B, RR-250, RR-250B, SM-350, SS-250 and SS-250B Paving Equipment, TH28, TH38, TR35 and TR43 Powertrain.

• Diameter (in): 0.43

• Diameter (mm): 10.8

• Material: Steel,Carbon Steel

• Overall Length (in): 2.3

• Overall Length (mm): 58.5

• Weight (kg): 0.02

• Weight (lb): 0.05
