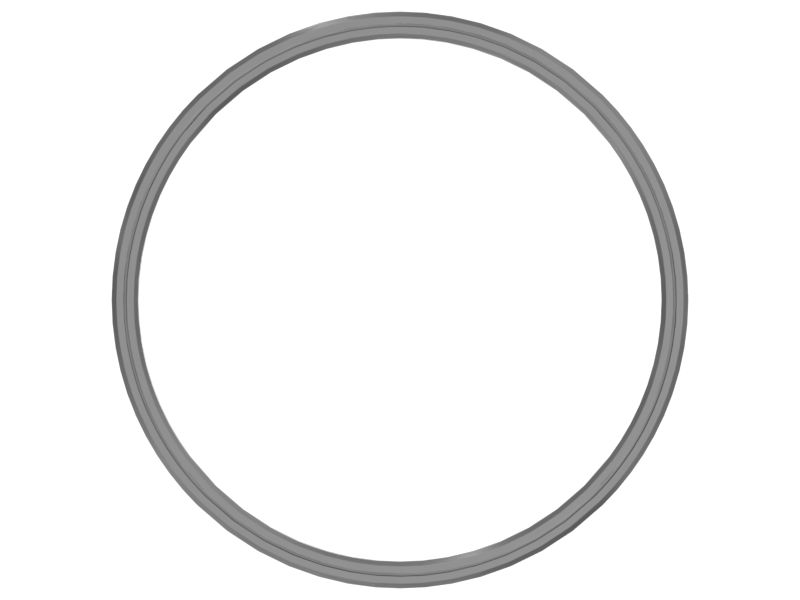

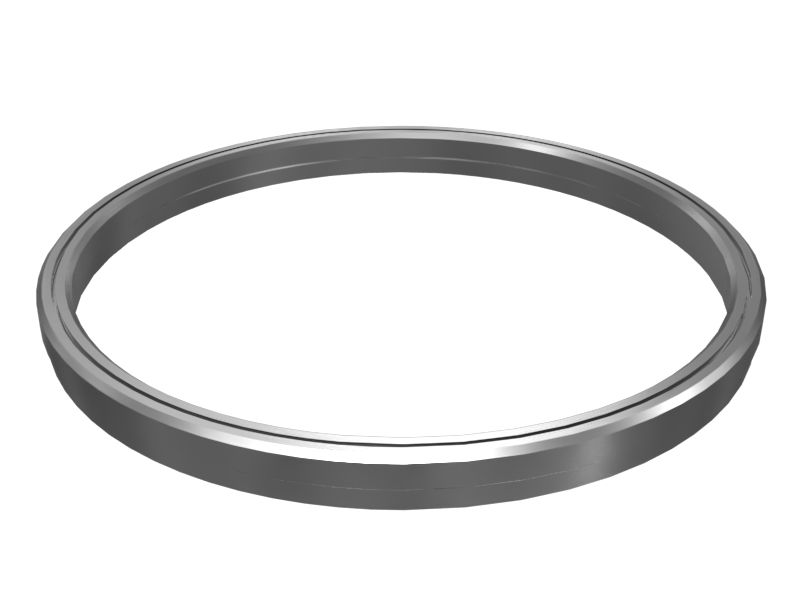

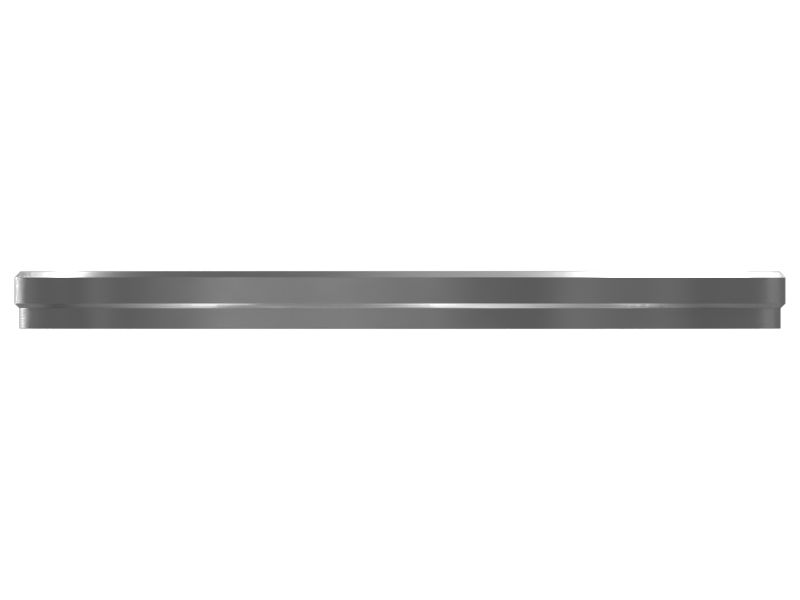

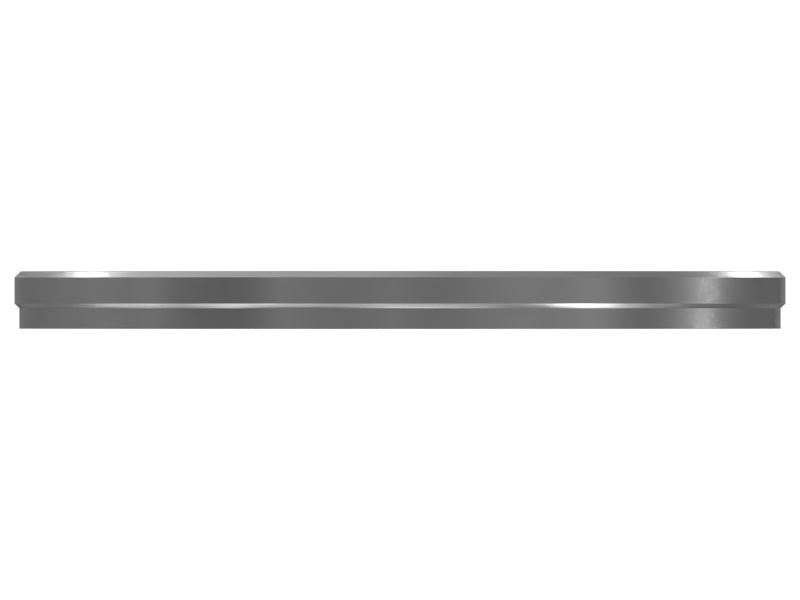

2U-5379: УПЛОТНЕНИЕ

A Single-Acting Rod Seal is designed to seal in one direction only, usually in the outward direction. which consists of a basic sealing element made up of plastic and energizing O-Ring inside which is made up of rubber. When the hydraulic unit is pressurized, the piston moves outward and presses against the seal, which deforms and creates a seal between the rod and the cylinder wall. and it is resistant to hydraulic fluid and can withstand the pressures and temperatures of the hydraulic unit.

Attributes:
Provide flexibility and resistance to heat and wear.
Provides effective sealing of the Hydraulic Cylinder.

Applications:
A Single-Acting Rod Seal is a type of hydraulic seal that is used to prevent fluid leakage between the piston rod and the cylinder in a hydraulic unit, mostly used in Cat® D250B, D25C, D25D, D300B, D300D, D30C, D30D, D35-HP, D350C, D350D, D350E, D35C, D400, D400D, D400E, D40D, D44, D44B, D550 and D550B Articulated Truck.

• Inner Diameter (in): 5

• Inner Diameter (mm): 127

• Outer Diameter (in): 5.5

• Outer Diameter (mm): 139.7

• Thickness (in): 0.41

• Thickness (mm): 10.3

• Weight (kg): 0.03

• Weight (lb): 0.06
