2P-3261: ГАЙКА

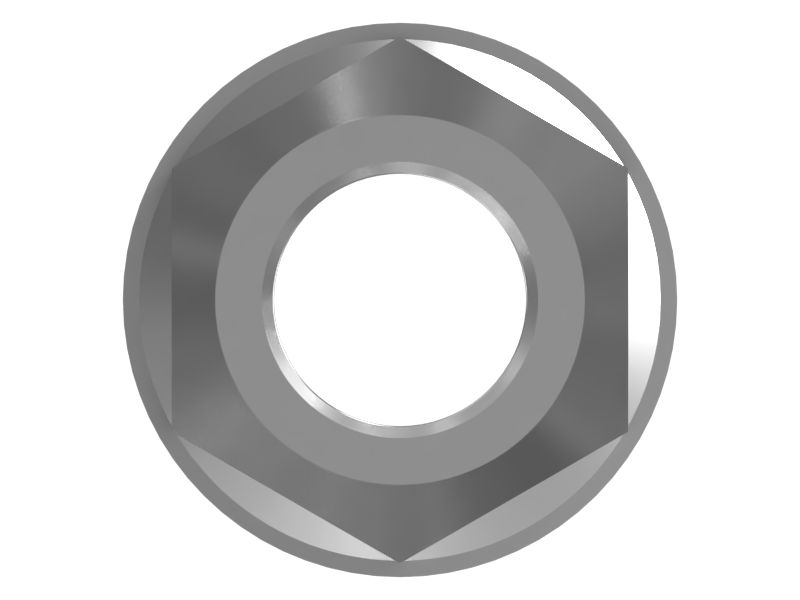

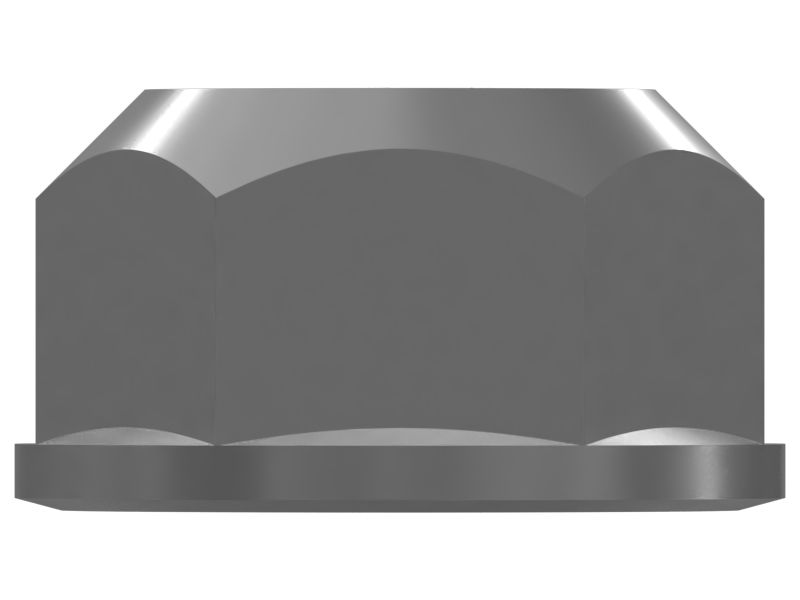

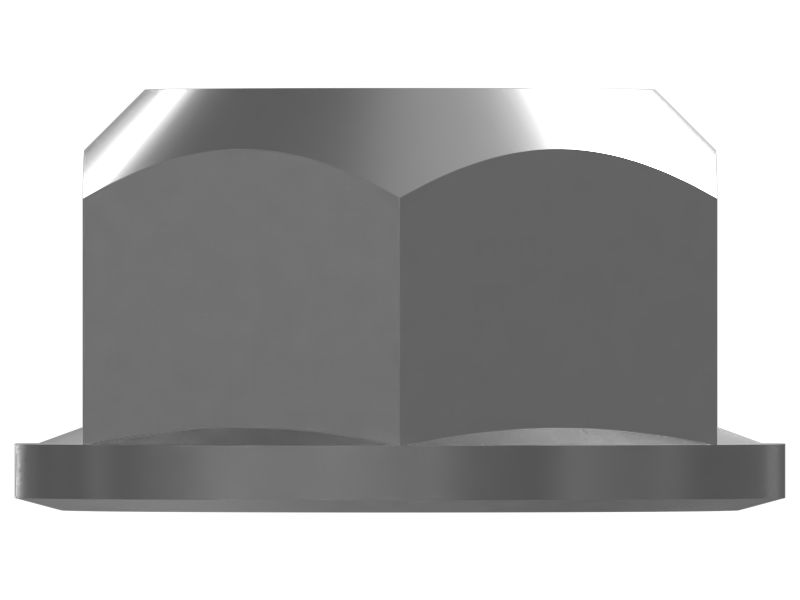

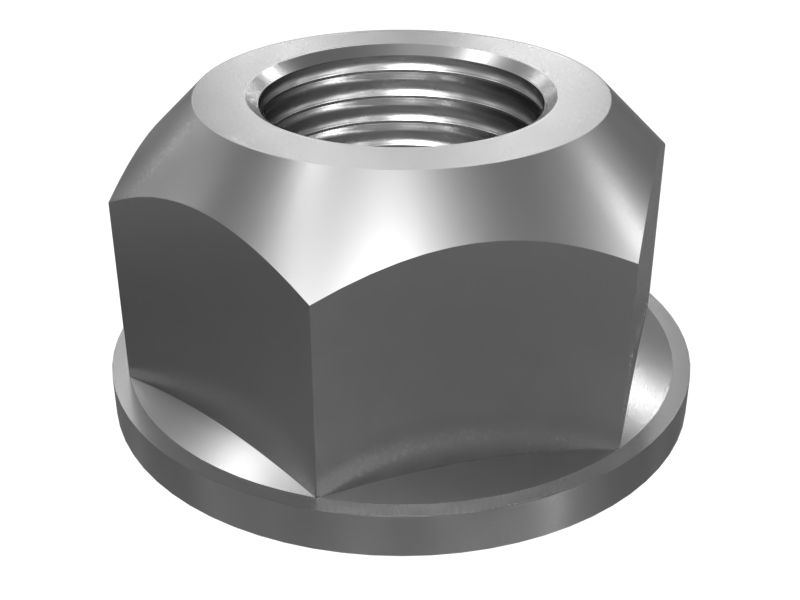

A flanged hexagonal nut is a type of fastener that combines the properties of a hexagonal nut and a washer. The flange provides a larger surface area for the nut to rest against the surface it's being fastened to, distributing the load over a larger area and reducing the risk of damage or deformation to the surface.

Attributes:
Flange helps to prevent the nut from loosening due to vibration.
Hexagonal shape of the nut provides a secure grip.

Applications:
A Flanged Hexagonal Nut is used to securely fasten and hold two or more objects together, mostly used in Cat® Motor Grader, Engines (Piston), Excavators, OEM Applications, Generator Set, Backhoe, Wheel Tractor Scrapers, Skidder, Pipelayers, Scrapers, Track Type Tractor, Truck, Wheel Type Tractor (For Dozer), Compactor, Wheel Loader, Track Loader, Tree Harvester, Powertrain, Engine-General Platform (C15), Paving Equipment, Articulated Truck, Drills, Material Handler, Wagon.

• Flange Diameter (in): 0.69

• Flange Diameter (mm): 17.45

• Nut Type: Hex with Captive Washer

• Hex Size (in): 0.56

• Thread Size (in - TPI) (in): 3/8-16

• Hex Size (mm): 14.29

• Material: Steel,Carbon Steel,Alloy Mixed

• Thread: 3/8 - 16

• Weight (kg): 0.01

• Weight (lb): 0.01

• Thread Size (dia x pitch) (mm): 3/8x16

• Coating: Zinc

• Hand of Thread: RH
