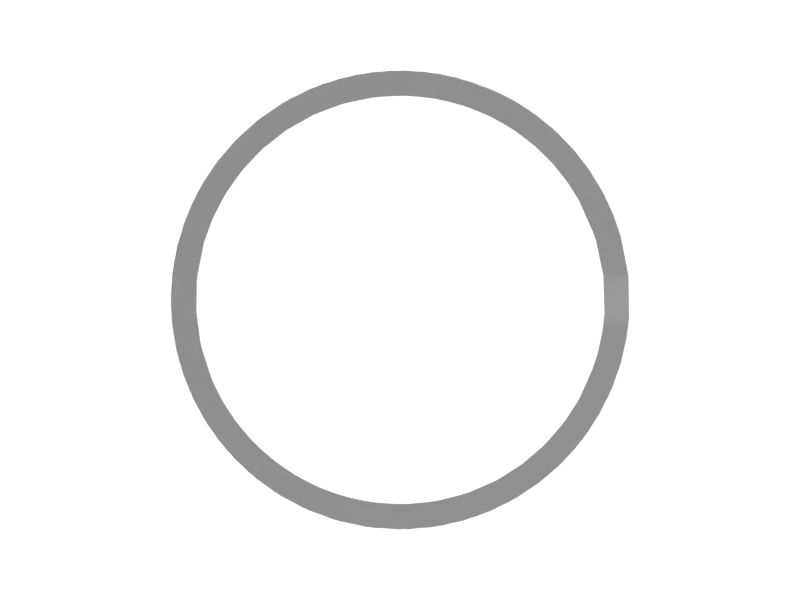

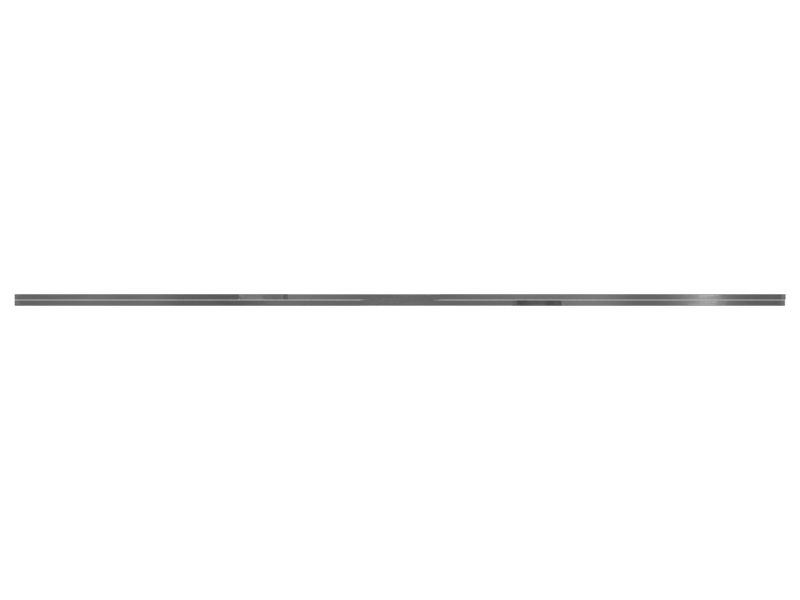

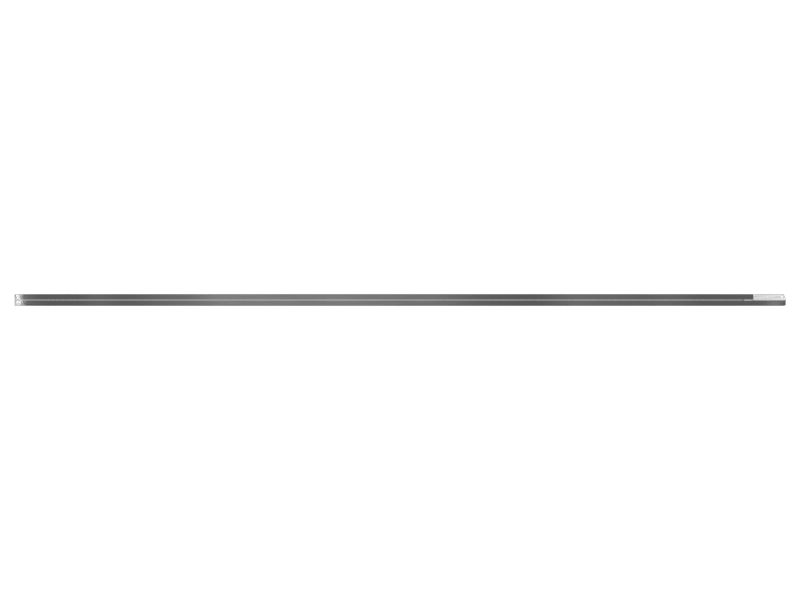

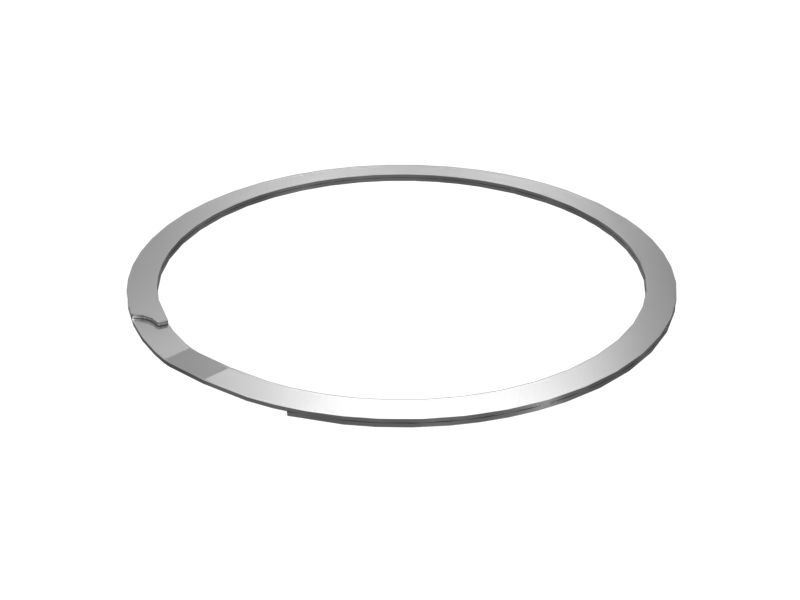

2P-2913: КОЛЬЦО

An Internal Retainer Ring, also known as an internal snap ring, is a type of fastener. This kind of retaining ring has an outside design that enables it to fit around a unit's outer diameter. Its primary job is to stabilize the position and holding of other components, preventing axial movement and guaranteeing accurate alignment.

Attributes:
Withstands high-pressure conditions without compromising the integrity
Provides efficient load distribution across the retaining groove

Applications:
The Internal Retainer Ring is used in planetary transmissions to maintain the positioning and alignment of parts, this is mostly used in Cat® 621, 621H, 621K, 627, 627E, 627F, 627G, 627H, 627K, 637, 637E, 637G and 637K Wheel Tractor Scrapers, 627, 627B, 627E, 627F, 627G, 637, 637B, 637D, 637E, 637F, 637G, 637H, 639D, and 639E Scraper.

• Axial Thickness (mm): 2.18

• Inner Diameter (in): 5.29

• Inner Diameter (mm): 134.42

• Outer Diameter (in): 5.92

• Outer Diameter (mm): 150.26

• Radial Thickness (mm): 7.92

• Weight (kg): 0.06

• Weight (lb): 0.13

• Material: Alloy Mixed
