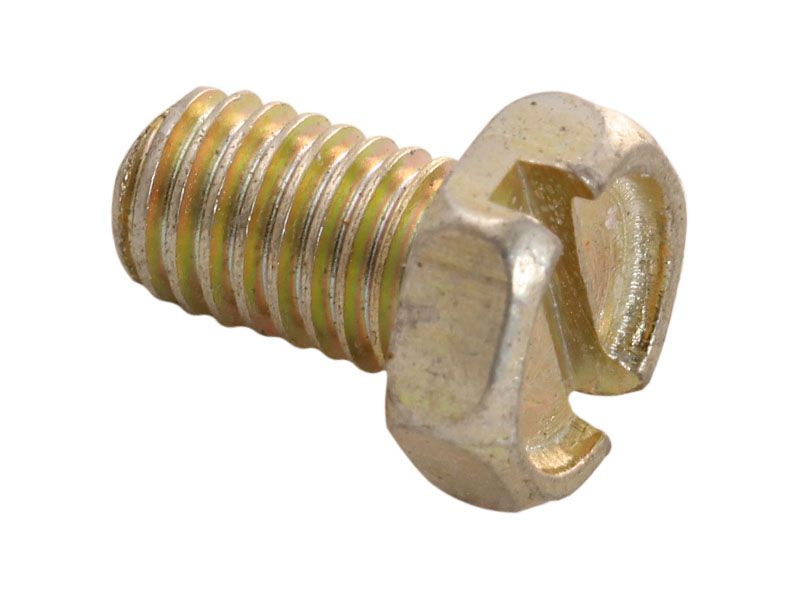

2L-5317: ВИНТ

Description:
A machine hex head screw is a type of fastener designed for securing components. It allows it to be tightened or loosened using a compatible hex wrench or socket. The hex head design provides a larger contact area and more torque transfer compared to other screw head types. It is used to assemble and mount various components of a cab heater, such as the heater core, blower motor, control panel, and housing.

Attributes:
• Designed to provide strength and corrosion resistance
• Provide secure and reliable connection.
• Withstands high temperatures.

Applications:
A machine hex head screw is used to securely fasten the heater core to the housing, ensuring proper alignment and sealing. It is extensively used in Cat 120G, 12G, 130G, 140G, 14G and 16G Motor Grader, 205, 205B, 206, 206B, 211, 211B, 212, 212B, 213, 213B, 214, 214B, 215, 215B, 224, 224B, 225, 225B, 225D, 229, 229D, 231D, 235, 235B, 235C, 235D, 245, 245B, 245D, 304.5, E70B, M312, M315, M318 and M320 Excavators, 227 and FB508 Tree Harvester, 416, 416B, 426, 426B, 428, 428B, 436, 436B, 436C, 438, 438B, 446 and 446B Backhoe, 508, 517, 520D, 522D, 527, D4H and D5H Skidder, 5650 Turbine Engine, 613B, 613C, 615, 615C, 621B, 623B, 627B, 631D, 633D, 637D, 639D, 651E and 657E Wheel Tractor Scrapers, 613C, 615C, 621B, 651E and 657E Scraper, 65, 65B, 75, D10, D10L, D10N, D10R, D11N, D11R, D3B, D3C, D4B, D4C, D4E, D4H, D4L, D5B, D5C, D5H, D6D, D6E,D6G, D6H, D7G, D7H, D8K, D8L, D8N, D8R, D9H, D9L, D9N, D9R and D9T Track Type Tractor, 768C, 769C, 771C, 772B, 773B, 775B, 776, 776B, 776C, 777, 777B, 777C, 783B, 784B, 785, 785B, 787B, 789, 789B, 793, 793B and 793C Truck, 772 and 776 Wagon, 824C and 834B Wheel Type Tractor, 836 Compactor, 910E, 910F, 910F, 916, 926, 926E, 936, 936E, 936F, 950B, 950E, 950F, 950G, 966D, 966E, 966F, 980F, 988B, 988F, 992C, 992D, 994, 994D, G916, G926, G936, IT12B,IT12F, IT12F, IT14B, IT14F, IT18, IT18B, IT28 and IT28B Wheel Loader, 931B, 931C, 935B, 935C, 943, 953, 953B, 955L, 963, 963B, 973, 977L and 983B Track Loader, D250B, D25D, D300B, D30D, D350D, D350E, D400D, D400E and D40D Articulated Truck, D311 and D315 Engine (Piston), M30, M40, M50, M50D, T25D, T30D, T35D, TC40D, V1100 CTH, V25D, V30D, V35D, VC40D, V40D, V50D, V550, V620, V700,V800, V900CH, V925, V925LH and VC60D Lift Truck, TH514C Telehandler - Tier Iiib, TR13, TR28, TR35 and TR43 Powertrain.

• Hex Size (in): 0.31

• Hex Size (mm): 7.9

• Length (in): 0.31

• Length (mm): 7.9

• Material: Steel,Alloy Mixed

• Weight (kg): 0.002

• Weight (lb): 0.004

• Thread Size (in - TPI) (in): #10-32

• Thread Size (dia x pitch) (mm): No. 10 (.190)x32

• Coating: Zinc

• Class or Grade: ASME B18.6.3 (60 ksi)

• Hand of Thread: RH
