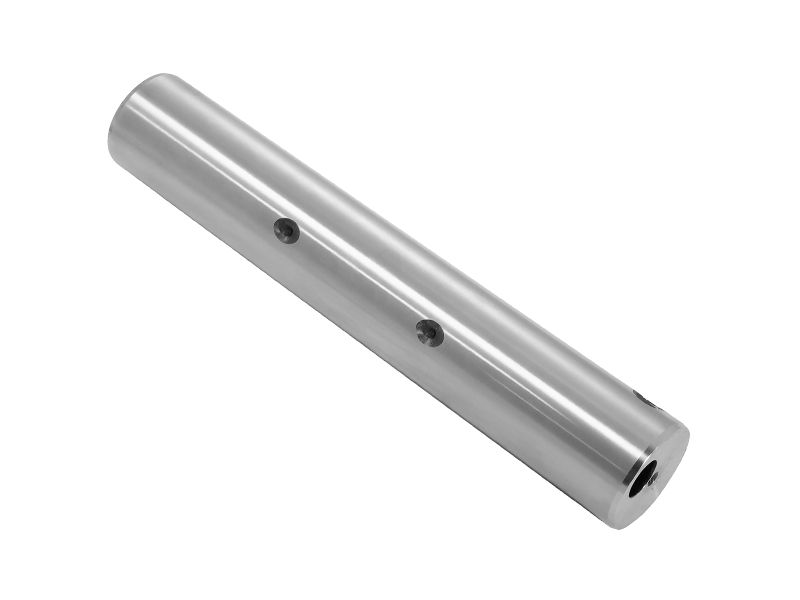

2K-6078: ПАЛЕЦ

A Straight Solid Dowel Pin is used in mechanical linkages to connect two or more components. The purpose of a linkage pin is used to provide a secure and movable joint between the linked components, allowing for controlled motion or rotation. The pin is inserted through aligned holes in the components, holding them together while still allowing relative movement.

Attributes:
• Withstand the harsh operating conditions caused during the movements
• Manufactured to precise specifications and are built for durability, and reliability

Applications:
A Straight Solid Dowel Pin is used to ensure efficient and controlled movement of the connected components with proper fit and function within the linkage assembly, preventing any dislodgement of the connected component during operation.

• Pin Type: Straight Pin

• Material: STEEL,Carbon Steel

• Plating: Unplated

• Pin Diameter (mm): 57

• Pin Diameter (in): 2.24

• Length (mm): 330

• Length (in): 12.99

• Removal Aid / Feature: No Puller Hole

• Internal Groove: Greased through pin
