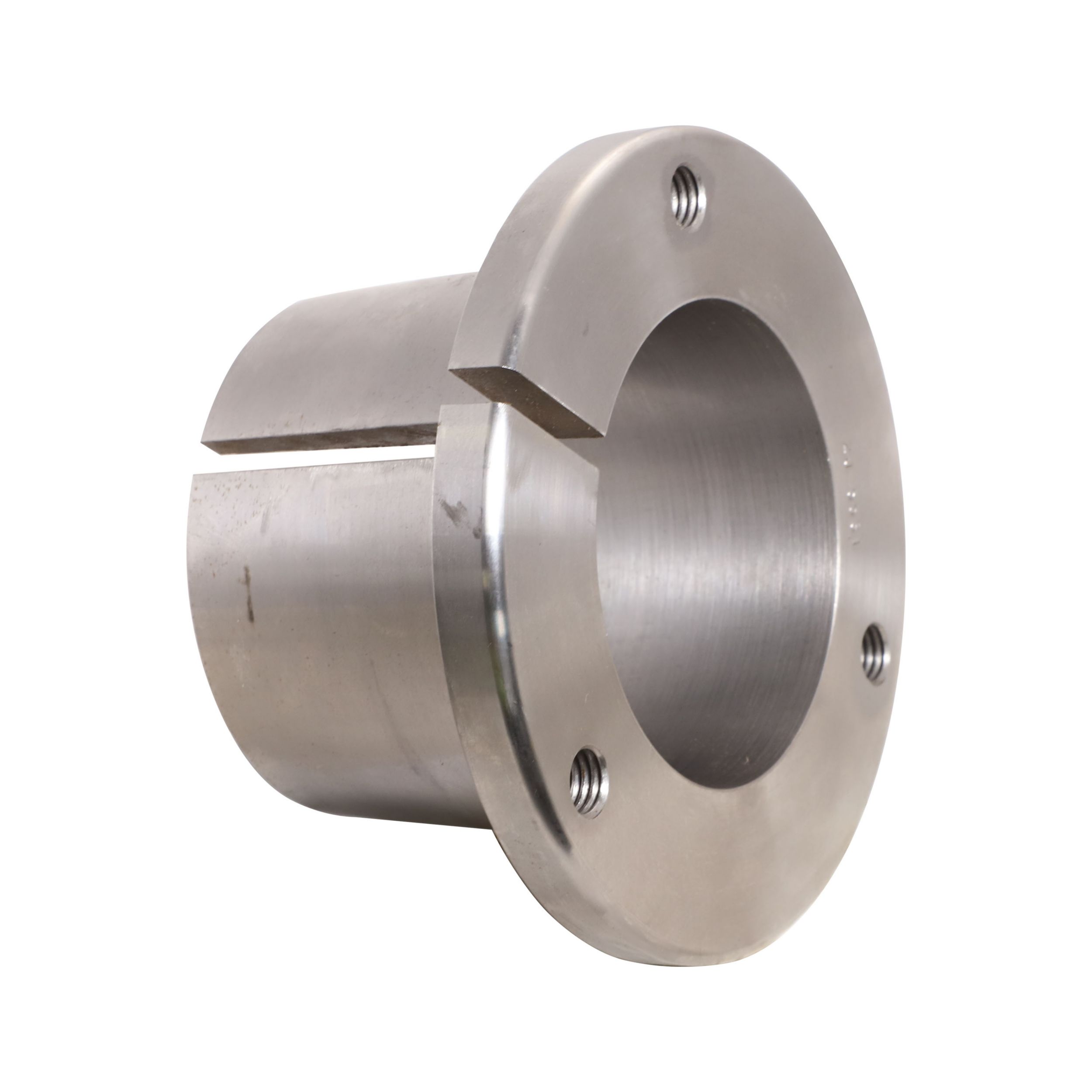

2J-5531: ОБОЙМА

The Shaft Support Collar establishes a fixed reference point or limit for the movement of a pin component. The shaft support collars are cylindrical, with an inner diameter slightly larger than the diameter of the pin they are intended to be mounted on. The collar's position can be adjusted along the length of the shaft to achieve the desired stopping point, allowing for flexibility.

Attributes:
• Ensure precise alignment and positioning of components, preventing overtravel or misalignment
• Provide additional reinforcement and stability, acting as a physical barrier to prevent further movement

Applications:
The Shaft Support Collar is used to prevent the excessive movement or displacement of a component beyond a specified point and fixing a shaft support collar involves sliding it onto the pin at the desired location and tightening the set screw or clamp mechanism to secure it in place and is used in different parts like engine enclosure door, fuel tank base, control panel, and control support.

• Material: Carbon Steel
