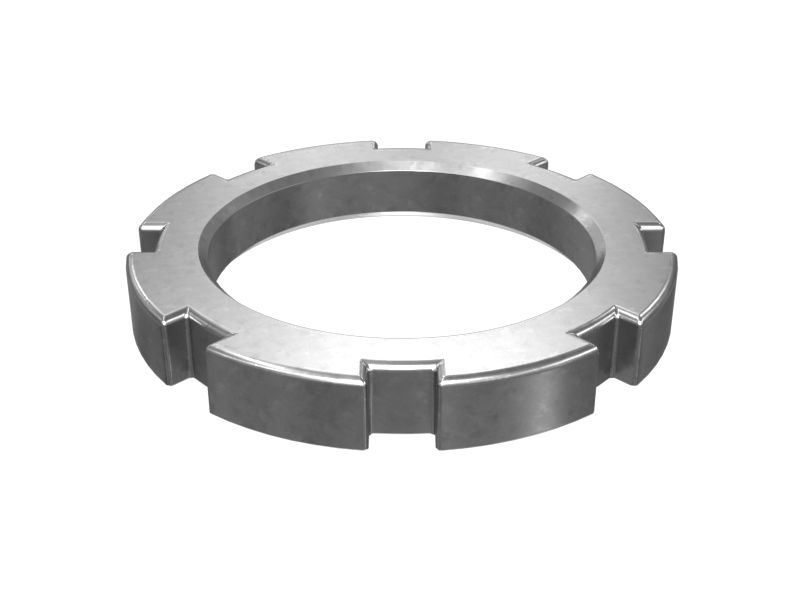

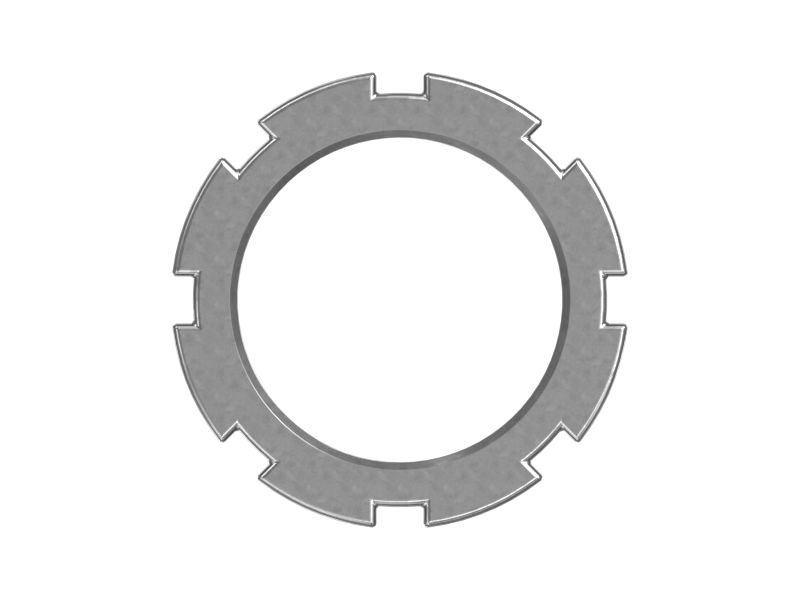

2G-6396: ГАЙКА

Description:
The Final Drive Spanner Nut can be used to secure the chain sprocket to the drive shaft or wheel hub, ensuring that the sprocket rotates with the shaft or hub and transmits power to the chain. They are designed to be tightened and loosened with a special tool called a spanner wrench, which has two pins or prongs that fit into slots on the nut. It is typically made from high-strength materials like steel or titanium, which makes it durable and resistant to wear and damage.

Attributes:
• Designed to withstand the torque without becoming damaged or loosening.
• Provided with 8 slots of 0.41 inches, which provide a stable connection between the components.

Applications:
The Final Drive Spanner Nut helps to ensure proper alignment and efficient power transmission, mostly used in Cat 120, 120C, 120G, 120H, 120K, 12H, 12K, 135H, 140H, 140K, 160K, SEM915, SEM915F, SEM917, SEM917F, SEM918 and SEM919F Motor Grader, 924F Wheel Loader, TR13, TR16 and TR28 Powertrain.

• Inner Diameter (in): 2.8

• Inner Diameter (mm): 71.12

• Nut Type: Round (Spanner or Bearing)

• Outer Diameter (in): 3.94

• Outer Diameter (mm): 100.08

• Thread Size (in - TPI) (in): 23/8-12

• Thread: 2 7/8 - 12

• Weight (kg): 0.3

• Weight (lb): 0.65

• Thread Size (dia x pitch) (mm): 2.875x12

• Hand of Thread: RH

• Material: Alloy Iron
