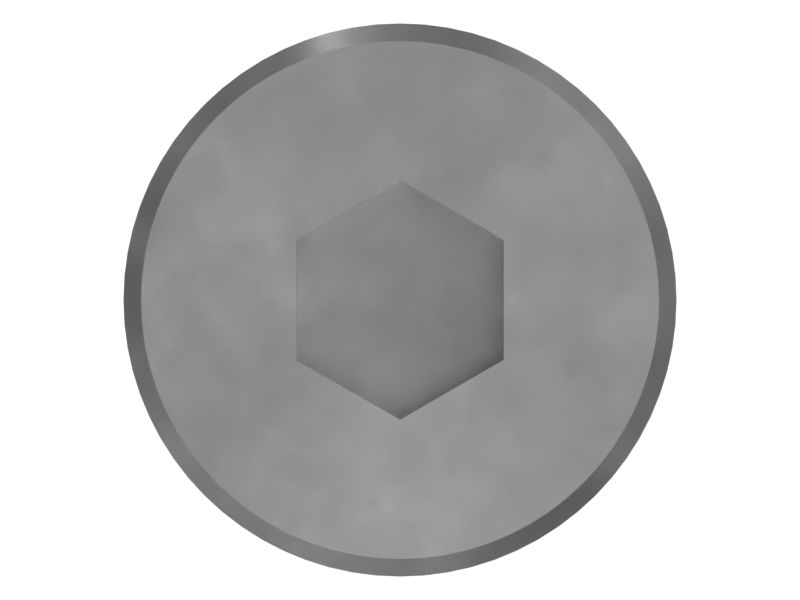

289-6409: БОЛТ ЗАПЛЕЧИКА

The Shoulder Bolt is designed to facilitate smooth rotation and movement while maintaining accurate alignment, featuring a cylindrical shoulder between the head and the threaded portion, this bolt serves as a pivot point within mechanical systems. Its unique design ensures that the bolt rotates smoothly while maintaining alignment, thereby reducing friction and wear on surrounding components. The shoulder portion provides an accurate bearing surface, allowing for consistent and reliable movement even under high loads and high-speed operation.

Attributes:
• Precision threading for secure fastening.
• Withstands high loads and impacts.
• Resistant to mechanical stresses and vibrations.
• Resistance to wear and tear.

Applications:
The Shoulder Bolt is used in the slide platform to fasten the ball bearing to provide a secure and accurate pivot point on the bearing surface, supporting controlled axial movement and alignment within assemblies.

• Thread Size (dia x pitch) (mm): 5/8x11

• Class or Grade: ASTM A574 (180 ksi)

• Coating: Zinc

• Hand of Thread: RH

• Material: Alloy Steel,Alloy Zinc
