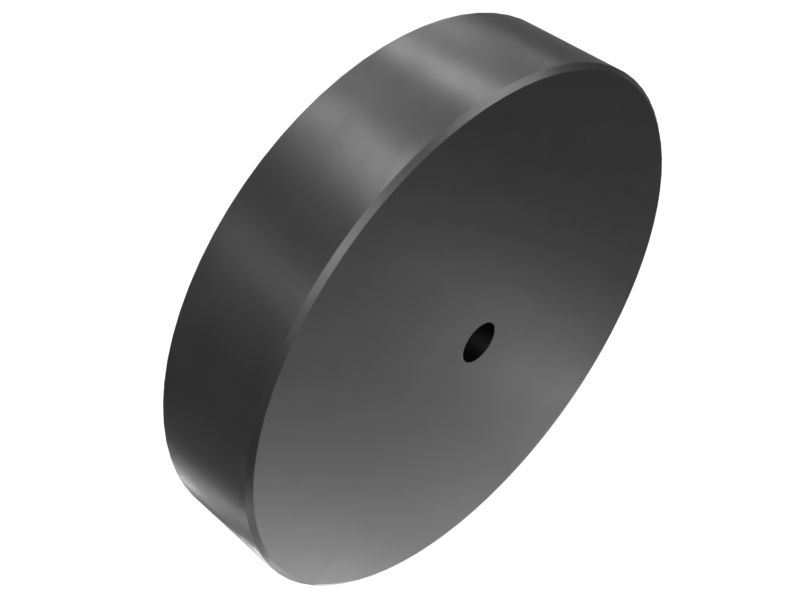

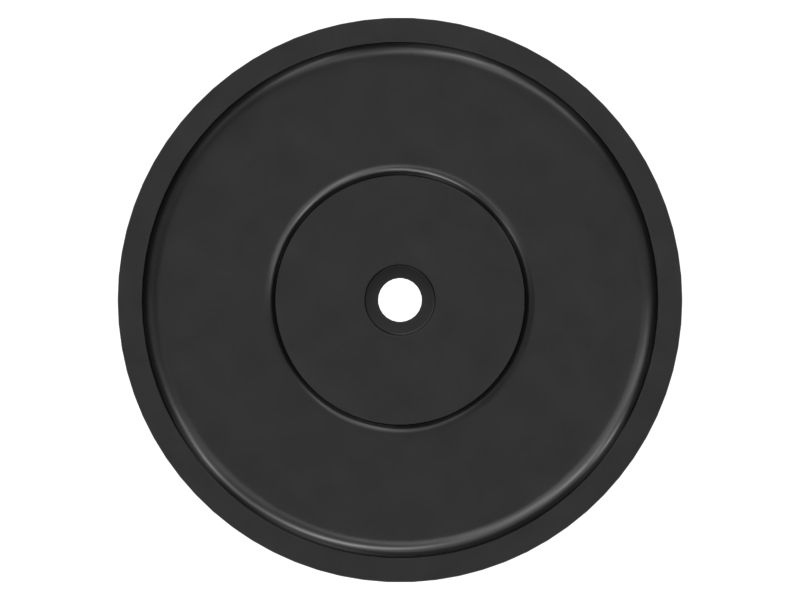

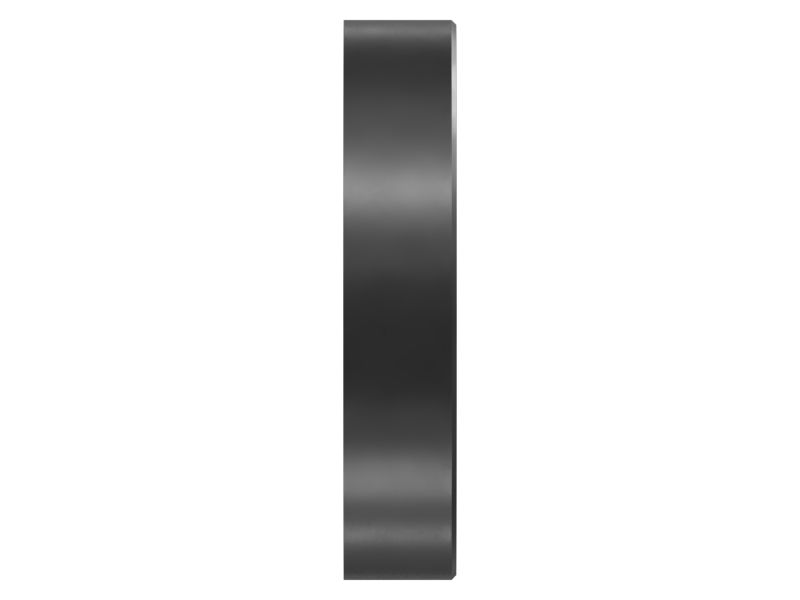

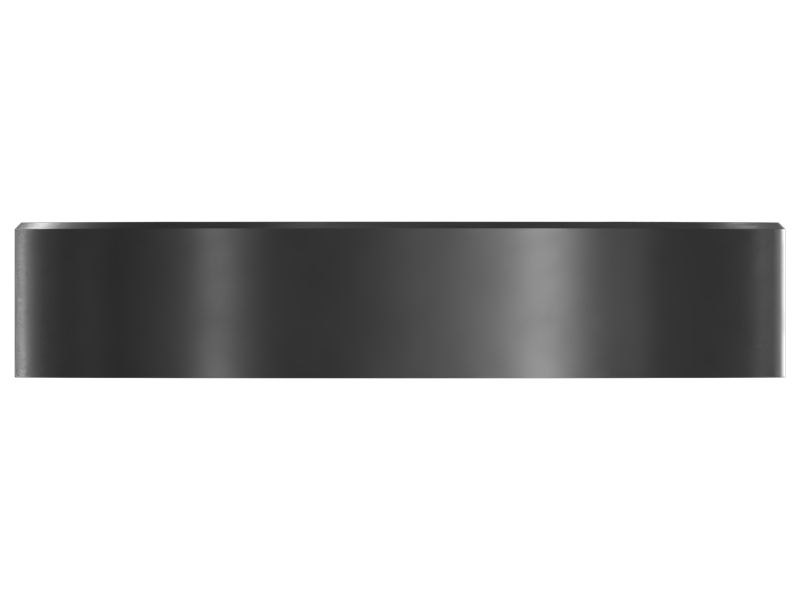

289-5146: Track Installation Contact Plate

The Track Installation Contact Plate is used during the assembly and maintenance of equipment tracks. It functions as the interface between the track and the equipment's undercarriage, ensuring proper alignment and secure attachment. This plate is used to handle the substantial forces and stresses associated with track installation, providing a stable foundation for the tracks by ensuring that the tracks are correctly positioned and securely fastened.

Attributes:
• Ensures accurate alignment of track components during installation.
• Provides a stable interface between the track and equipment.
• Facilitates smooth and accurate positioning of track segments.
• Reduces the risk of misalignment during track setup.

Applications:
The Track Installation Contact Plate is used during the assembly or maintenance of equipment tracks. It is located where the tracks attach to the undercarriage, ensuring proper alignment and secure installation.

• Hole Size (mm): 7.5

• Hole Size (in): 0.295

• Outer Diameter (mm): 95

• Outer Diameter (in): 3.74

• Width (mm): 19.05

• Width (in): 0.75

• Weight (kg): 0.815

• Weight (lb): 1.797

• Material: Steel,Coating Mixed
