284-9815: ВИНТ ОПОРНЫЙ

Description:

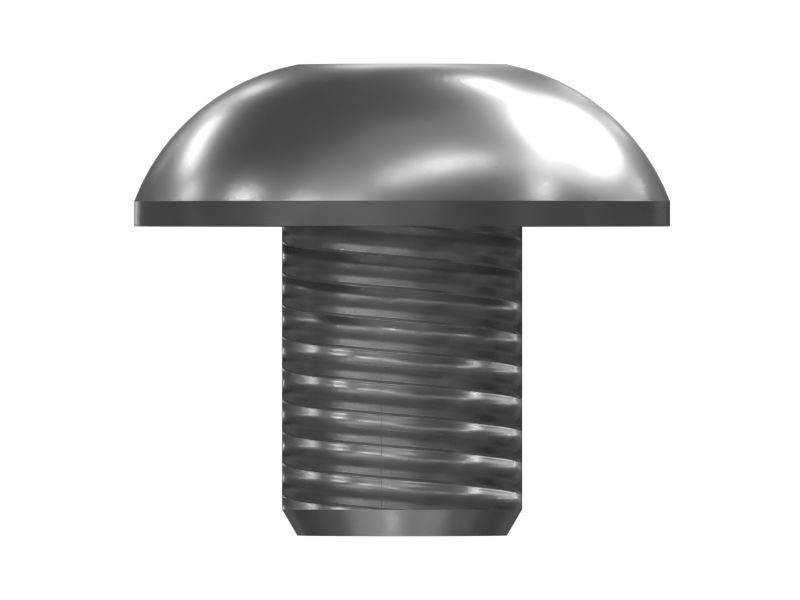

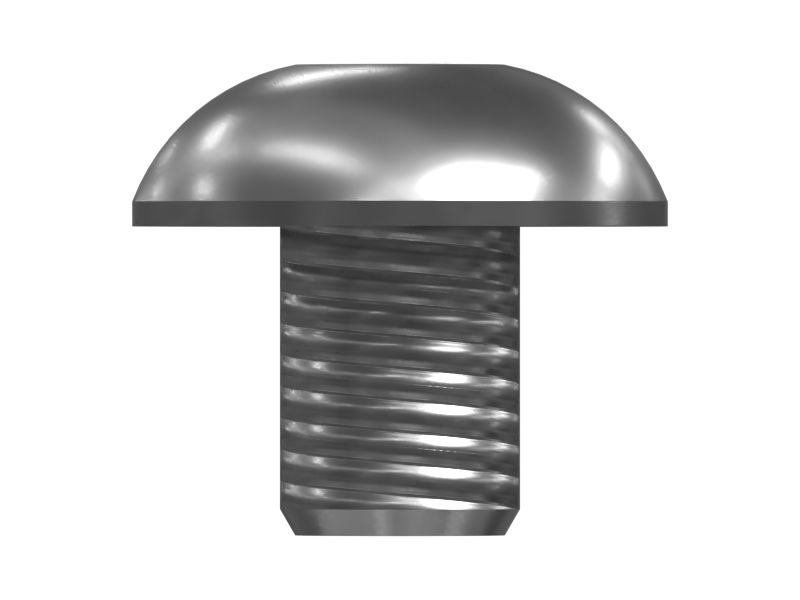

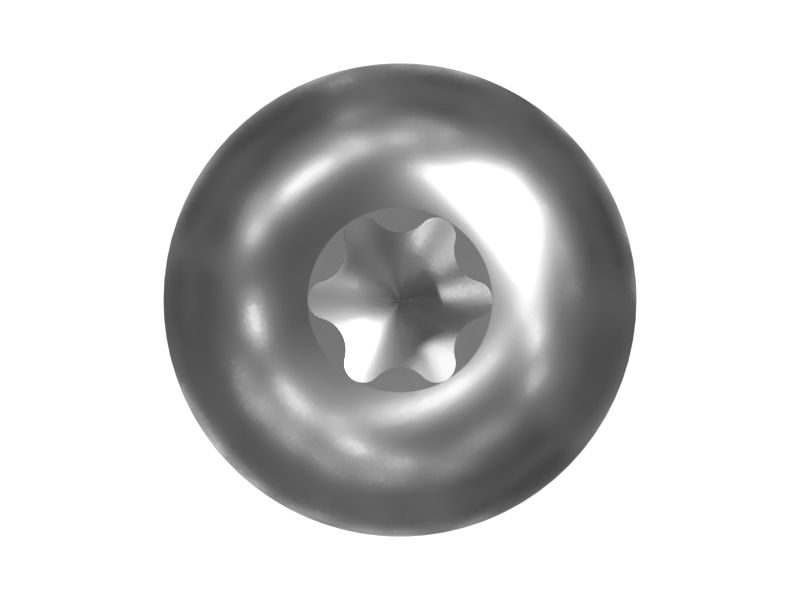

A truss head screw is a type of fastener designed to provide a low-profile, flush finish when installed. It consists of a rounded, dome-shaped head with a flat underside and a cylindrical shank. It is used to securely attach the seat frame or components to the machine's structure. The large, rounded head provides a wider surface area, distributing the load more evenly and reducing the risk of the screw damaging or sinking into the material.

Attributes:
• Designed to provide strength, corrosion resistance, and longevity.
• Designed to provide the necessary grip and retention.
• Withstands the demands of the automotive environment.

Applications:
A truss head screw provides a reliable and secure fastening, increased load-bearing capacity, and minimizes the risk of damage to the components. It is extensively used in Cat 120M Motor Grader, 621G, 621H, and 631G Wheel Tractor Scrapers, 953, 953D, 953K, 963, 963D, 963K, 973, 973D and 973K Track Loader, 953K Track Type Tractor, C13 Engine (Piston), CB2.5, CB2.7, CB2.9, CB22B, CB24B, CB32B, CB34B, CB36B, CB4.0, CB4.4, CC2.6, CC2.7, CC24B, CC34B and CC4.0 Compactor, M315D, M316D, M318D, M320D, M322D and M324D Excavators, M318D and M322D Material Handlers.

• Head Size (in): 0.7

• Material: Steel,Alloy Zinc,Alloy Steel,Low Alloy Steel,Corr

• Overall Length (in): 0.61

• Overall Length (mm): 15.5

• Weight (kg): 0.01

• Weight (lb): 0.02

• Thread Size (dia x pitch) (mm): M8x1.25

• Class or Grade: ISO 898-1 Class 10.9

• Coating: Zinc Flake-Black

• Hand of Thread: RH
