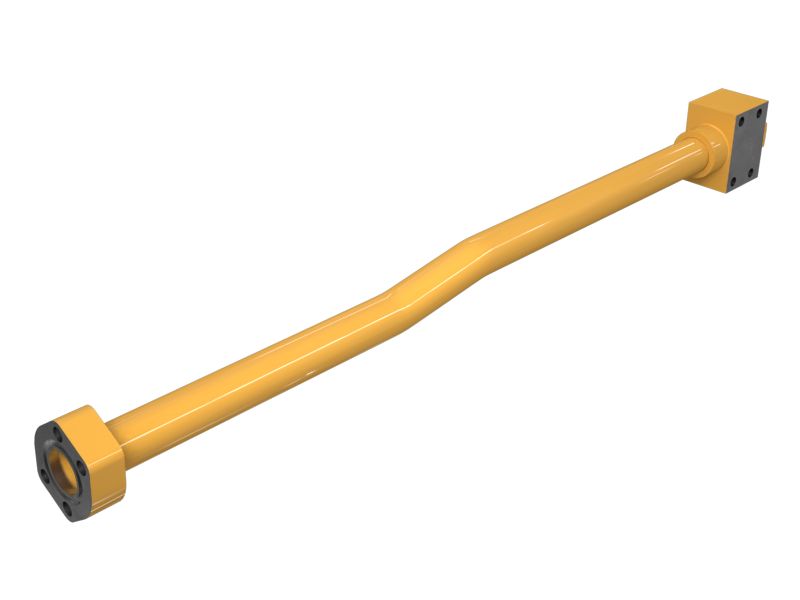

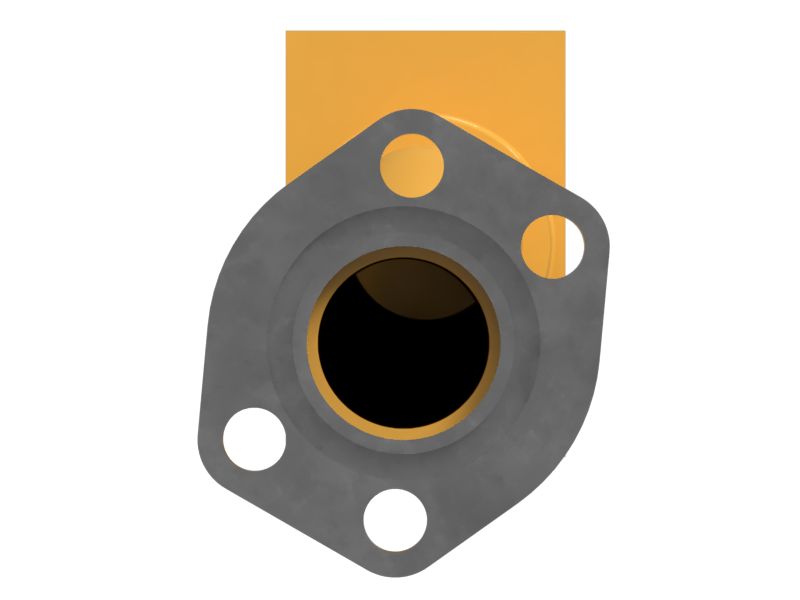

282-5320: ТРУБКА В СБОРЕ

The Draft Frame Lines Tube is designed to transmit hydraulic fluid throughout the draft frame system, this tube acts as a conduit, carrying pressurized fluid from the hydraulic pump to different hydraulic components such as cylinders, valves, and motors within the draft frame assembly. Its purpose is to enable the operation of hydraulic systems by transmitting fluid under pressure, which is necessary for powering different functions like lifting, tilting, and steering mechanisms.

Attributes:
• Withstands high pressure and abrasion.
• Resistant to wear and tear.
• Resilient to vibration and impacts.

Applications:
The Draft Frame Lines Tube is used to enable the efficient transmission of pressurized hydraulic fluid within the draft frame system to facilitate accurate and responsive operation of hydraulic functions like lifting and tilting in demanding operating conditions.

• Outer Diameter (mm): 38

• Outer Diameter (in): 1.5

• Approximate Overall Length (mm): 800
