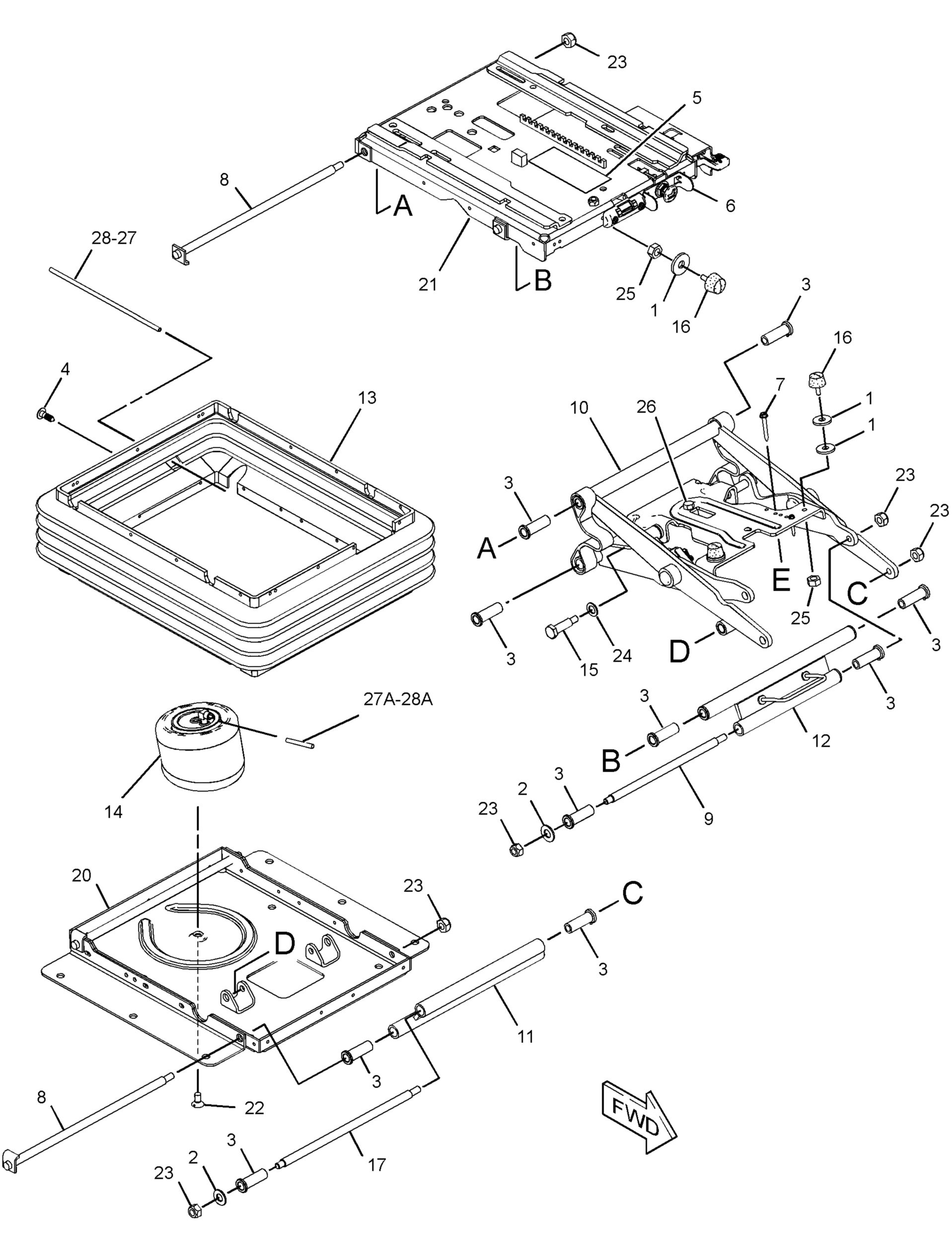

273-2820: БЛОК ПОДВЕСКИ

Description:
Cat seats are designed to provide an ergonomic seating option for machine operators. Suspension seats provide a shock absorbing suspension system and adjust for the operator’s convenience to hand and foot controls. Cat air suspensions use pneumatic actuators to move seats to reduce vibration and adjust seats. Cat service and replacement parts allow easy field service of Cat seating systems. Quality you expect for your equipment.

Attributes:
• Air suspension assembly
• Suspension cover
• Front mount ride zone indicator
• Adjustment mechanisms on the front-left
• Fore and aft adjustment
• Height adjustment
• Total travel stroke of 152 mm (6 in)

Application:
Used to service or replace the suspension assembly used on suspension seat systems in Cat machines. Consult your owner's manual or contact your local Cat Dealer for more information.

• Overall Height (in): 6.4 (Mid-Height)

• Material Description: Steel

• Overall Width (mm): 486

• Overall Length (mm): 445

• Overall Width (in): 19.1

• Overall Length (in): 17.5

• Overall Height (mm): 163 (Mid-Height)

• Material: Sealants / Adhesives Adhesive,Carbon Steel
