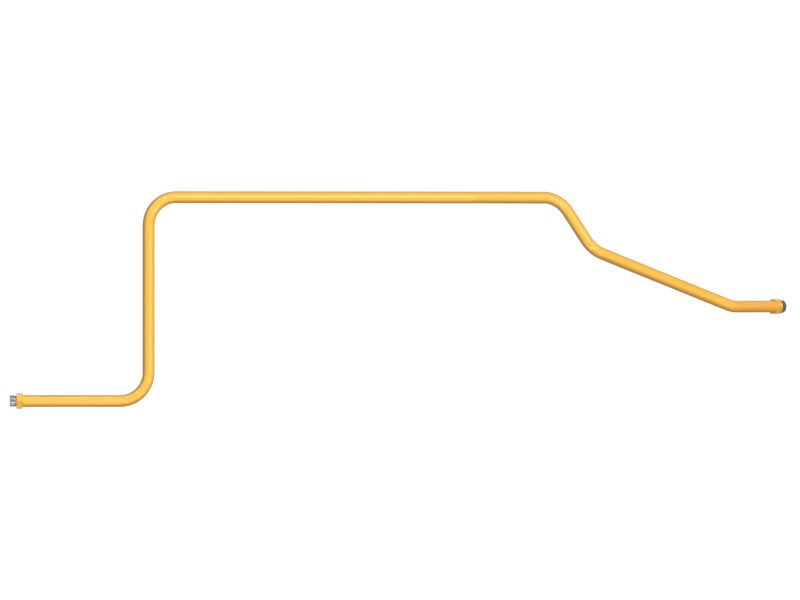

268-7109: ТРУБКА В СБОРЕ

An Auxiliary Hydraulic Lines Tube Assembly serves as a conduit for hydraulic fluid to auxiliary components such as attachments or implements. It ensures seamless fluid transmission, required for optimal performance. Functioning within a high-pressure environment, this tube withstands extreme conditions, contributing to the efficiency and reliability of the equipment. It features robust tubing designed to endure high-pressure hydraulic systems, ensuring reliable fluid transmission without compromise. The tube is intricately engineered with fittings and connectors, ensuring secure connections and minimal fluid leakage.

Attributes:
• Enabling accurate and efficient control of the boom's extension and retraction.
• Provides leak-proof connections.
• Maintains structural integrity under varying temperatures.
• Smooth inner surface for optimal flow.

Applications:
An Auxiliary Hydraulic Lines Tube Assembly is located at the equipment's reach boom and is responsible for transmitting pressurized hydraulic fluid to control auxiliary functions such as extending and retracting the boom and operating attachments.

• Outer Diameter (mm): 22

• Outer Diameter (in): 0.85

• Approximate Overall Length (mm): 2055

• Material: Steel
