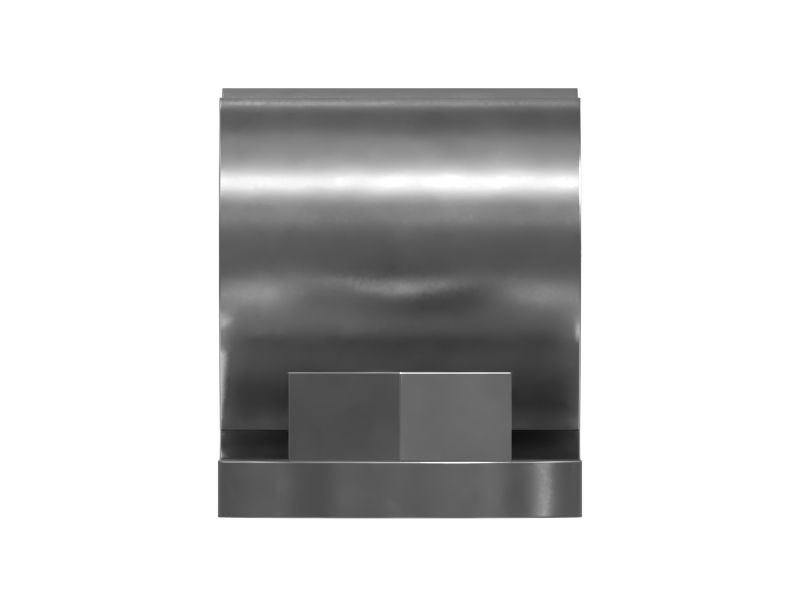

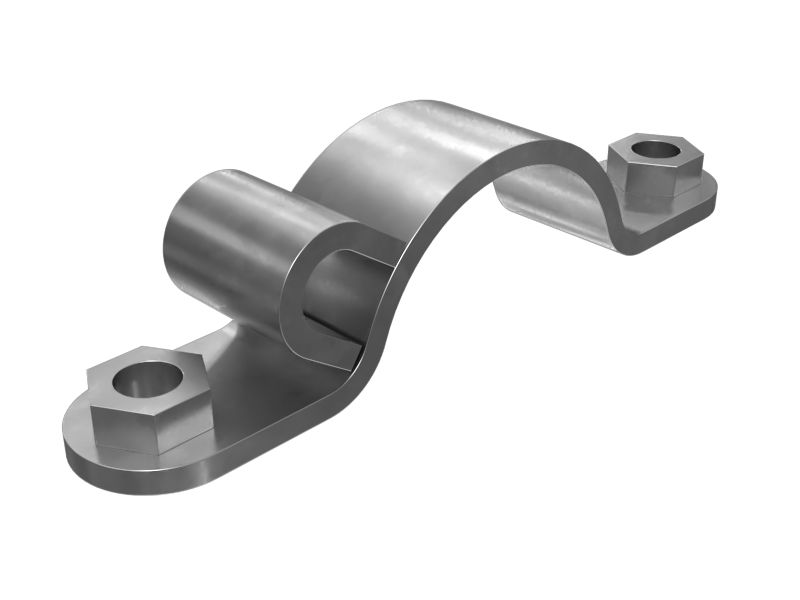

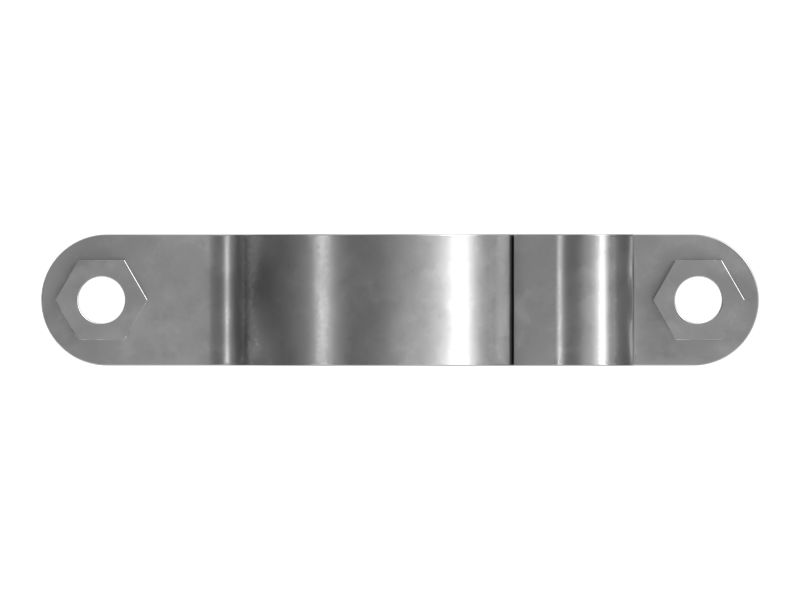

264-0450: ХОМУТ В СБОРЕ

A Single Tube Half Saddle Clamp is used to secure tubes in a fixed position. It has saddle that fits over the tube and a bolt or screw that tightens the saddle down onto the tube holding them securely in fixed place. This Clamp assembly consists of a saddle clamp, a hoop and two weld nuts that are welded with the Clamp for additional support. They are often used in situations where it is not possible or desirable to mount the tube directly to the surface, such as when the surface is uneven or irregular.

Attributes:
• Suitable to clamp tube with outer diameter of 57.2mm
• Provided with 2 weld nuts and a hoop to fit the fastener of size 3/8"
• Manufactured from steel which provides high strength and wear resistance.
• Provided a hoop with minimum weld length of 20mm, to lock the clamp from rotating or loosening.

Applications:
A Single Tube Half Saddle Clamp, along with the other half Clamp is used to hold or secure Tubes in Oil Lines with the help of hoop and fasteners.

• Distance between retainer holes (in): 4.68

• Distance between retainer holes (mm): 119

• Fits Bolt Sizes (in): 3/8

• Fits Bolt Sizes (mm): M10

• Inside Diameter (in): 2.25

• Inside Diameter (mm): 57.2

• Length (in): 5.62

• Length (mm): 143

• Material: Steel,Structural Steel,Carbon Steel,Alloy Mixed

• Material Thickness (in): 0.15

• Material Thickness (mm): 4

• Width (in): 1.02

• Width (mm): 26
