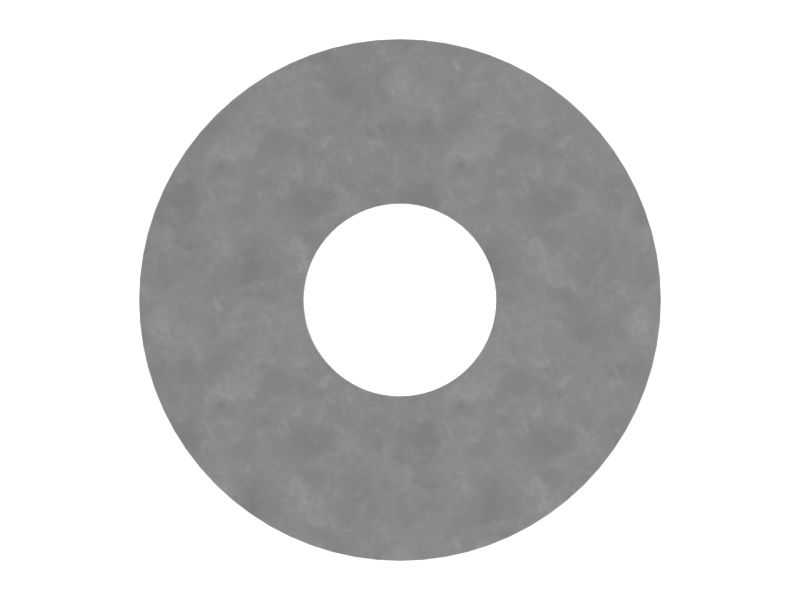

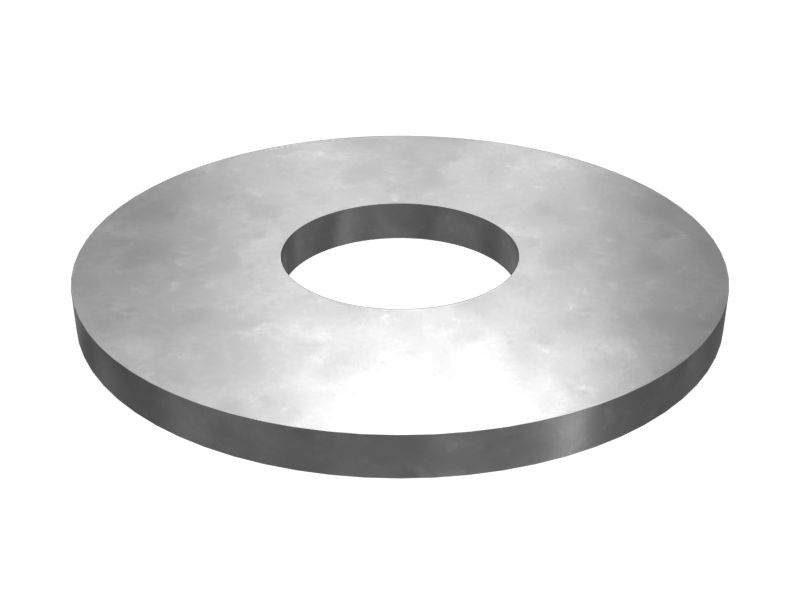

250-4456: ШАЙБА

A Bushing Support Washer acts as a flat disc that helps to reduce friction and protect the surfaces of the connected parts. The outer diameter of the washer is made to fit within the surrounding component, while the inner diameter accommodates the fastener passing through it. It is made up of strong and durable material, such as steel, to ensure strength and withstand high operating conditions.

Attributes:
• Evenly distribute the applied load over a larger surface area, reducing stress concentrations on the component
• Manufactured to precise specifications and are built for durability and reliability

Applications:
A Bushing Support Washer provides a bearing surface and prevents damage between two mating components in the radiator unit.

• Washer Type: Flat

• Inner Diameter (mm): 23

• Inner Diameter (in): 0.906

• Outer Diameter (mm): 62

• Outer Diameter (in): 2.441

• Coating: Zinc Phosphate + Oil

• Fits Bolt Sizes (mm): M22

• Fits Bolt Sizes (in): 7/8

• Material: Hardened Steel,Low Alloy Steel

• Material Description: Hardened Steel
