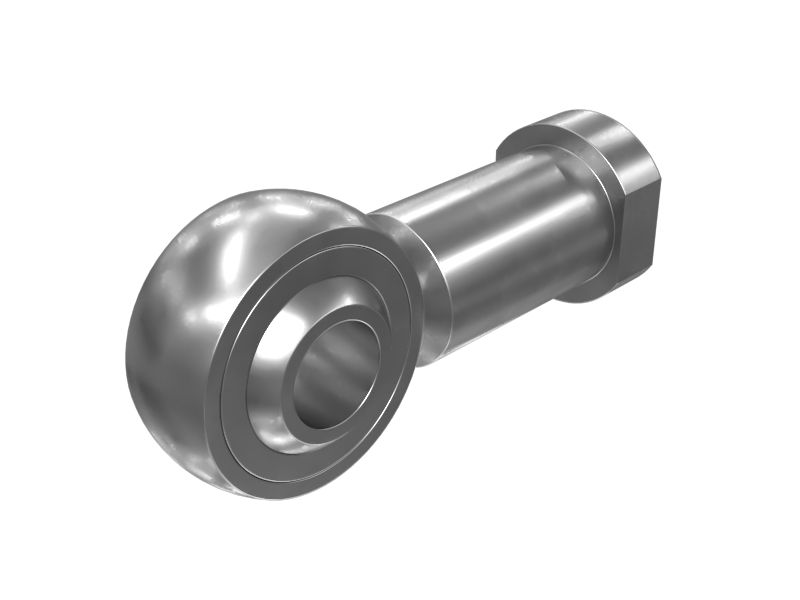

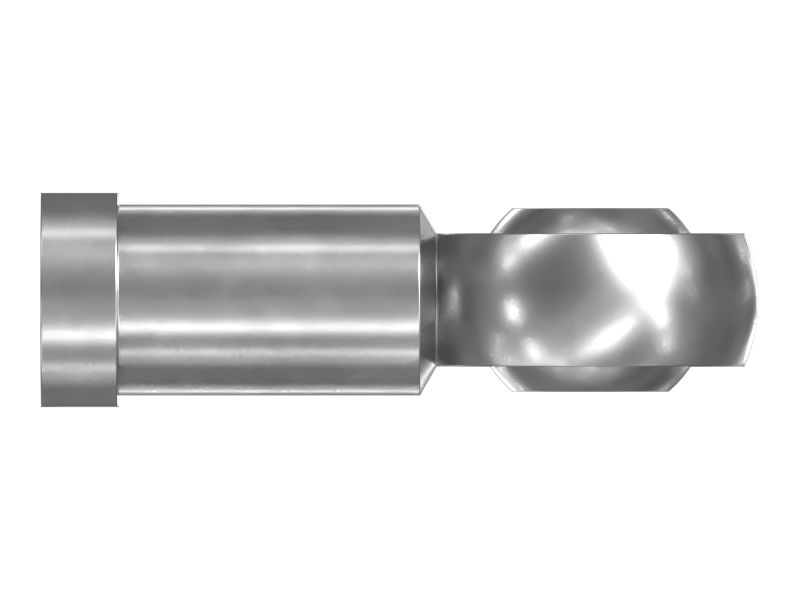

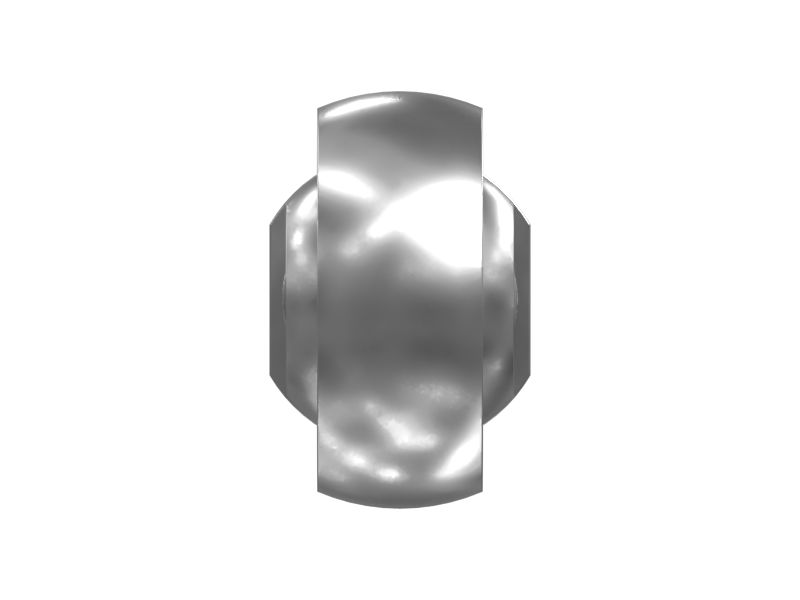

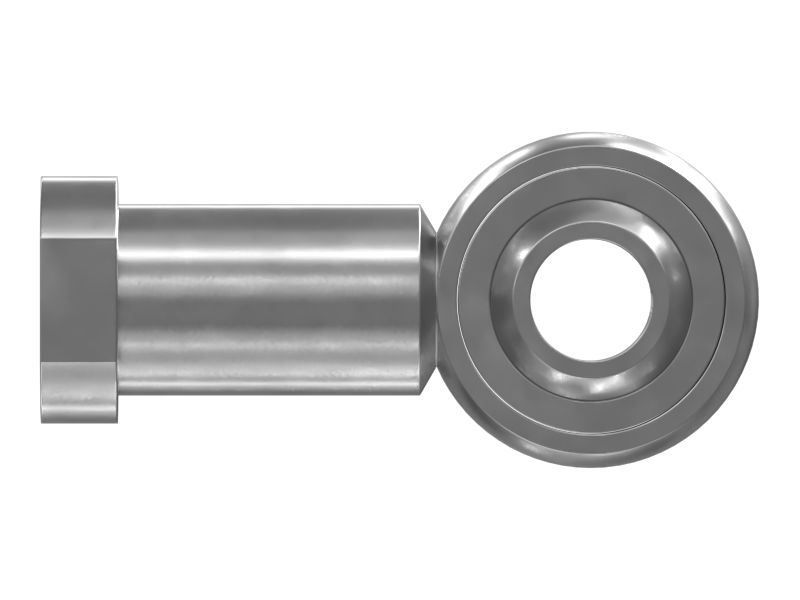

250-4151: НАКОНЕЧНИК ТЯГИ СПЕЦИАЛЬНЫЙ

Description:
Cat® spherical rod ends are manufactured for long service life, minimal maintenance, and high operational reliability. Spherical rod ends provide a mechanical articulating joint that accommodates oscillation during slow rotation. These joints also accommodate misalignment between the rod end and the attached shaft. Spherical rod ends consist of an eye-shaped head with an integral shank that forms the housing for a spherical bearing. Bearings reduce friction and provide protection between mating parts. They are specifically designed for low to medium speed, high load applications with little to medium side thrust.

Attributes:
• Length: 36
• Thread Size: M8
• Thread Length: 16 mm (0.629 in)
• Material: Steel
• Pivot Angle: 16°
• Large load capacity
• Easy mounting and dismounting
• Suitable for heavy static or alternate loads, and shock loads

Application:
Cat spherical rod ends are typically used in rod and linkage assemblies and control groups where strength and flexibility are crucial.

• Material Description: Steel

• Height - C (mm): 12

• Length to Pin Hole - A (mm): 36

• Rod End Diameter - B (mm): 22

• Rod End Type: Spherical

• Thread Size (mm): M8

• Thread Length (mm): 16

• Height - C (in): 12

• Length to Pin Hole - A (in): 1.417

• Rod End Diameter - B (in): 0.866

• Thread Length (in): 0.629

• Material: Alloy Steel
