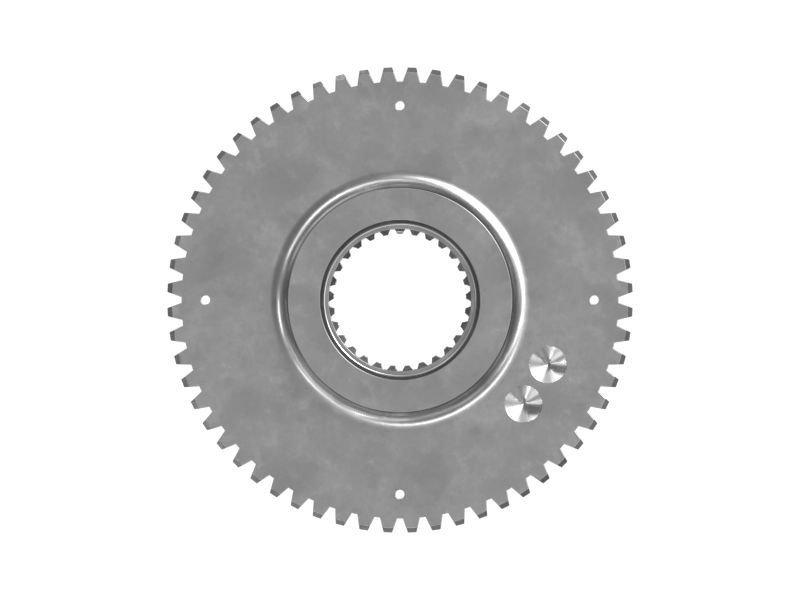

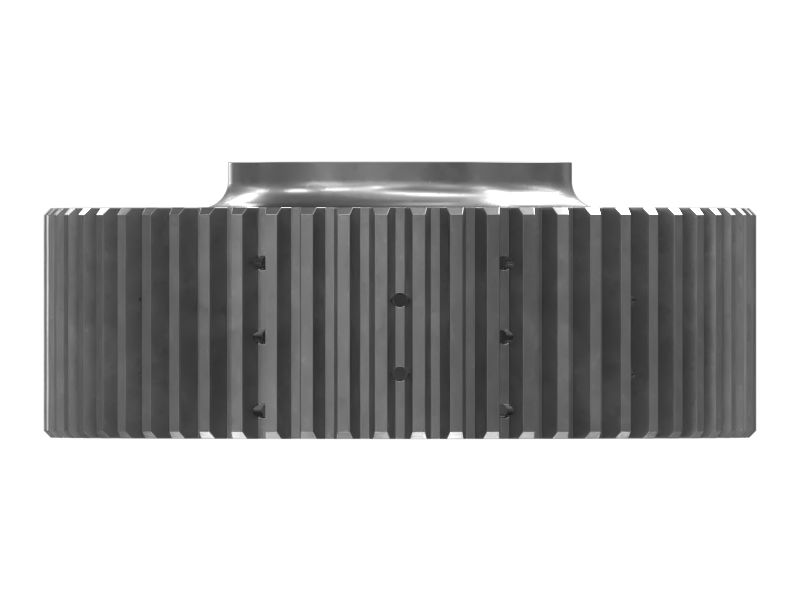

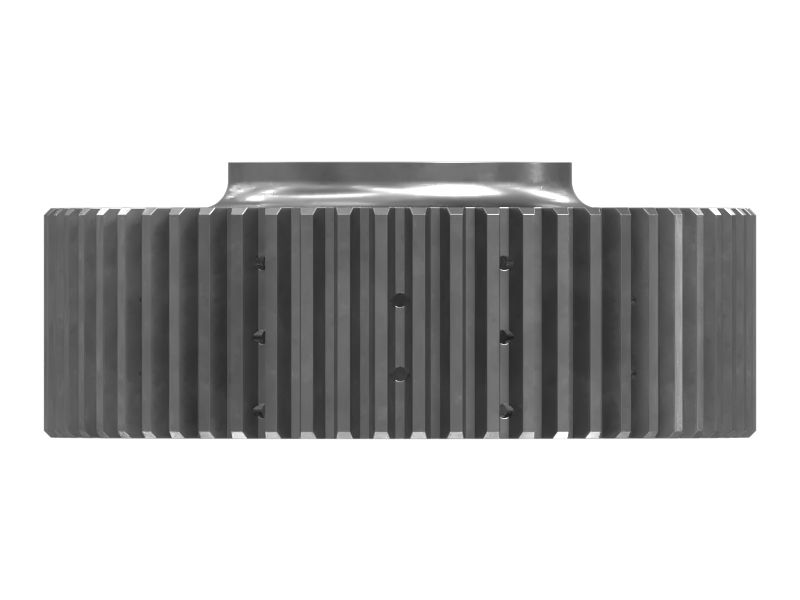

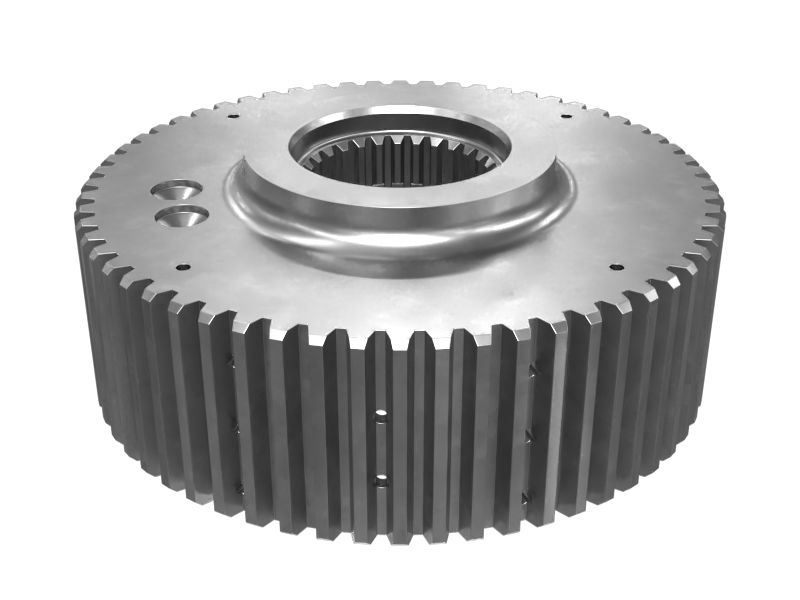

248-6271: СТУПИЦА МУФТЫ СЦЕПЛЕНИЯ

A Transmission Planetary Clutch Hub is used to engage and disengage the power transmission between the engine and the transmission. It is made from high-strength steel material to withstand harsh working conditions encountered during the operation. The primary purpose of the clutch hub is to allow for smooth gear shifting, ensure efficient power transfer, and minimize energy loss during transmission.

Attributes:
• Hardened with Rockwell 15N 85 MIN and Brinell 3.5-3.7 for resistance to deformation and wear
• Manufactured to precise specifications and are built for durability and reliability

Applications:
A Transmission Planetary Clutch Hub acts as an interface that allows for the transmission of torque and power between the engine and the transmission unit, maintaining the integrity and reliability

• Material Description: Steel

• Outside Diameter (mm): 155.54

• Inside Diameter (mm): 44.10

• Height (mm): 60.00

• Hole Size (mm): 3.2 (40X)

• Outside Diameter (in): 6.123

• Inside Diameter (in): 1.736

• Height (in): 2.362

• Hole Size (in): 0.125 (40X)

• Material: Low Alloy Steel
