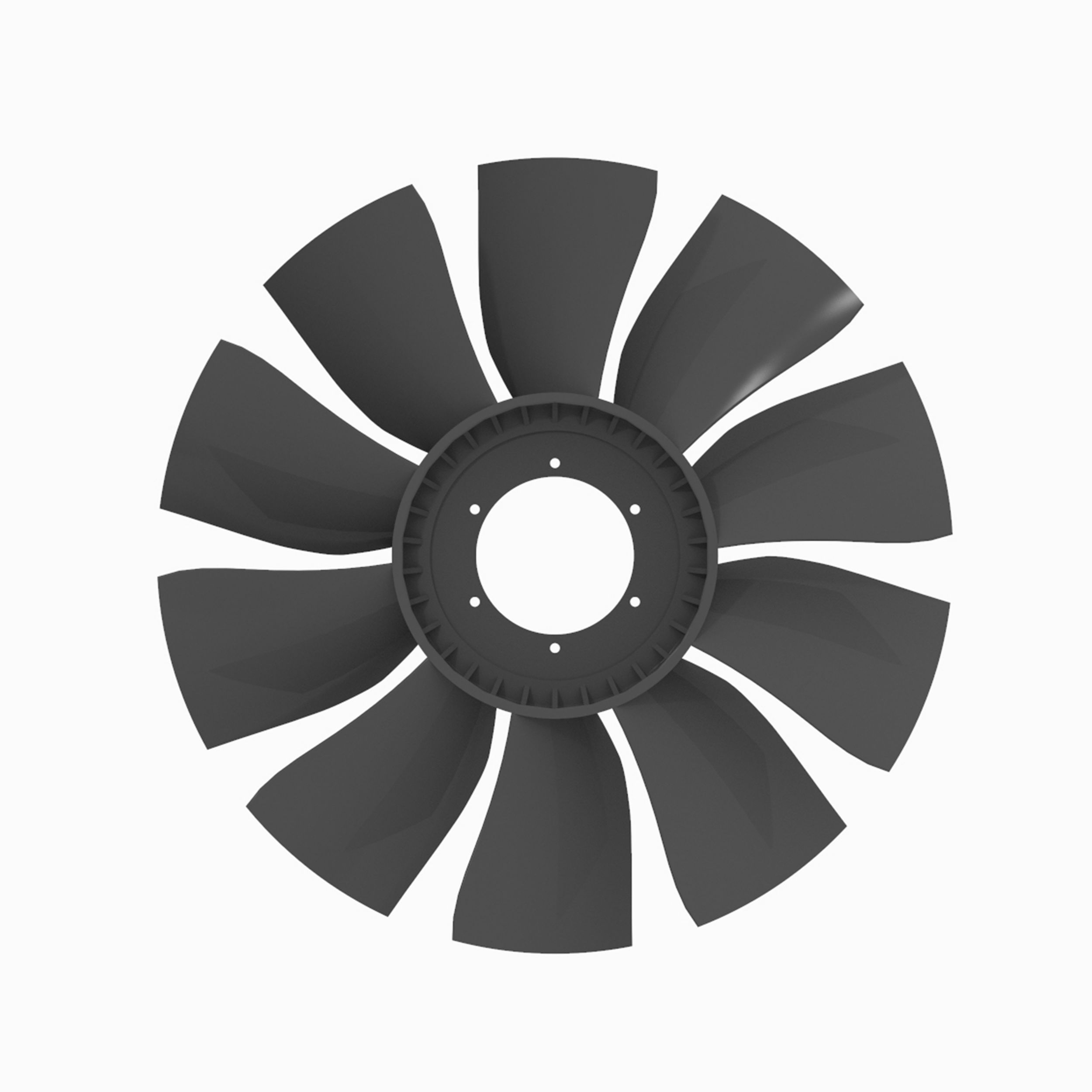

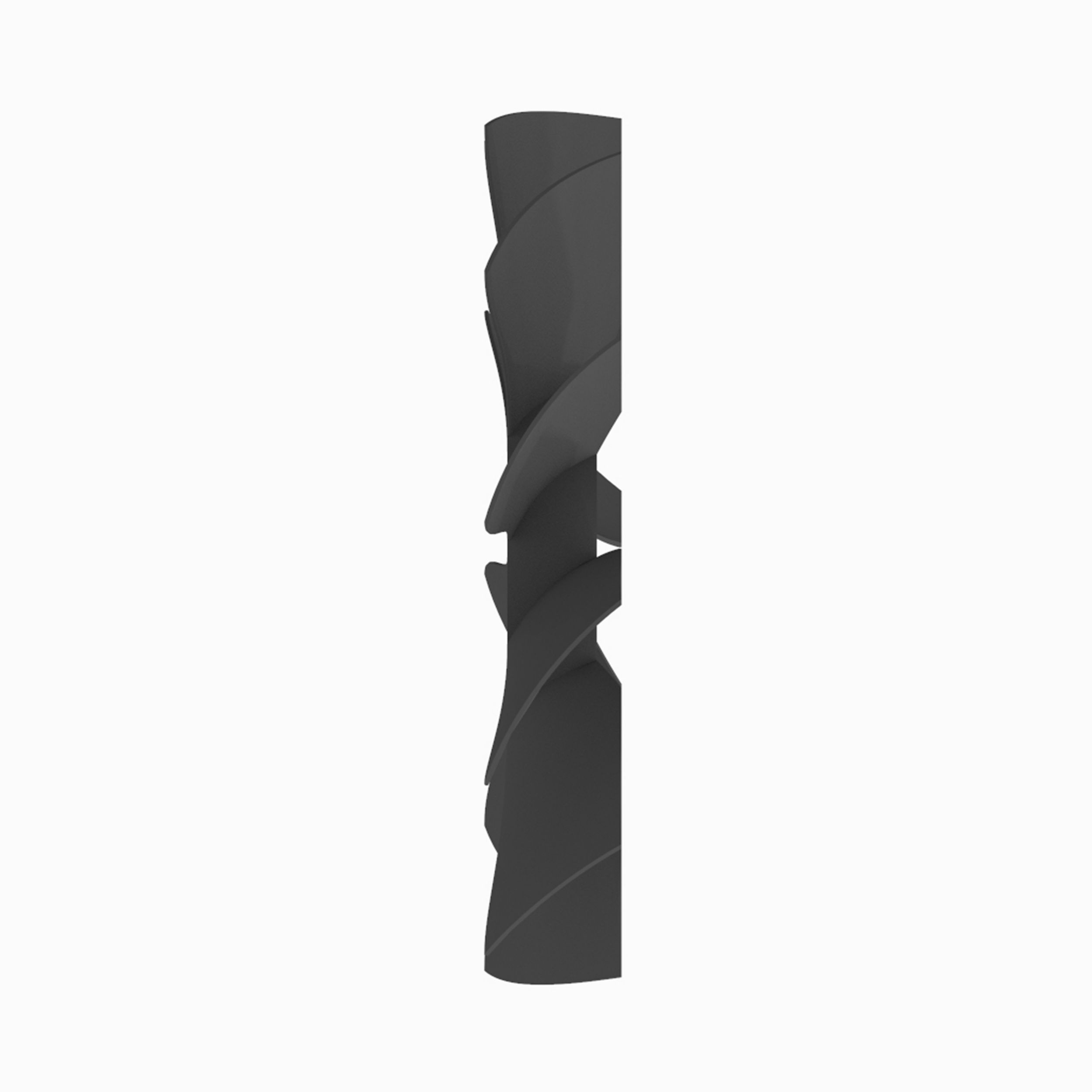

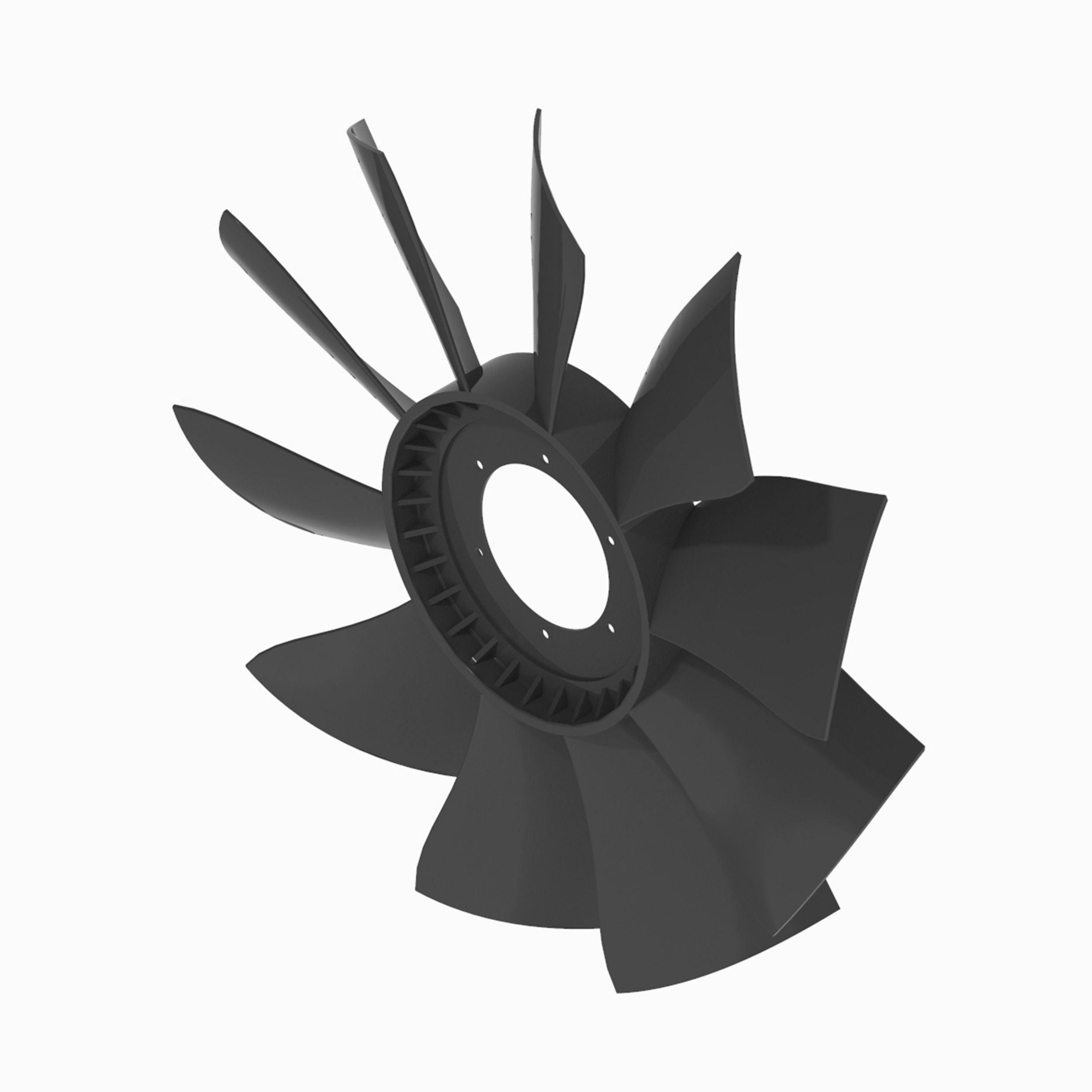

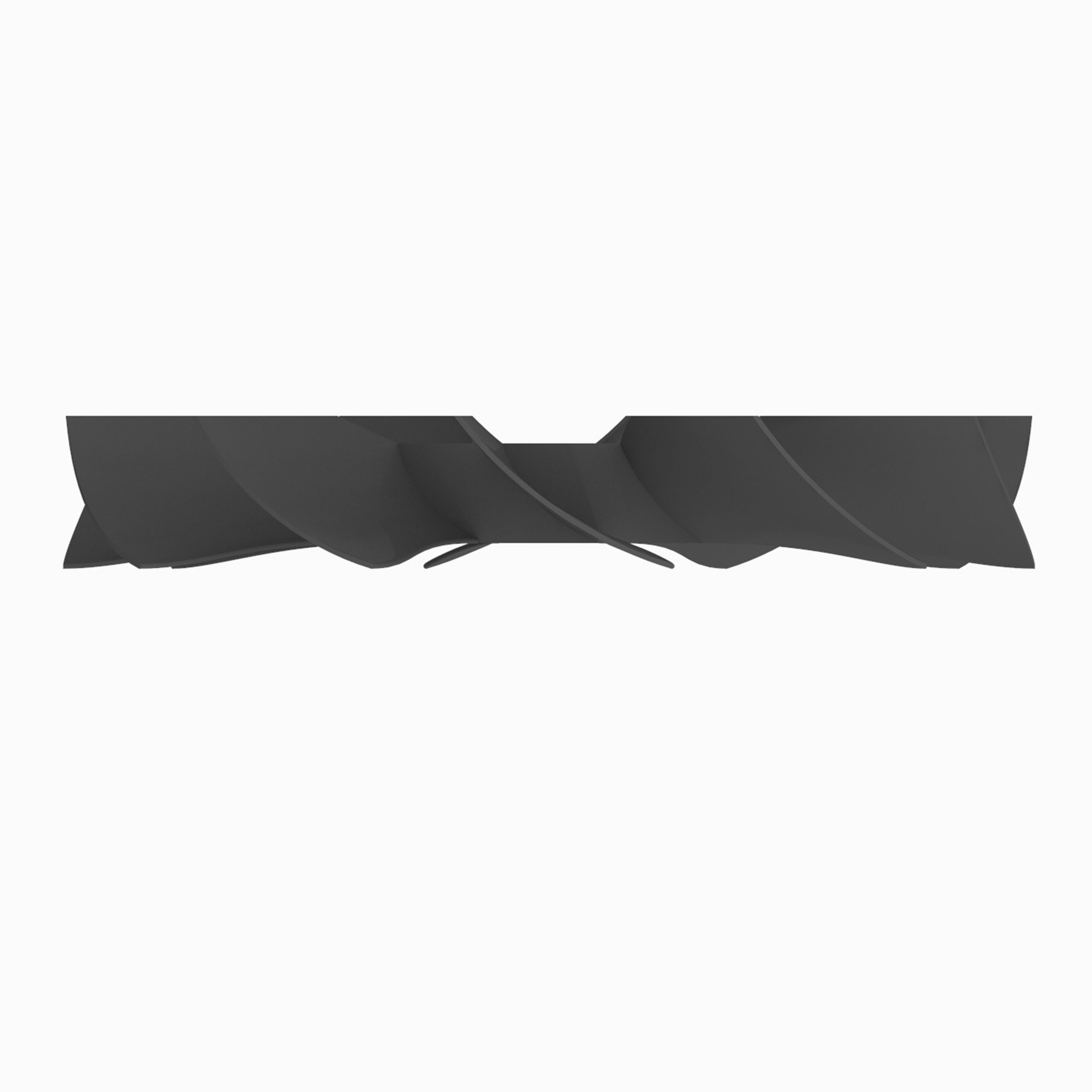

245-9343: ВЕНТИЛЯТОР В СБОРЕ

Description:
The Radiator Suction Fan used in a heater or air conditioner attachment is an axial flow type. The fan consists of several curved blades. It is designed to create a low-pressure zone at the center of the fan, which draws air into the device through an inlet. The shape of the fan blades increases the air pressure and velocity, creating a strong flow of air that can be directed to various parts of the engine, radiator attachment.

Attributes:
• Fan has 10 blades and it is made up of plastic material.
• Maximum imbalance of finished fan is 5.9 N.mm
• Manufactured to precise specifications and are built for durability, reliability, and productivity.

Applications:
The Radiator Suction Fan is used to ensure uniform air distribution to the radiator core, mostly used in Cat 320D FM, 320D, 320D GC, 320D L, 320D LRR, 320D RR, 321D LCR, 323D L Excavator.

• Material: Steel,Carbon Steel,Nylon, 6, 6/12, 6/6 Plastic

• Overall Diameter (in): 28.82

• Overall Diameter (mm): 732

• Overall Width (in): 4.53

• Overall Width (mm): 115

• Inner Diameter (mm): 145

• Weight (kg): 4.7

• Inner Diameter (in): 5.71

• Approx. Weight (kg): 4.7

• Weight (lb): 10.36

• Approx. Weight (lb): 10.36
